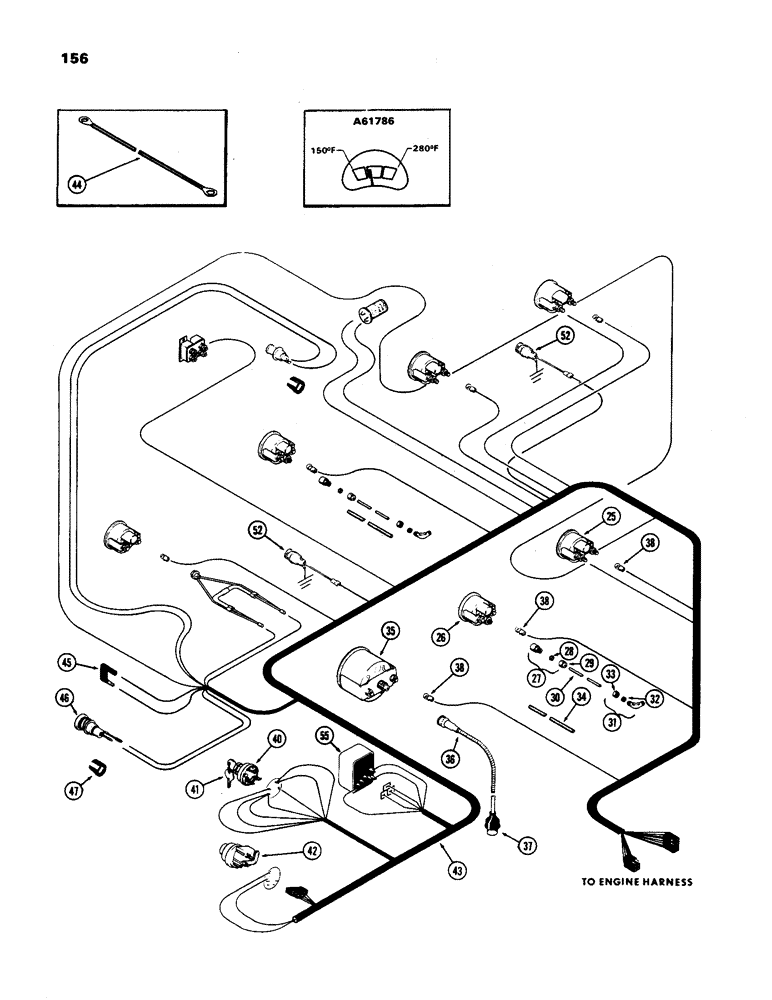

Запчасти Case IH 970 (156) - INSTRUMENTS AND WIRING, 377B SPARK IGNITION ENGINES (CONTD) (04) - ELECTRICAL SYSTEMS

25

A64491

ELECTRICAL GAUGE

GAUGE - transmission temperature (Replaces A59683)

1шт.

26

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure

1шт.

27

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSEMBLY - 1/8" tube, 1/8" PT, Includes: Ref. 28 & 29

1шт.

28

222-100

TUBE NUT,1/8" Tube

SLEEVE - for , 1/8" PT 1/8" Tube

1шт.

29

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

30

A59685

TUBE

- transmission pressure gauge

1шт.

31

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, 1/8" tube, 1/8" PT, Includes: Ref. 32 & 33

1шт.

32

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

33

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

34

A59686

LOOM

- transmission pressure gauge tube

1шт.

35

A62648

ELECTRICAL GAUGE

TACHOMETER ASSEMBLY

1шт.

36

A59691

CABLE

ASSEMBLY - tachometer drive, Includes: Ref. 37

1шт.

37

A24523

KIT

- tachometer cable repair

1шт.

38

A14553

BULB

- gauges

3шт.

40

A59693

SWITCH

ASSEMBLY - ignition and starting

1шт.

41

A60319

KEY

- ignition (Set of 2)

1шт.

42

REF

INSTRUCTION

SWITCH - light, See Figure 212

1шт.

43

A135869

HARNESS

- instrument panel wire (Used with turn signals)

1шт.

43

A61502

HARNESS

- instrument panel wire (Used without turn signal)

1шт.

44

A60882

STRAP

- instrument panel grounding

1шт.

45

A61504

DIODE

LEAD DIODE - 180 degree connection

1шт.

46

A61505

LAMP

- oil filter warning

1шт.

47

A62677

GUARD

SHROUD - oil filter warning lamp

1шт.

52

A77188

LAMP

ASSEMBLY - right and left turn indicator, Includes: bulb

2шт.

A44797

BULB

- lamp (green)

1шт.

A66892

ELECTRICAL WIRE

WIRE - signal lamp ground

2шт.

55

A77184

SWITCH

- combination dual-rate flasher and turn signal, See Figure 152

2шт.
