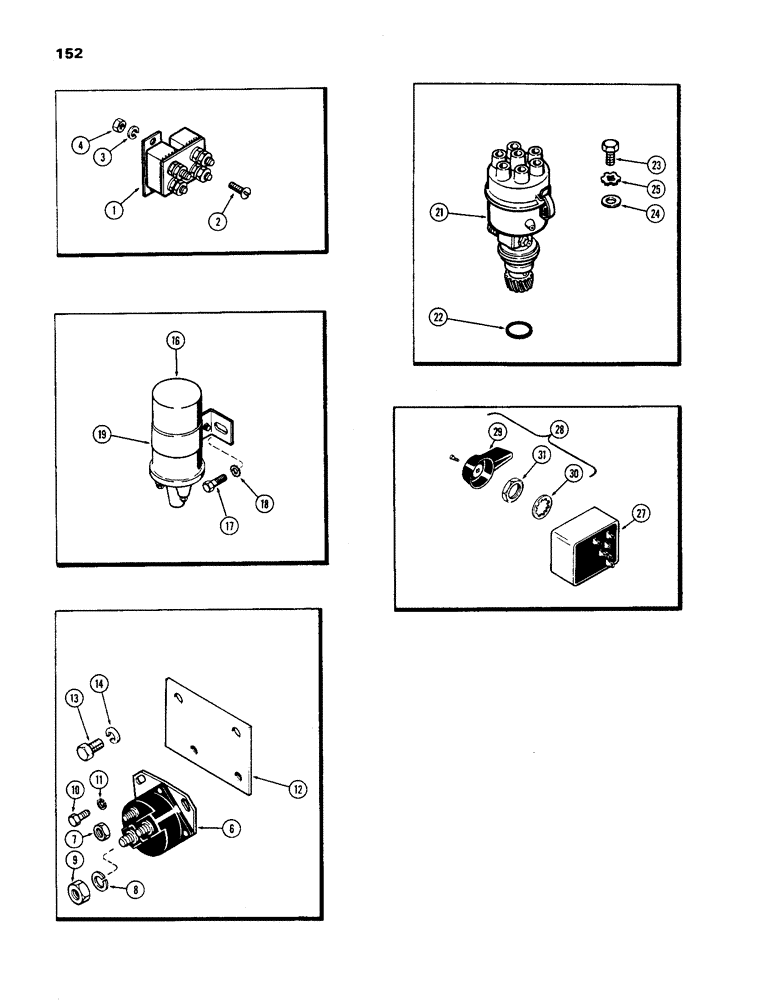

Запчасти Case IH 970 (152) - ELECTRICAL EQUIPMENT MOUNTING, 401B DIESEL AND 377B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A59704

BREAKER

- circuit, 80 ampere

1шт.

1

A147004

BREAKER

- circuit, 100 ampere

1шт.

2

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8 x 3/8" NC round head

2шт.

3

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

4

129-16

NUT,#8-32

2шт.

6

A39079

SOLENOID

- manifold heater

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex (Keps)

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

A60880

PLATE - heater solenoid to engine block

1шт.

13

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

16

A58811

COIL

- 12 volt

1шт.

17

173-252

SCREW,Sl Rnd Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" round head machinne

2шт.

18

193-45

WASHER,Ext-Int Tooth, 5/16"

- Shakeproof, 5/16" internal/external

2шт.

19

G46106

BRACKET

CLAMP - coil

1шт.

21

A58836

DISTRIBUTOR, See Figure 200

1шт.

22

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- distributor, 1-1/8 x 1-3/8 x 1/8"

1шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

24

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

25

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" internal/external

2шт.

27

A77184

SWITCH

- combination dual-rate flasher and turn signal

1шт.

28

A77185

KIT

PACKAGE - flasher and turn signal switch handle, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW - #5-40 x 3/8" pan head sems

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - Shakeproof, 3/4" internal

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - 3/4" NF hex

1шт.
