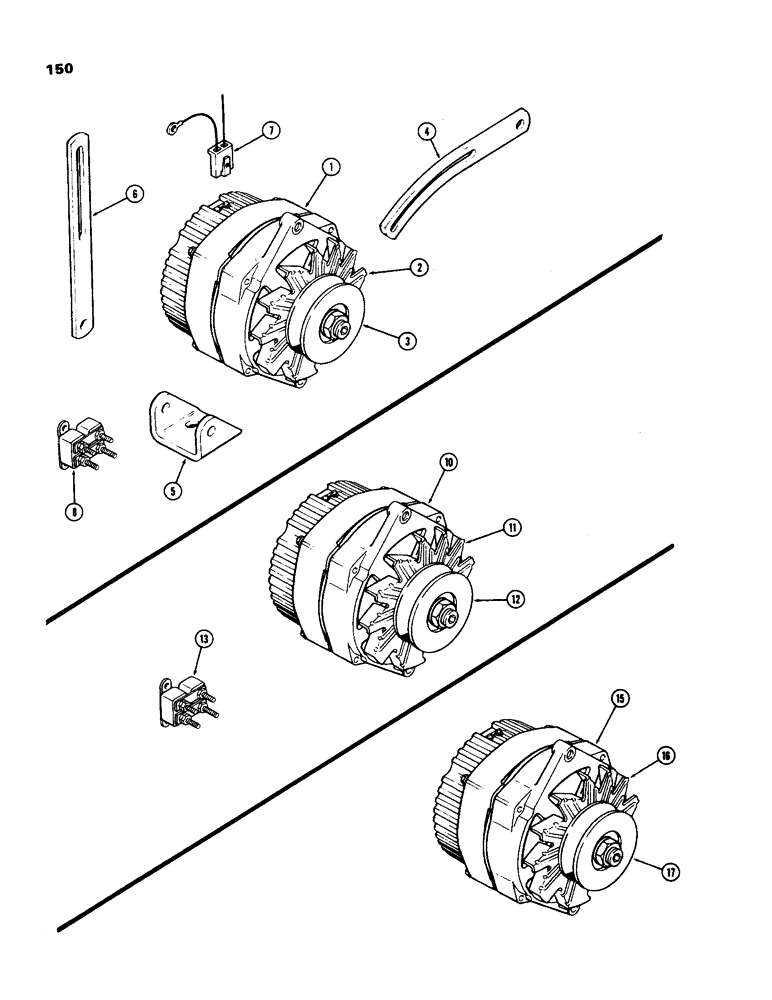

Запчасти Case IH 970 (150) - ALTERNATOR CONVERSION KIT, TO CONVERT A 55 AMP PRESTOLITE ALTERNATOR TO A 72AMP DELCO ALTERNATOR (04) - ELECTRICAL SYSTEMS

A147238

CONVERSION KIT

KIT - alternator conversion, Includes: Ref. 1 - 8

1шт.

1

A47044

ALTERNATOR

- 72 amp, See Figure 186

1шт.

2

A43384

FAN

- alternator

1шт.

3

A45231

PULLEY

- single groove

1шт.

4

A34705

ADJUSTER

STRAP - adjusting

1шт.

5

A38492

BRACKET

- mounting

1шт.

6

A59098

STRAP

- rear support

1шт.

7

A141700

WIRE HARNESS,Adaptor

- engine harness

1шт.

8

A147004

BREAKER

- circuit (100 AMP)

1шт.

A147239

KIT

- alternator conversion, to convert a 55 amp Delco to a 72 amp , Includes: Ref. 10 - 13

1шт.

10

A47044

ALTERNATOR

- 72 amp, See Figure 186, to convert a 55 amp Delco

1шт.

11

A43384

FAN

- alternator, to convert a 55 amp Delco to a 72 amp

1шт.

12

A45231

PULLEY

- single groove, to convert a 55 amp Delco alternator to a 72 amp

1шт.

13

A147004

BREAKER

- circuit (100 amp), to convert a 55 amp Delco alternator to a 72 amp

1шт.

A147240

KIT

- to convert a 61 amp Delco alternator to a 72 amp, Includes: Ref. 15 - 17

1шт.

15

A47044

ALTERNATOR

- 72 amp, See Figure 186, to convert a 61 amp Delco

1шт.

16

A43384

FAN

- alternator, to convert a 61 amp Delco to a 72 amp

1шт.

17

A45231

PULLEY

- single groove, to convert a 61 amp Delco alternator to a 72 amp

1шт.

A45231, SINGLE GROOVE PULLEY - 3.221 +/- .025 DIAMETER HUB OD 1.12 HUB ID AFTER PLATING .669 - .6720". bj 12-23-97

1шт.
