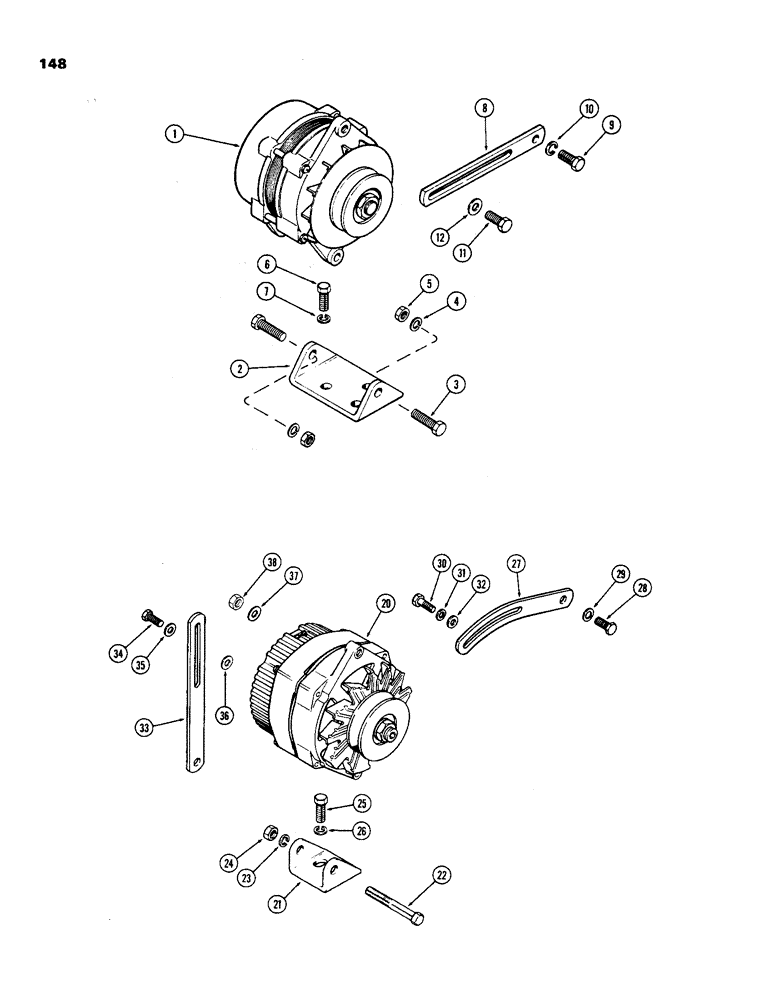

Запчасти Case IH 970 (148) - ALTERNATOR MOUNTING, (401B) DIESEL AND (377B) SPARK IGNITION ENGINES PRESTOLITE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, See Figures 192 - 198

1шт.

2

A61063

BRACKET

- alternator mounting

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

A59167

STRAP

- alternator adjusting

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, See Figures 186 - 190, delco-remy

1шт.

21

A38492

BRACKET

- alternator mounting, delco-remy

1шт.

22

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Delco-Remy Hex, 3/8"-16 x 3", G5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Delco-Remy 3/8"

1шт.

24

192-103

LOCK WASHER,#4

NUT - 3/8" NC hex, delco-remy

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Delco-Remy Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

Delco-Remy 3/8"

2шт.

27

A34705

ADJUSTER

STRAP - alternator adjusting (Replaces A135718), delco-remy

1шт.

28

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex, delco-remy

1шт.

29

92-6

LOCK WASHER,3/8"

Delco-Remy 3/8"

1шт.

30

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Delco-Remy

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Delco-Remy 5/16"

1шт.

32

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64", delco-remy

1шт.

33

A59098

STRAP

- alternator rear support, delco-remy

1шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Delco-Remy Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

35

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64", delco-remy

2шт.

37

192-17

LOCK WASHER,#12

Washer, Lock, , Delco-Remy #12

1шт.

38

129-18

NUT,#12-24

- hex, delco-remy #12-24

1шт.
