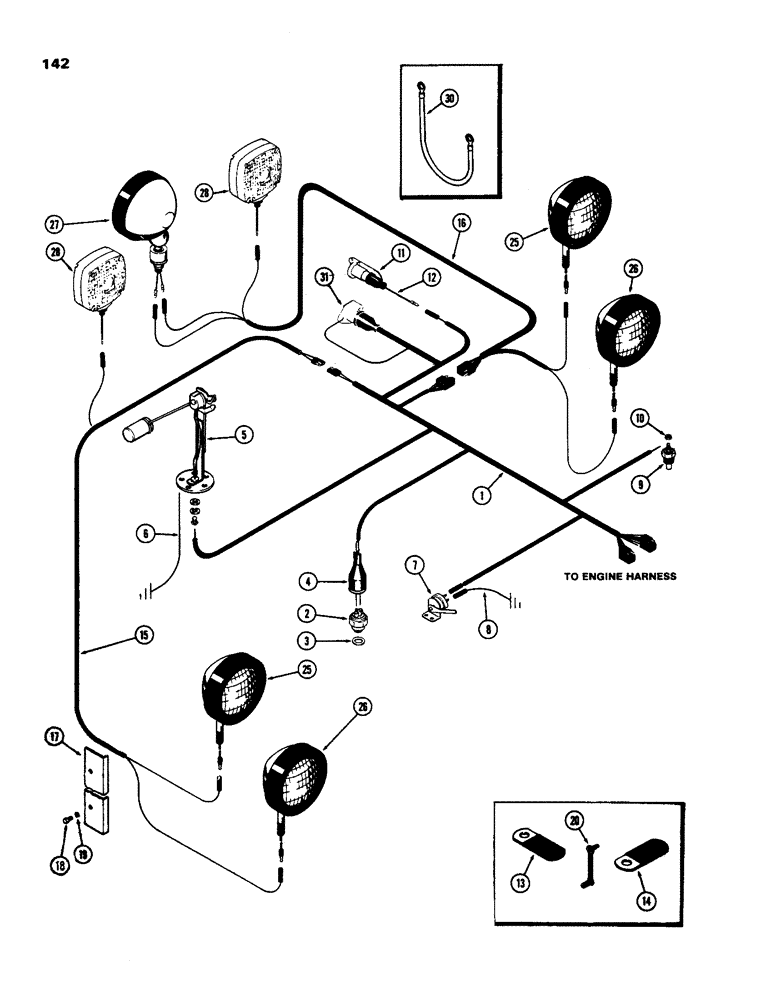

Запчасти Case IH 970 (142) - TRANSMISSION HARNESS, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A66899

HARNESS

- transmission wire (Used with turn signals and 7 point auxiliary outlet)

1шт.

1

A62413

HARNESS

- transmission wire (Used without turn signals or 7 point auxiliary outlet)

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

4

A61028

BOOT

- neutral start switch

1шт.

5

A62092

UNIT

- fuel sending (Replaces A61092) (Replaces A66643)

1шт.

6

A59710

ELECTRICAL WIRE

WIRE - fuel gauge sender ground

1шт.

7

A33977

SWITCH

- hand brake warning

1шт.

8

A59711

ELECTRICAL WIRE

WIRE - hand brake switch ground

1шт.

9

A21462

SENDER UNIT

UNIT - transmission temperature sending

1шт.

10

129-661

NUT

- #10 NF hex, brass

1шт.

11

A65059

SOCKET/RECEPTACLE

SOCKET - auxiliary outlet (Replaces A8170)

1шт.

12

A65060

ELECTRICAL WIRE

WIRE - auxiliary outlet

1шт.

13

A37179

CLIP

- transmission sending wire

1шт.

14

A22880

CLIP

- transmission wire harness and fuel sending unit

1шт.

15

A66910

HARNESS - fender wire, RH (Used with turn signals)

1шт.

15

A62412

HARNESS

- fender wire, RH (Used without turn signals)

1шт.

16

A66917

HARNESS

- fender wire, LH (Used with turn signals)

1шт.

16

A59709

HARNESS

- fender wire, LH (Used without turn signals)

1шт.

17

A59720

SHIELD - fender wire harness, LH (For 12" fender) (26-13/16" long)

1шт.

17

A59721

SHIELD - fender wire harness, RH (For 12" fender) (26-13/16" long)

1шт.

17

A60893

GUARD

SHIELD - fender wire harness, RH and LH (For 24" fender) (14-5/16" long)

2шт.

18

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

A62547

CLAMP

- fender, Serial Range: wires-fender

7шт.

25

REF

INSTRUCTION

LAMP - head, See Figure 208

2шт.

26

A59724

HEADLAMP

LAMP - front cultivator (for 12" fender), See Figure 210

2шт.

26

A59723

LAMP

- front cultivator (for 24" fender), See Figure 210

2шт.

27

A59703

LAMP

- rear flood and tail, See Figure 212

1шт.

28

REF

INSTRUCTION

LAMP - flasher, See Figure 202

2шт.

30

A64704

STRAP

- ground, firewall (20" long)

1шт.

31

A38739

CONNECTOR, ELEC

CONNECTOR - 7 point auxiliary outlet, See Figure 153 for attachment

1шт.
