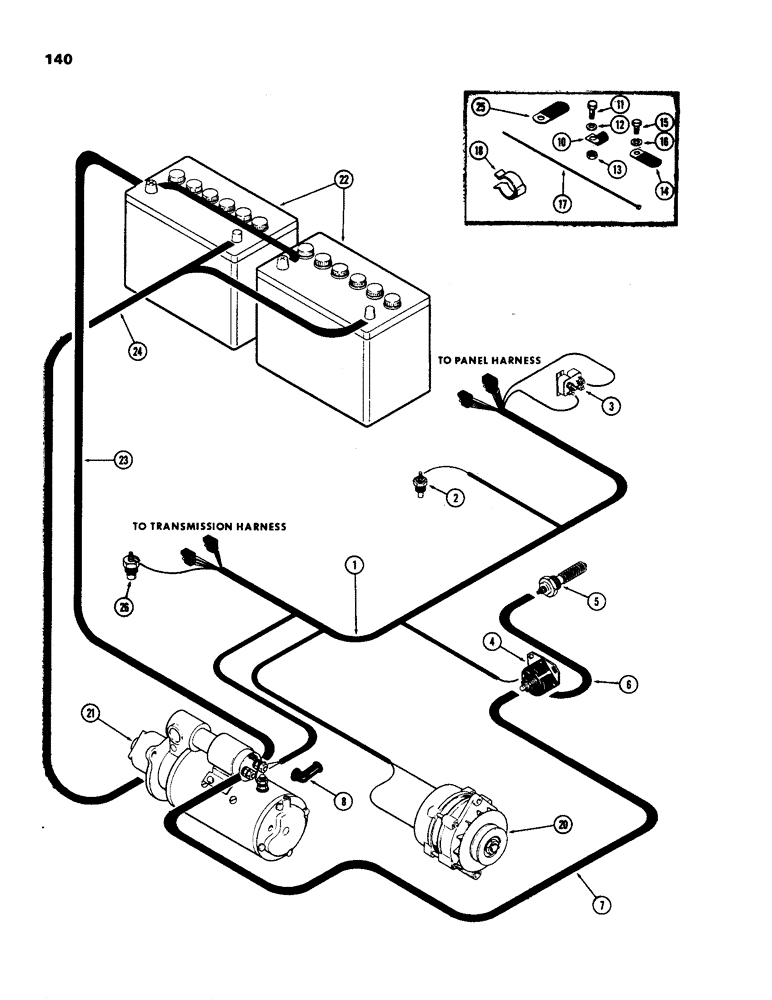

Запчасти Case IH 970 (140) - ENGINE HARNESS, (401B) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2529467 (04) - ELECTRICAL SYSTEMS

1

A63737

HARNESS

- engine wire (Replaces A65133)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending (with or without air conditioning)

1шт.

3

A59704

BREAKER

- circuit, See Figure 152

1шт.

4

A39079

SOLENOID

- manifold heater, See Figure 152

1шт.

5

A37775

HEATER

- manifold

1шт.

6

A61036

ELECTRICAL WIRE

WIRE - manifold, Serial Range: heater-solenoid

1шт.

7

A59713

ELECTRICAL WIRE

WIRE - heater, Serial Range: solenoid-starter

1шт.

8

A21753

CAP

- starter positive terminal and heater solenoid battery terminal (rubber)

2шт.

10

A59718

CLAMP

CLIP - engine wire harness

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

A37179

CLIP

- fender and alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - engine wire harness (Replaces L11541)

1шт.

18

A60894

CLIP

- alternator wire harness to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, See Figures 148 and 150

1шт.

21

REF

INSTRUCTION

STARTING MOTOR, See Figure 146

1шт.

22

A38411

DRY BATTERY

- 12 volt

2шт.

23

A62141

ELECTRIC CABLE

CABLE - battery, positive (Order A65817)

1шт.

24

A59728

CABLE

- battery, negative (ground)

1шт.

25

A22883

CLIP

- Battery cable

1шт.

26

A61463

SWITCH

UNIT - oil pressure sending

1шт.
