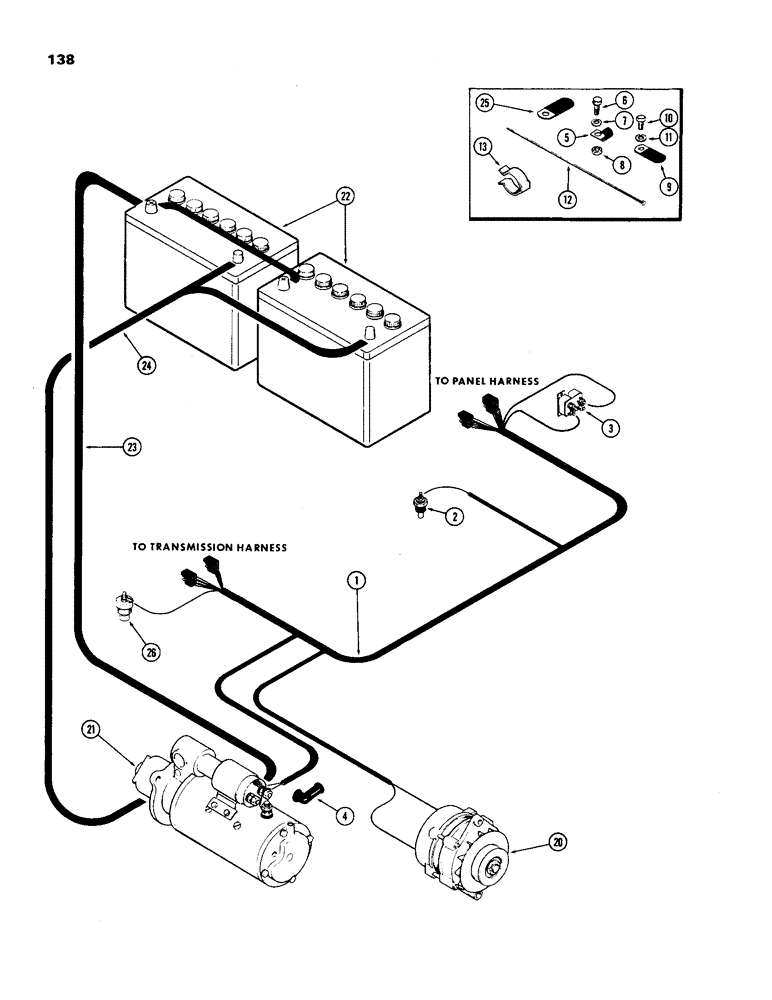

Запчасти Case IH 970 (138) - ENGINE HARNESS, (401B) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2529467 (04) - ELECTRICAL SYSTEMS

1

A135743

HARNESS

Engine wire (Used with Delco alternator) (Used with turn signal)

1шт.

1

A135744

HARNESS

Engine wire (Used with Delco alternator) (Used without turn signal)

1шт.

1

A65986

HARNESS

Engine wire (Used with Prestolite alternator) (Used without turn signal)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temp. sending

1шт.

3

REF

INSTRUCTION

BREAKER - circuit, See Figure 152

1шт.

4

A21753

CAP

Starter positive terminal

1шт.

5

A143668

CLIP

Harness

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

192-21

LOCK WASHER,3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

9

A37179

CLIP

Fender and alternator wires

1шт.

10

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Engine wire harness

1шт.

13

A60894

CLIP

Harness to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, See Figures 148 and 150

1шт.

21

REF

INSTRUCTION

STARTING MOTOR, See Figure 146

1шт.

22

A38411

DRY BATTERY

12 volt

2шт.

23

A65817

CABLE

Battery, positive

1шт.

24

A59728

CABLE

Battery, negative (ground)

1шт.

25

A22883

CLIP

Battery cable

1шт.

26

A61463

SWITCH

UNIT - oil pressure sending

1шт.
