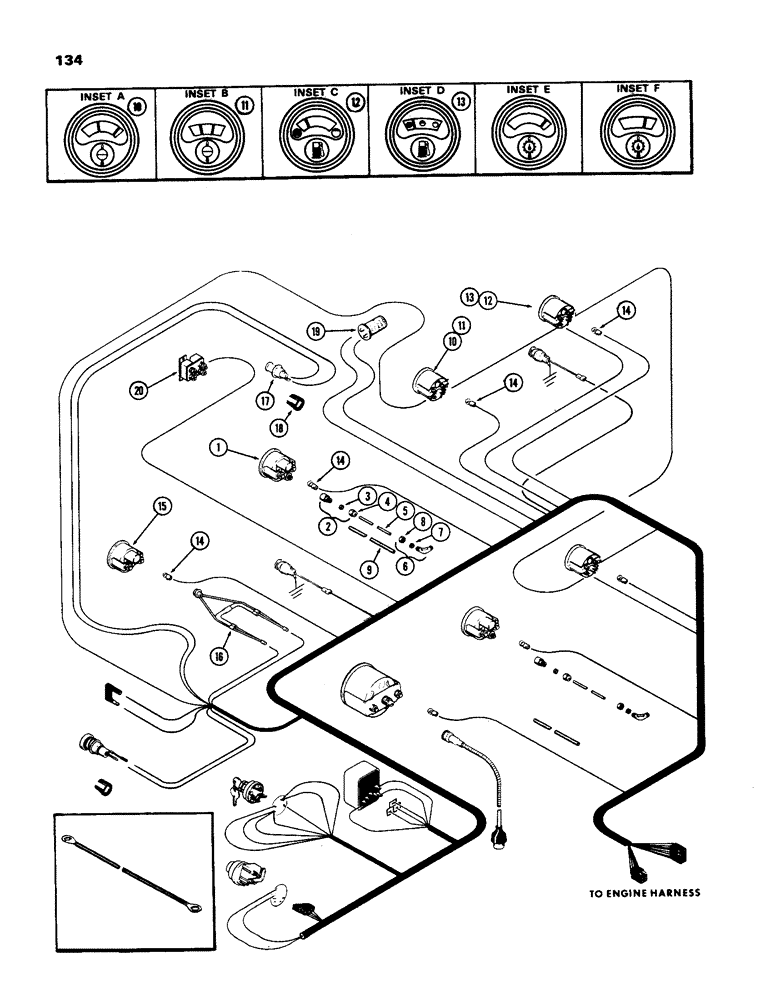

Запчасти Case IH 970 (134) - INSTRUMENTS AND WIRING, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR ASSEMBLY - 3/16" tube, 1/8" PT (used with A66386), Includes: Ref. 3 & 4

1шт.

3

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

4

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSEMBLY - 1/8" tube, 1/8" PT (used with A59679), Includes: Ref. 3 & 4

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8"tube

1шт.

5

A66386

TUBE

- eng. oil press. (3/16" OD) (1st used trac. ser. no. 8731789)

1шт.

5

A59679

TUBE

- engine oil pressure (1/8" OD) (used prior to trac. ser. no. 8731489) (Order 1-A66386, 1-222-11 and 1-222-41)

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSEMBLY - 90 degrees, 3/16" tube, 1/8" PT (used with A66286), Includes: Ref. 7 & 8

1шт.

7

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

8

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, 1/8" tube, 1/8" PT (used with A59679), Includes: Ref. 7 & 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

A143677

ELECTRICAL GAUGE

GAUGE - engine temp. (Replaces A61786) (See Inset A)

1шт.

11

A61786

ELECTRICAL GAUGE

GAUGE - engine temp. (Order A143677) (See Inset B)

1шт.

12

A143676

ELECTRICAL GAUGE

GAUGE - fuel lever (Replaces A59682) (See Inset C)

1шт.

13

A59682

ELECTRICAL GAUGE

GAUGE - fuel lever (Order A143676) (See Inset D)

1шт.

14

A14553

BULB

- gauges

4шт.

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button (used with mech. shift, without PTO), 2-9/16"

1шт.

15

A59687

DIAL

CASE - alternator warning lamp

1шт.

16

A137562

HARNESS

RECEPTACLE AND WIRE - alternator warning lamp (Replaces A59688)

1шт.

17

A59689

LAMP

ASSEMBLY - hand brake warning, Includes: bulb

1шт.

A42296

BULB

- 12 v. flasher red

1шт.

18

A62677

GUARD

SHROUD - hand brake lamp

1шт.

19

A65550

FLASHER UNIT

- 12 volt, with sealing gasket

1шт.

20

A147004

BREAKER

- circuit, 80 amp (Replaces A59704)

1шт.

Ref #20 - Use A147004 Breaker, 100 Amp 02/06/96

1шт.
