Запчасти Case IH 970 (132) - CARBURETOR, (377B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

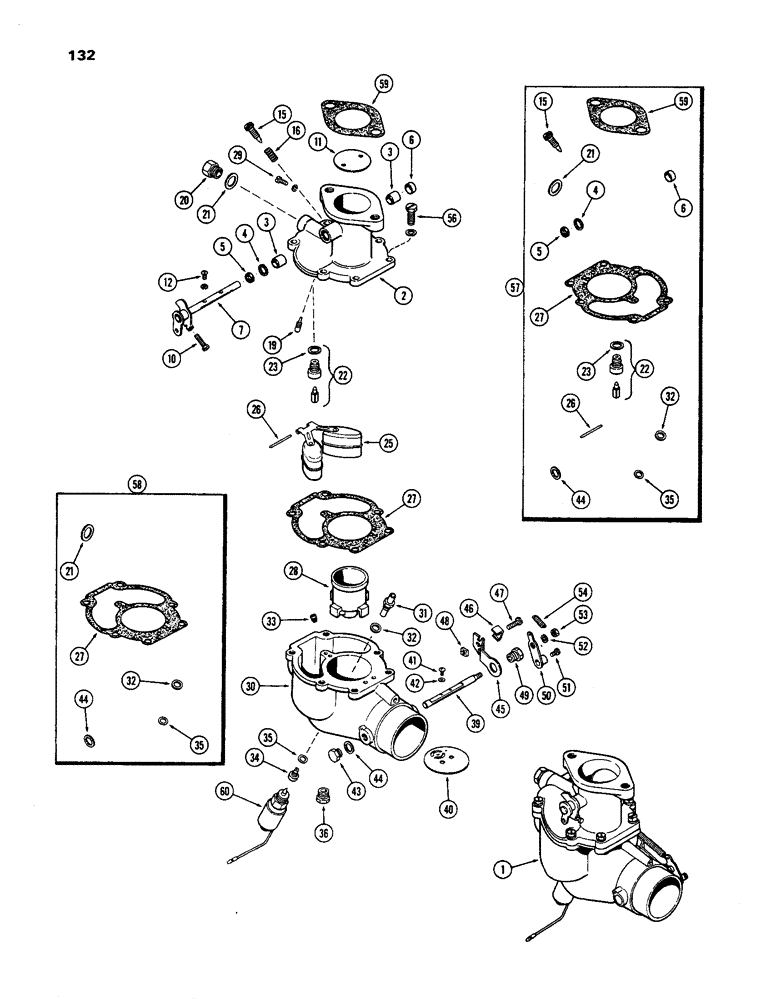

Схема запчастей Case IH 970 - (132) - CARBURETOR, (377B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
36
27
44
12
20
26
22
27
21
32
10
39
60
43
52
56
35
2
15
21
35
6
59
3
4
28
45
19
31
22
44
50
27
6
25
32
51
23
3
29
5
41
53
26
49
1
40
44
59
11
47
33
7
30
42
48
4
5
46
21
15
32
54
23
57
16
35
34
58

Артикул

Название

Примечание

Количество

1

A62521

CARBURETOR

ASSEMBLY - (Bendix #013478A), Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle (Order Ref. 1), Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - needle, throttle shaft

2шт.

4

A40007

SEAL

- throttle shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - throttle shaft seal

1шт.

6

B51438

PLUG

- throttle shaft hole

1шт.

7

A43372

SHAFT

LEVER AND SHAFT ASSEMBLY - throttle

1шт.

10

B51581

SCREW - lever

1шт.

11

A41359

PLATE - throttle

1шт.

12

A24888

SCREW - throttle plate

1шт.

15

B51263

SCREW

NEEDLE - idle adjusting

1шт.

16

B51407

SPRING

- idle needle tension

1шт.

19

B51301

JET

- idle

1шт.

20

A40319

CONNECTOR - fuel inlet

1шт.

21

B51614

WASHER

- filter

1шт.

22

A25577

VALVE

AND SEAT - fuel (matched), Includes: Ref. 23

1шт.

23

B51618

WASHER

GASKET - fuel valve

1шт.

25

A24891

FLOAT

- fuel

1шт.

26

B51429

AXLE

- float pivot

1шт.

27

A24889

GASKET

-, Serial Range: body-bowl

1шт.

28

A42421

VENTURI

1шт.

B51631

SCREW - Venturi

1шт.

30

A24892

BOWL - fuel

1шт.

31

A42423

JET - main discharge

1шт.

32

A24901

WASHER - discharge jet

1шт.

33

A24902

VENT - well

1шт.

34

A42422

JET

- main

1шт.

35

B51624

WASHER

- main jet

1шт.

36

B51541

PLUG

- bowl drain

1шт.

39

A24894

SHAFT - choke

1шт.

40

A24893

PLATE ASSEMBLY - choke

1шт.

41

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- choke plate, #6-32 x 1/4" rd. hd.

2шт.

41

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

43

B51449

PLUG

- choke shaft hole

1шт.

44

B51618

WASHER

- plug

1шт.

45

B51398

BRACKET ASSEMBLY - choke, Includes: Ref. 46 - 48

1шт.

46

B51402

CLAMP - choke cable

1шт.

47

B51581

SCREW - clamp

1шт.

48

129-76

SQUARE NUT,#8 - 36

- clamp screw

1шт.

49

B51455

SCREW - choke bracket

1шт.

50

B51379

LEVER ASSEMBLY - choke, Includes: Ref. 51

1шт.

51

A25179

SCREW - choke wire retaining

1шт.

52

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

53

129-36

NUT,#8-36

- choke lever retaining

1шт.

54

B51414

SPRING - choke lever return

1шт.

56

A24890

SCREW -, Serial Range: bowl-body

6шт.

57

A24905

KIT

REPAIR KIT - carburetor, Includes: Ref. 58 & 59

1шт.

58

A24904

KIT

GASKET KIT - carburetor

1шт.

59

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

60

A33219

SOLENOID

ASSEMBLY - carburetor cut-off

1шт.

Выбрано товаров: 50
