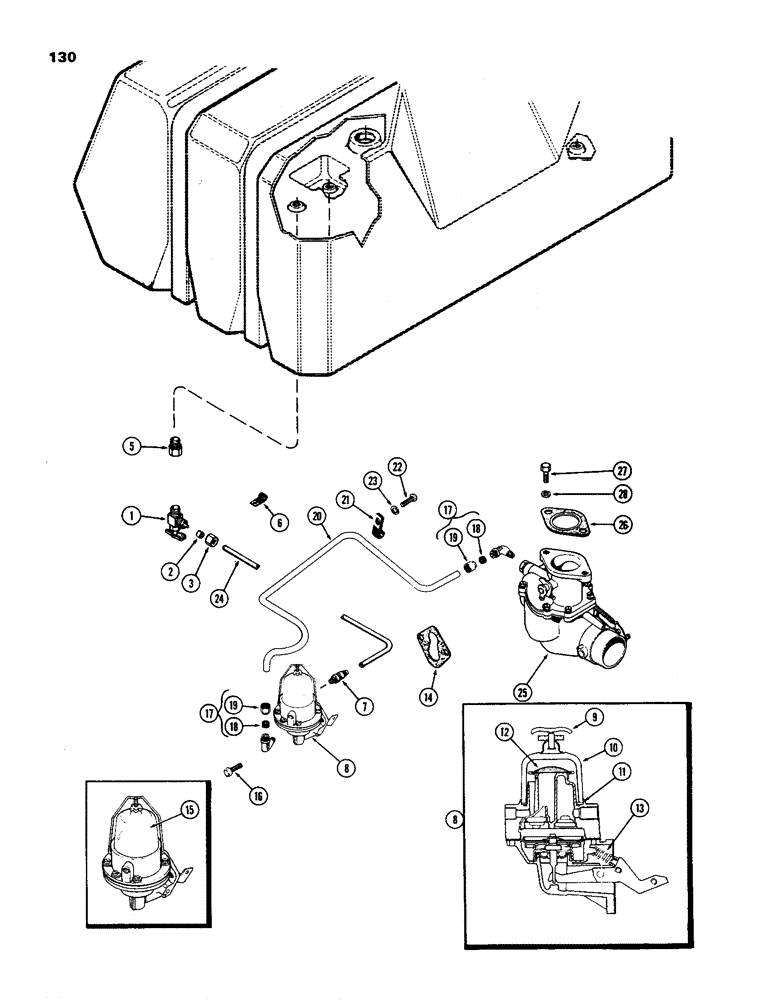

Запчасти Case IH 970 (130) - FUEL PUMP AND LINES, (377B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A62354

VALVE

ASSEMBLY - outlet and shut-off, Includes: Ref. 2 & 3

1шт.

2

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

3

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

5

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- outlet, 1/4 x 1/4"

1шт.

6

A57061

CLIP

- tube

1шт.

7

222-5112

FITTING,9/16"-24 x 1/4" NPTF

CONNECTOR

1шт.

8

A42434

PUMP

ASSEMBLY - fuel, Includes: Ref. 9 - 14

1шт.

9

A42435

BAIL - fuel pump

1шт.

10

A42436

BOWL

- fuel pump (Glass) (See Ref. 15)

1шт.

11

A42438

GASKET

-, Serial Range: bowl-body

1шт.

12

G10279

SCREEN - sedimentation

1шт.

13

A42439

SPRING - rocker arm

1шт.

14

A65561

GASKET

- pump to block (Replaces G46902)

1шт.

15

A42437

BOWL

- fuel pump (Metal Optional)

1шт.

16

113-123

BOLT,Locking, 5/16" - 18 x 1", Gr 5

- 5/16 x 1" NC hex, Nylock

2шт.

17

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 5/16" tube, pump to carburetor, Includes: Ref. 18 & 19

2шт.

18

222-103

SLEEVE,5/16" Tube

1шт.

19

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

20

A59100

TUBE -, Serial Range: pump-carburetor

1шт.

21

A7922

CLIP

- tube

1шт.

22

75-68

SCREW

- 3/8 x 1/2" rd. hd. mach.

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

A62027

TUBE

- outlet to fuel pump (Nylon)

1шт.

25

A62521

CARBURETOR

See Figure 132

1шт.

26

A27776

GASKET

-, Serial Range: carburetors-manifold

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

1шт.
