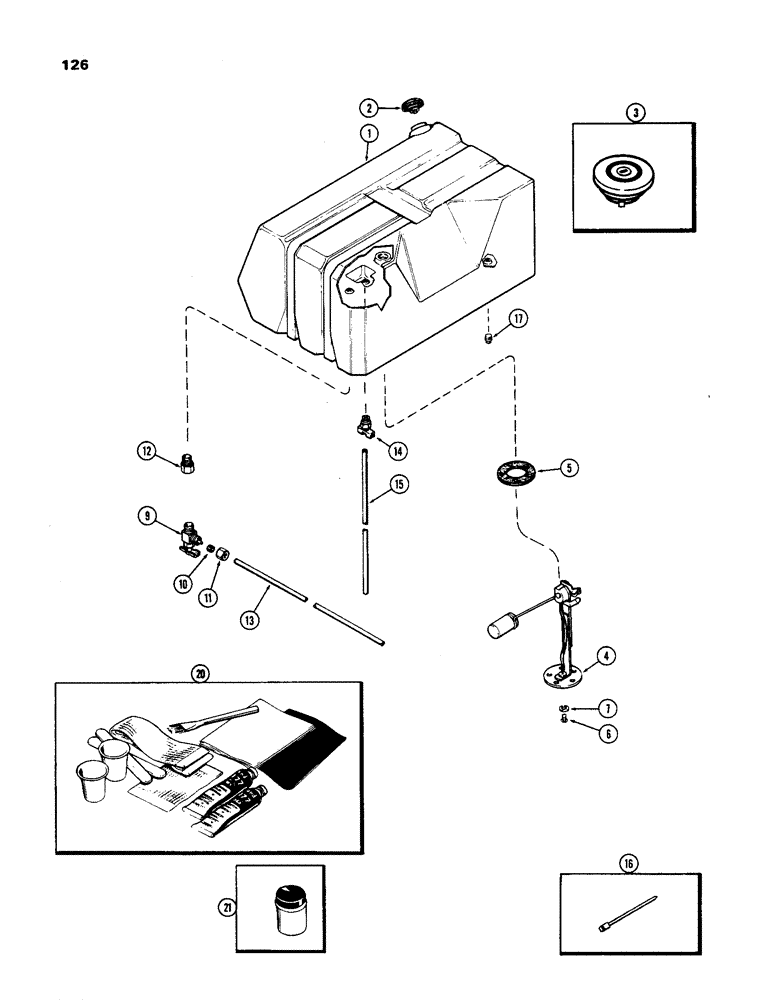

Запчасти Case IH 970 (126) - FUEL TANK AND LINES, (377B) SPARK IGNITION ENGINE, NYLON MATERIAL (03) - FUEL SYSTEM

1

A59490

FUEL TANK

TANK - fuel (Order 1-A143073 tank, and 1-222-5114 elbow)

1шт.

2

A32119

CAP

- fuel tank filler (without lock)

1шт.

3

A32120

CAP

- fuel tank filler (with lock)

1шт.

4

A62092

UNIT

- fuel gauge sending

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10 x 7/16" NF rd. hd. mach.

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

9

217-278

FITTING

VALVE - outlet and shut-off (Replaces A62354), Includes: Ref. 10 & 11

1шт.

10

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

11

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- 1/4 x 1/4"

1шт.

13

A62027

TUBE

- tank, Serial Range: outlet-engine

1шт.

14

217-107

VALVE

- drain (with 1/8" PT thrd.)

1шт.

15

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube (Replaces L11541)

2шт.

17

221-13

PLUG,Sq Hd, 3/8"-18

- 3/8" pipe

1шт.

20

A44265

KIT

- repair, Nylon tank (Replaces A42782) (also order A44266)

1шт.

Nylon tank is identified by 1/8" thread at drain and 3/8" thread at return port.

1шт.

21

A44266

KIT

- adhesive, tank repair

1шт.
