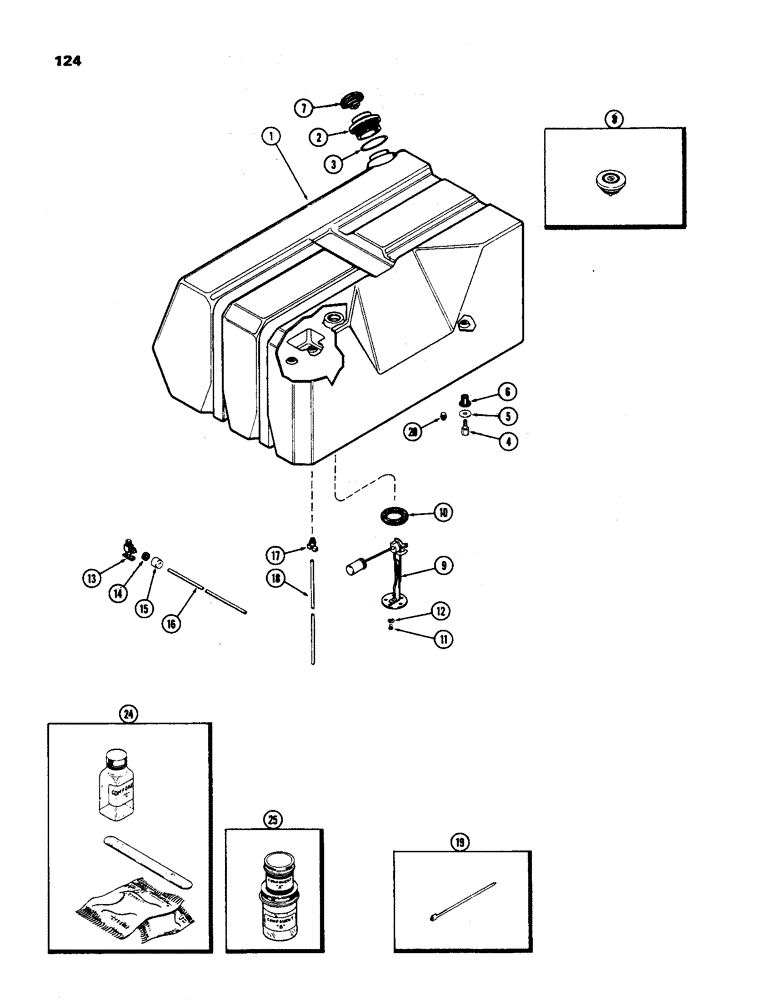

Запчасти Case IH 970 (124) - FUEL TANK AND LINES, (377B) SPARK IGNITION ENGINE POLYETHYLENE MATERIAL (03) - FUEL SYSTEM

1

A143073

FUEL TANK

TANK - fuel (Replaces A66820), Includes: Ref. 2 - 6

1шт.

Ref #1 - The A143035 Fasner, A65892 Washer, and A65890 Stud are part of the A143073 Fuel Tank 02/06/96

1шт.

2

A143074

COLLAR

NECK - fuel tank

1шт.

3

A145752

O-RING,2.85" ID x 0.21"

- 2-55/64 x 3-1/16 x 7/32"

1шт.

4

A65890

STUD,3/8" - 16 x 1/4" NPT

- fuel tank mounting

3шт.

5

A65892

WASHER

- 7/16 x 1-1/4 x 1/16"

3шт.

6

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

3шт.

7

A32119

CAP

- fuel tank filler (without lock)

1шт.

8

A32120

CAP

- fuel tank filler (with lock)

1шт.

9

A62092

UNIT

- fuel gauge sending

1шт.

10

A11822

GASKET

- sending unit

1шт.

11

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10 x 7/16" NF rd. hd. mach.

5шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

13

217-278

FITTING

VALVE - outlet and shut-off (Replaces A62354), Includes: Ref. 14 & 15

1шт.

14

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

15

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

16

A62027

TUBE

- tank, Serial Range: outlet-engine

1шт.

Ref #16 - Use A167917 152" Nylon Tube and cut to length 02/06/96

1шт.

17

A23656

COCK, DRAIN

VALVE - drain (with 4" P.T. thrd.)

1шт.

18

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube (Replaces L11541)

2шт.

20

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" pipe

1шт.

24

A44635

KIT

- repair, polyethylene tank (also order A44636)

1шт.

Polyethylene tank ID identified by 1/4" thread at drain port.

1шт.

25

A44636

KIT

- sealant, tank repair

1шт.
