Запчасти Case IH 970 (120) - FUEL INJECTION PUMP, (401B) DIESEL ENGINE, WITH LUBE LINE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM

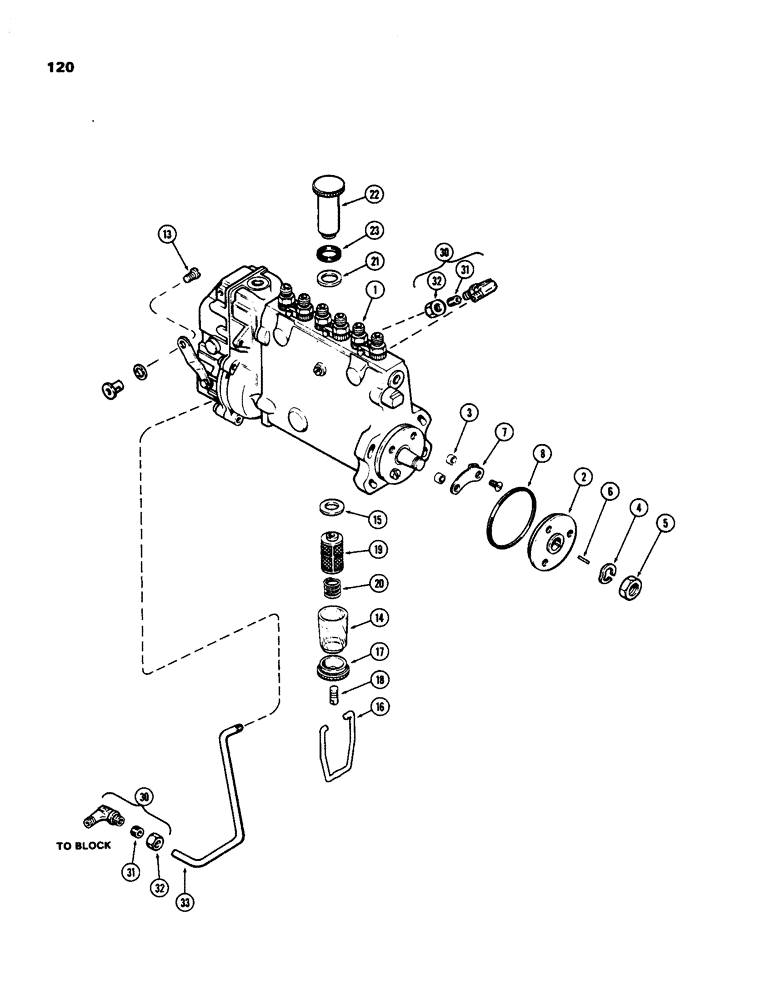

Схема запчастей Case IH 970 - (120) - FUEL INJECTION PUMP, (401B) DIESEL ENGINE, WITH LUBE LINE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM
30
18
6
1
14
17
2
23
19
20
4
3
16
30
21
22
5
8
33
13
7
31
32
15
31
32

Артикул

Название

Примечание

Количество

1

A138037

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (2000 RPM), Includes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 2-61/64 x 3-3/16 x 1/8"

1шт.

13

A44259

SCREW

- pump stop control cable lock

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAIL NUT - retaining

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- primer pump (rubber) (Replaces A44761)

1шт.

30

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 1/4" tube x 1/4" PT, 90 degree, Includes: Ref. 31 & 32

2шт.

31

222-102

SLEEVE,1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

33

A136903

TUBE

- oil, Serial Range: gallery-pump

1шт.

Выбрано товаров: 23
