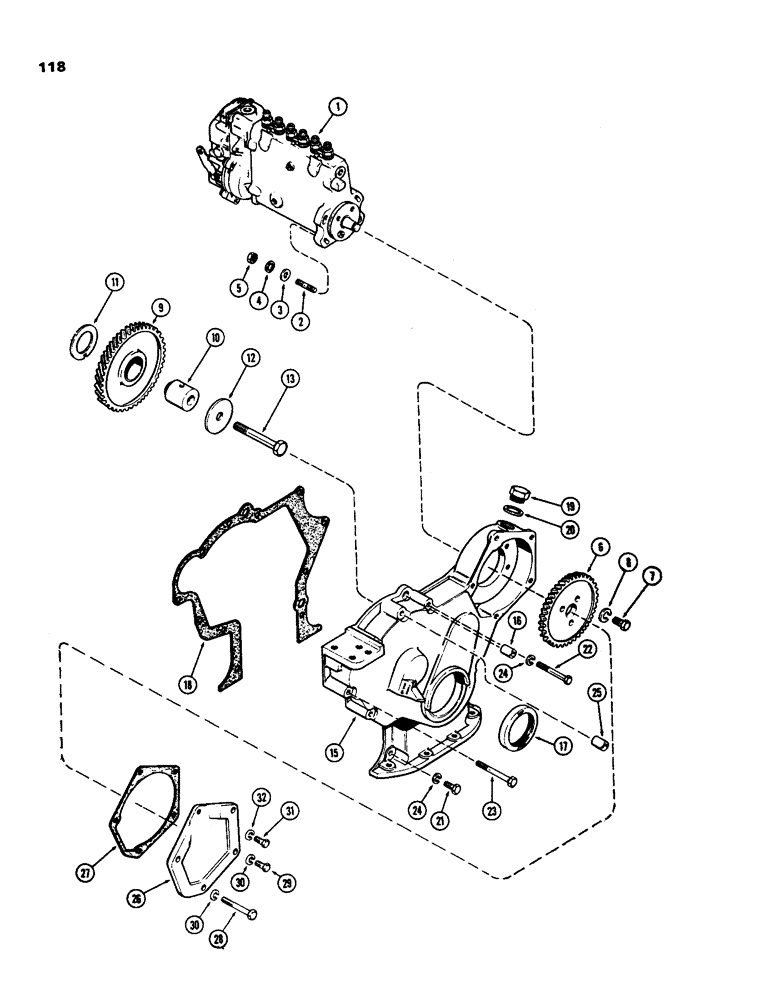

Запчасти Case IH 970 (118) - FUEL INJECTION PUMP DRIVE, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figures 120 and 122

1шт.

2

A142092

STUD

- 3/8" NC x 1-7/8" (drilled) (For anti-tamper wire)

1шт.

2

A58689

STUD

- injection pump mounting, 3/8" NC x 1-7/8"

3шт.

3

A57470

WASHER

- 13/32 x 11/16 x16 ga

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" NC hex. sltd. (used with A142092 stud)

1шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (Used with A58689 stud)

3шт.

6

A58693

GEAR

- injection pump (48 teeth)

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A62542

GEAR

ASSEMBLY - idler (53 teeth) (with bushing)

1шт.

10

A58690

SHAFT

- idler gear

1шт.

11

A58691

WASHER

- thrust, idler shaft

1шт.

12

A58692

PLATE

- thrust, idler shaft

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

15

A58609

COVER

ASSEMBLY - timing gear, Includes: Ref. 16

1шт.

16

A58611

PIN

- dowel, cover, timing gear

2шт.

17

A62049

OIL SEAL

- crankshaft front oil, timing gear cover

1шт.

18

A58612

GASKET

- cover to block, timing gear

1шт.

19

A21140

PLUG

- timing window, gear cover

1шт.

20

A58613

SEALING WASHER

GASKET - timing window plug, gear cover

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

22

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex, timing gear cover

2шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex, timing gear cover

3шт.

24

92-6

LOCK WASHER,3/8"

timing gear cover 3/8"

9шт.

25

A19774

BUSHING

SPACER - alternator pry point, timing gear cover

1шт.

26

A61053

COVER

- fuel pump gear, timing gear

1шт.

27

A58615

GASKET

- cover, timing gear

1шт.

28

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" NC hex, timing gear cover

2шт.

29

A151921

BOLT

- 3/8 x 1-3/4" NC hex. (drilled) (for anti-tamper wire) (Replaces A148253 and A150118), timing gear cover

2шт.

30

92-6

LOCK WASHER,3/8"

timing gear cover 3/8"

4шт.

31

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Timing gear cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

32

92-5

LOCK WASHER,5/16"

timing gear cover 5/16"

1шт.
