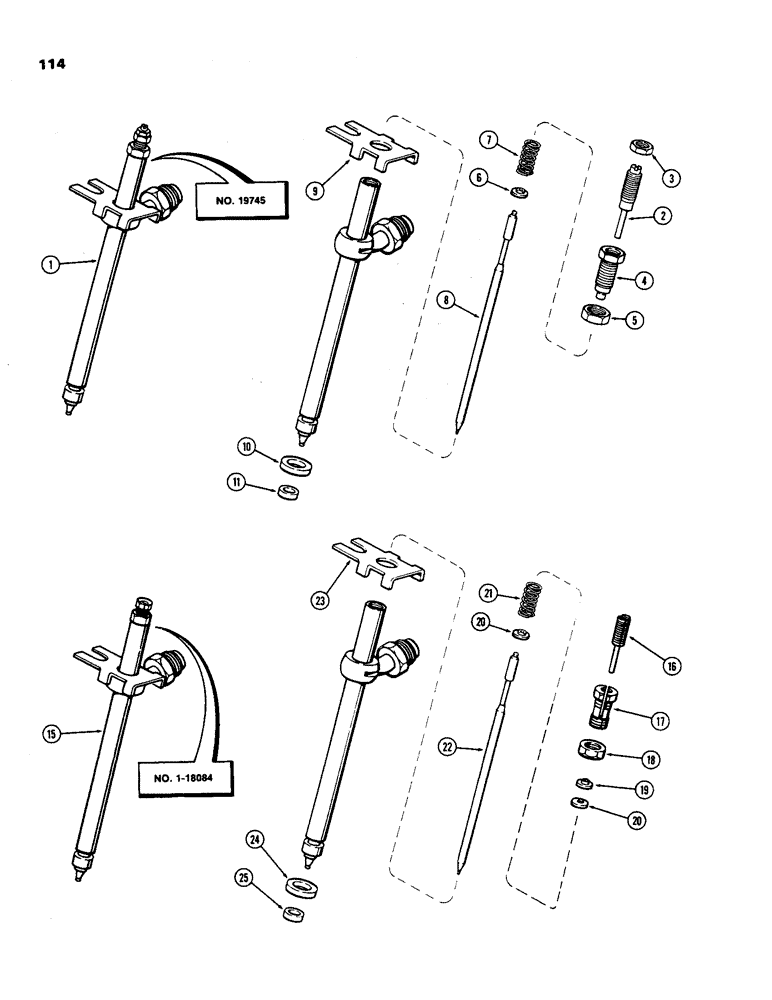

Запчасти Case IH 970 (114) - FUEL INJECTION NOZZLES, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A62809

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection (No. 19745 stamped on body) (color coded red) (Order A138322), See Figure 112, Includes: Ref. 2 - 11

6шт.

1st used engine serial no. 2504221.

1шт.

Whenever nozzle is removed from head, the seal, Ref. 11 or 25 and washer, Ref. 10 or 24 must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

970 (S/N 8675001 & AFTER) (1/69-12/78) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

1st used engine serial no. 2504221.

1шт.

3

A43602

NUT

- lock, lift adjusting (#10-56 hex)

1шт.

1st used engine serial no. 2504221.

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

1st used engine serial no. 2504221.

1шт.

5

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex)

1шт.

1st used engine serial no. 2504221.

1шт.

6

A44369

SEAT

- spring (Replaces A41401)

1шт.

1st used engine serial no. 2504221.

1шт.

7

A43601

SPRING

- pressure adjusting (brown stripe)

1шт.

1st used engine serial no. 2504221.

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

1st used engine serial no. 2504221.

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

1st used engine serial no. 2504221.

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

1st used engine serial no. 2504221.

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

1st used engine serial no. 2504221.

1шт.

15

A58694

NOZZLE

ASSEMBLY - fuel injection (No. 1-18084 stamped on body) (Order A138322), Includes: Ref. 16 - 25

6шт.

Whenever nozzle is removed from head, the seal, Ref. 11 or 25 and washer, Ref. 10 or 24 must be replaced before nozzle is installed back in head.

1шт.

Used prior to engine serial no. 2504221.

1шт.

A138322R

REMAN-INJECT NOZZLE

970 S/N 8675001 & AFTER (1/69-12/78) REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

Used prior to engine serial no. 2504221.

1шт.

17

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

Used prior to engine serial no. 2504221.

1шт.

18

A42424

LOCK NUT

- hex

1шт.

Used prior to engine serial no. 2504221.

1шт.

19

A41407

WASHER

- ball

1шт.

Used prior to engine serial no. 2504221.

1шт.

20

A44369

SEAT

- spring (Replaces A41401)

2шт.

Used prior to engine serial no. 2504221.

1шт.

21

A41444

VALVE SPRING

SPRING - nozzle pressure locating

1шт.

Used prior to engine serial no. 2504221.

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

Used prior to engine serial no. 2504221.

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

Used prior to engine serial no. 2504221.

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

Used prior to engine serial no. 2504221.

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Used prior to engine serial no. 2504221.

1шт.
