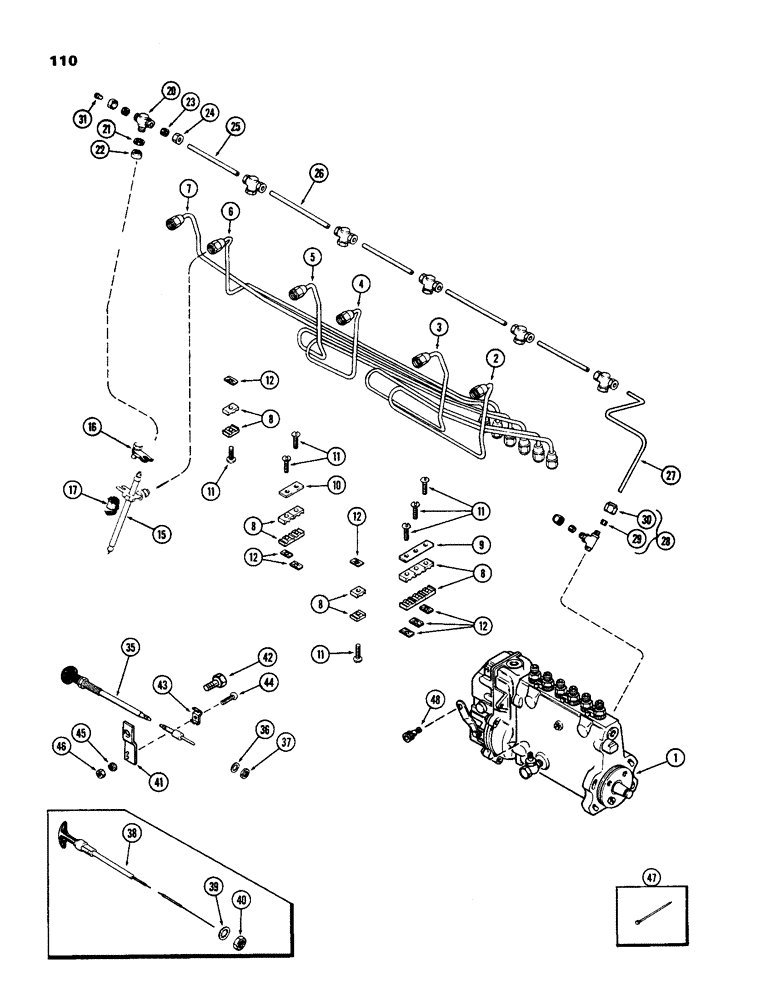

Запчасти Case IH 970 (110) - FUEL INJECTION SYSTEM, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figures 120 and 122

1шт.

2

A58702

TUBE

ASSEMBLY - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSEMBLY - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSEMBLY - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSEMBLY - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSEMBLY - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSEMBLY - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

Injection tube

14шт.

9

A58708

PLATE

Injection tube bracket (6 line)

1шт.

10

A58710

PLATE

Injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

7шт.

15

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection, See Figures 112 and 114

6шт.

16

A58695

CLAMP

ASSEMBLY - nozzle

6шт.

17

A58696

SPACER

SPACER - nozzle clamp

6шт.

20

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSEMBLY - nozzle leak off

6шт.

21

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

Cap

6шт.

22

A58961

NUT

Cap

6шт.

23

222-102

SLEEVE,1/4" Tube

SLEEVE - for 1/4" Tube

12шт.

24

87017024

TUBE NUT,1/2"-24

For 1/4" tube

12шт.

25

A58965

TUBE

Leak-off (4-5/8" long)

3шт.

26

A58964

TUBE

Leak-off (5-5/8" long)

2шт.

27

A58963

TUBE

Leak-off, #1, Serial Range: nozzle-valve

1шт.

28

A59097

VALVE

Leak-off check (in injection pump), Includes: Ref. 29 & 30

1шт.

29

222-102

SLEEVE,1/4" Tube

2шт.

30

87017024

TUBE NUT,1/2"-24

For 1/4" tube

2шт.

31

47-47

RIVET,FH, 1/4" x 7/16"

Leak-off tee

1шт.

35

A64849

STOP

CONTROL - flexible stop (1st used trac. S/N 8693001), pump, Includes: Ref. 36 & 37

1шт.

36

193-86

LOCK WASHER,7/16"

Int. Shakeproof, pump control

1шт.

37

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Pump control

1шт.

38

A62113

CONTROL

Flexible stop (used prior to trac. S/N 8693001), pump, Includes: Ref. 39 & 40

1шт.

39

193-69

SPARE PART Shakeproof, 9/16" int., pump control

1шт.

40

129-166

JAM NUT,Jam, 9/16"-18, G5

Pump control

1шт.

41

A62098

BRACKET

Stop cable mounting, pump control

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pump control

1шт.

43

B51765

CLIP

Cable, pump control

1шт.

44

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

Pump control

1шт.

45

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Pump control

1шт.

46

129-16

NUT,#8-32

Pump control

1шт.

47

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP (Nylon) (Replaces L11541), pump control

2шт.

48

A59101

PIVOT

Stop control, pump control

1шт.
