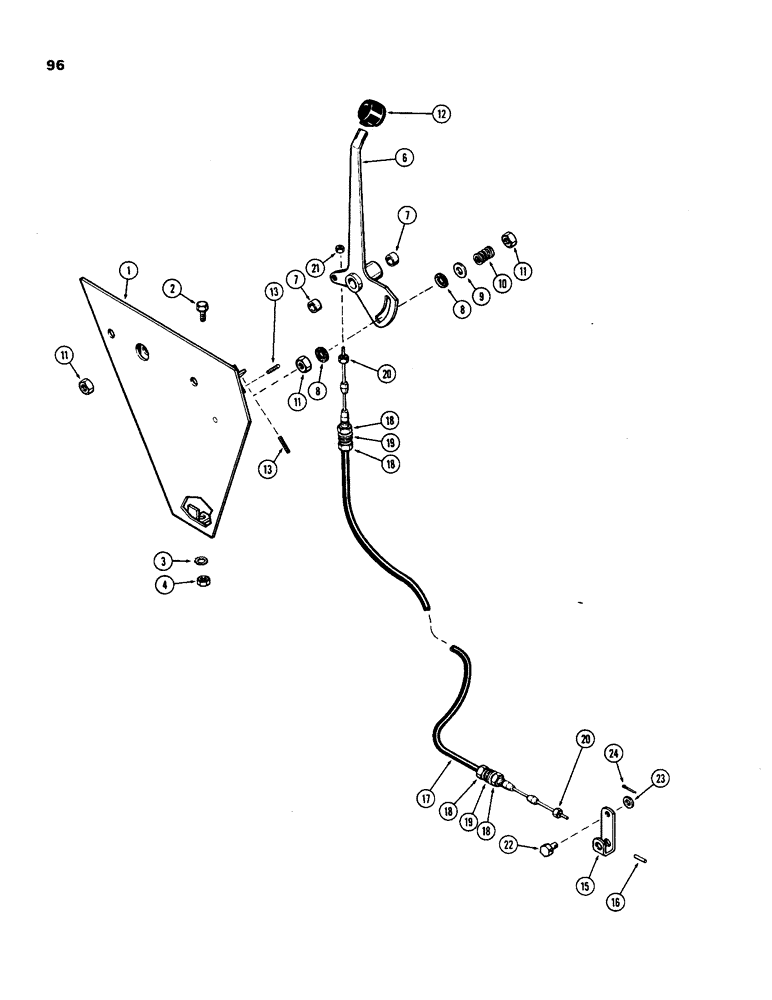

Запчасти Case IH 970 (096) - HAND THROTTLE CONTROLS, (377B) SPARK IGNITION ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (03) - FUEL SYSTEM

1

A62420

PLATE

ASSEMBLY - console front shaft support

1шт.

2

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

3

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int/ext

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

6

A61074

LEVER ASSEMBLY - hand throttle, Includes: Ref. 7

1шт.

7

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever, 5/8 x 3/4 x 1/2" bronze

2шт.

8

A61069

DISC

- friction

2шт.

9

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

1шт.

10

A65583

SPRING

- friction disc

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC, jam

3шт.

12

A137806

KNOB

- lever (Replaces A65541, A62078 and A65699)

1шт.

13

A141874

SET SCREW,1/4" - 20 x 1 1/4"

- 1/4 x 1-1/4" NC hex socket Nylock set

2шт.

15

A61702

LEVER

- throttle override

1шт.

16

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

17

A59434

CABLE

- hand throttle

1шт.

18

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" NF hex, jam, Includes: Ref. 19 & 20

4шт.

19

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - Shakeproof. 7/16" int.

4шт.

20

129-27

NUT,Hex, #10 - 32

- #10 NF hex, jam

2шт.

21

193-1000

NUT,Keps, w/LW,#10-32

- #10 NF hex, Keps

1шт.

22

A61703

PIVOT

- throttle

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.
