Запчасти Case IH 970 (062) - FOOT THROTTLE CONTROLS, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

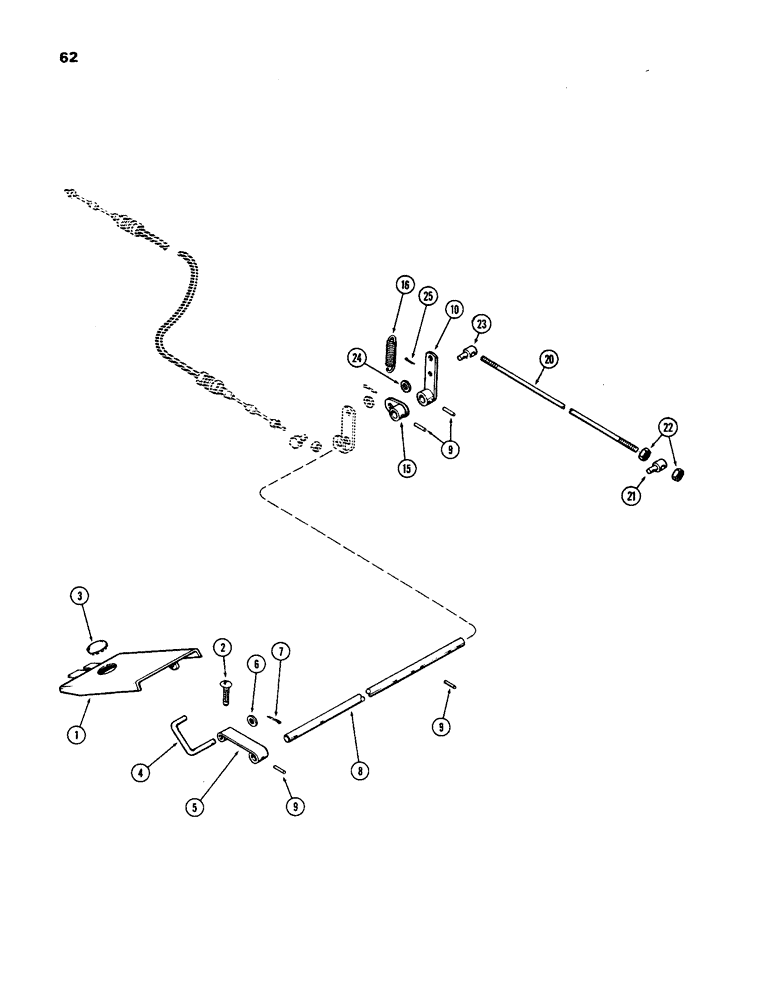

Схема запчастей Case IH 970 - (062) - FOOT THROTTLE CONTROLS, (401B) DIESEL ENGINE (03) - FUEL SYSTEM
7
4
15
24
20
1
9
9
23
25
2
21
9
10
5
6
22
16
8
3

Артикул

Название

Примечание

Количество

1

A61706

PEDAL

ASSEMBLY - foot throttle

1шт.

2

A60718

BOLT - throttle stop

1шт.

3

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - bottom, 1-1/2" dia.

1шт.

4

A61713

LINK

- foot, Serial Range: pedal-lever

1шт.

5

A61712

LEVER

- foot throttle

1шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

7

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

8

A59544

SHAFT - foot throttle

1шт.

9

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

5шт.

10

A61101

LEVER

ASSEMBLY - throttle cross shaft

1шт.

15

A59549

LEVER ASSEMBLY - accelerator return spring

1шт.

16

A59551

SPRING

- accelerator return

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Spring Anchor) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

25-144

JAM NUT,Jam, 1/4"-20, G5

- 1/4" NC hex., jam (Spring Anchor Bolt)

2шт.

20

A59170

ROD

- diesel pump

1шт.

21

A59251

PIVOT

- throttle rod, lower (w/ plain hole)

1шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" NF hex., jam

2шт.

23

A62419

PIVOT

- throttle rod, upper (w/ threaded hole)

1шт.

24

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

2шт.

25

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

Выбрано товаров: 20
