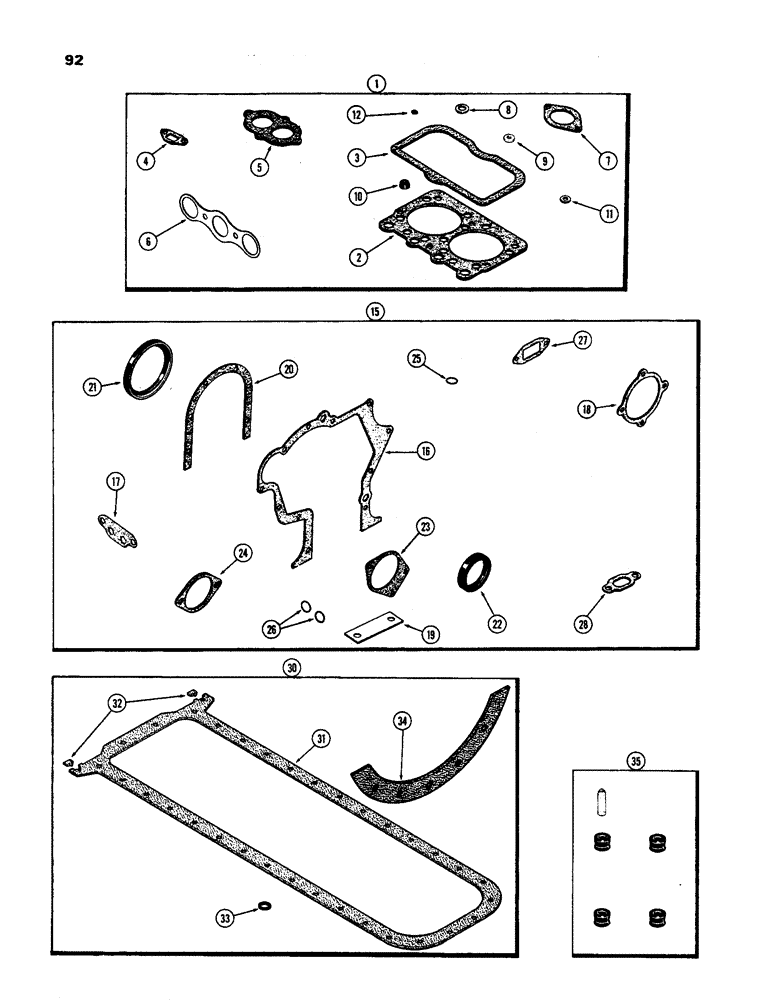

Запчасти Case IH 970 (092) - ENGINE GASKET KITS, (377B) SPARK IGNITION ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A41832

GASKET

VALVE GRIND GASKET KIT, Includes: Ref. 2 - 12

1шт.

For complete engine overhaul, order 1-A41832, 1-A41834 and 1-A43006.

1шт.

2

A58795

CYLINDER HEAD GASKET

- cylinder head

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

3шт.

4

A27905

GASKET

- water manifold

6шт.

5

A32612

GASKET

- thermostat housing

1шт.

6

A58804

GASKET

- intake and exhaust manifolds

3шт.

7

A27776

GASKET

- carburetor

1шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

9

A23684

GASKET

GASKET - cover studs

6шт.

10

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- exhaust and intake valve (See Ref. 35)

12шт.

11

A34133

GASKET

- breather screw

3шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

15

A41834

CYLINDER

BLOCK GASKET KIT, Includes: Ref. 16 - 28

1шт.

For complete engine overhaul, order 1-A41832, 1-A41834 and 1-A43006.

1шт.

16

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

17

A58756

OIL PAN GASKET SET

- oil filter base (not applicable), cylinder block kit

1шт.

18

A58646

GASKET

- water pump, cylinder block kit

1шт.

19

A58859

SHIM,.005" Thk

Oil pump, Cylinder block kit .005" Thk

2шт.

20

A32830

GASKET

- rear seal retainer, cylinder block kit

1шт.

21

A62050

OIL SEAL

- oil, crankshaft, rear, cylinder block kit

1шт.

22

A62049

OIL SEAL

- oil, crankshaft, front, cylinder block kit

1шт.

23

A58820

GASKET

- governor mounting, cylinder block kit

1шт.

24

A58617

GASKET

- pump mounting bracket, cylinder block kit

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- distributor, cylinder block kit

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- hub oil filter base and oil pump, cylinder block kit

3шт.

27

A58649

GASKET

- water pump to block, cylinder block kit

1шт.

28

A58670

GASKET

- oil cooler water opening (not used), cylinder block kit

1шт.

30

A43006

GASKET KIT

OIL PAN GASKET KIT, Includes: Ref. 31 - 34

1шт.

For complete engine overhaul, order 1-A41832, 1-A41834 and 1-A43006.

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Ref. 30), kit

1шт.

32

A62402

GASKET

- oil pan rear corners, kit

2шт.

33

A27968

RING

- drain plug, oil pan kit

1шт.

34

A57966

GASKET

- torque converter, oil pan kit

1шт.

35

M20614

SEAL KIT

- valve seal, Includes: 4 seals and installtion tool, oil pan

1шт.
