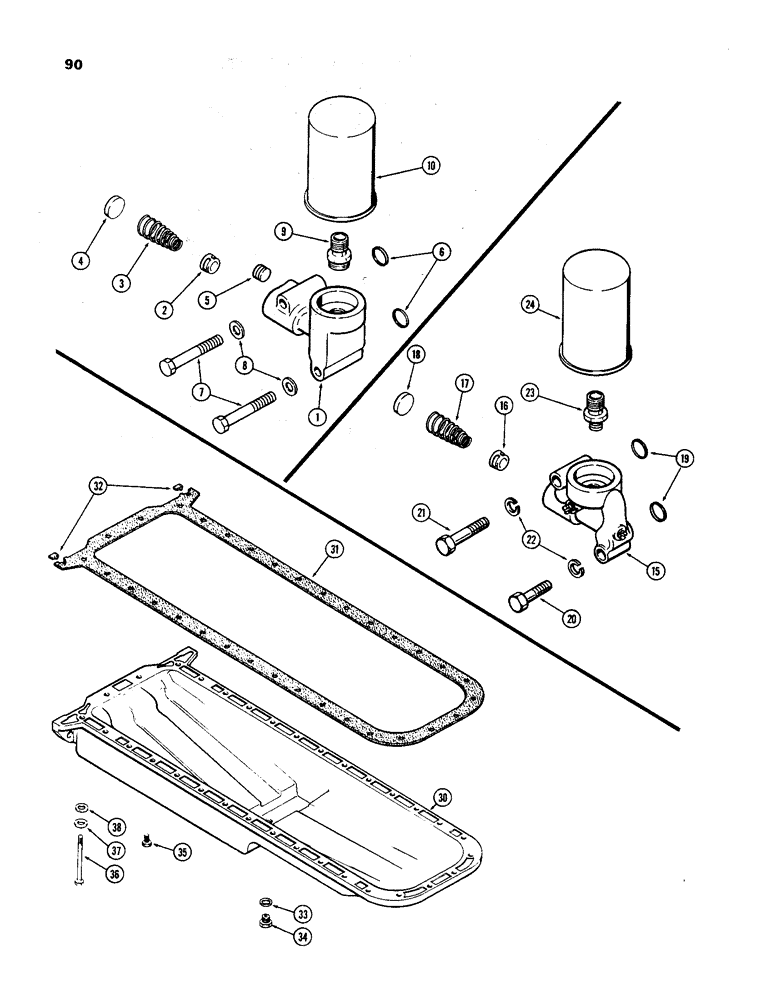

Запчасти Case IH 970 (090) - OIL FILTERS, (377B) SPARK IGNITION ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A65849
BASE
ASSEMBLY - oil filter (Replaces A58830) (1st used eng. ser. no. 2535724), Includes: Ref. 2 - 5
1шт.
3
A58669
SPRING
- relief valve
1шт.
4
41-1020
PLUG,Cup, 1 1/4"
- relief valve, 1-17/64" cup
1шт.
5
221-844
PLUG,Hex Soc, 1/2"-14
- 1/2" P.T. hex. sckt. hd
1шт.
6
A64434
O-RING,0.93" ID x 1.142" x 0.106"
- filter base to block, 15/16 x 1-5/16 x 17/64"
2шт.
7
13-860
BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5
2шт.
8
195-33
WASHER,1/2"
- 17/32 x 1-1/16 x 3/32"
2шт.
9
A58831
ADAPTER
-, Serial Range: element-base
1шт.
10
A146696
ENGINE OIL FILTER
ELEMENT - filter, oil (Replaces A58758)
1шт.
15
A58830
BASE
ASSEMBLY - oil filter (Order A65849) (Used prior to eng. ser. no. 2535724), Includes: Ref. 16 - 18
1шт.
17
A58669
SPRING
- relief valve
1шт.
18
41-1020
PLUG,Cup, 1 1/4"
- relief valve
1шт.
19
A64434
O-RING,0.93" ID x 1.142" x 0.106"
- filter base to block, 15/16 x 1-5/16 x 17/64"
2шт.
20
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- 1/2 x 2-1/2" NC hex
1шт.
21
13-850
BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5
- 1/2 x 3-1/4" NC hex
1шт.
22
92-8
LOCK WASHER,1/2"
2шт.
23
A58831
ADAPTER
-, Serial Range: element-base
1шт.
24
A146696
ENGINE OIL FILTER
ELEMENT - filter, oil (Replaces A58758)
1шт.
Ref #24A - A75294 Element, Filter used on newer units 02/06/96
1шт.
30
A63907
PAN
- oil (Replaces A58850)
1шт.
31
NSS
NOT SOLD SEPARAT
GASKET - oil pan, See Figure 092
1шт.
32
A62402
GASKET
- oil pan corners
2шт.
33
A58608
GASKET
- oil pan drain plug
1шт.
34
A140222
PLUG
- oil pan drain (Replaces A14280)
1шт.
35
193-527
WASHER,Hex, 3/8" - 16 x 1 1/4"
BOLT - 3/8 x 1-1/4" NC hex. sems, oil pan
28шт.
36
A57436
BOLT
- 3/8 x 5-3/4" NC hex., spec, oil pan
2шт.
37
A22317
WASHER
- 25/64 x 11/16" x 18 ga. (copper), oil pan
2шт.
38
A7085
WASHER
- 25/64 x 9/16 x 18 ga. (copper), oil pan
2шт.
Выбрано товаров: 30
