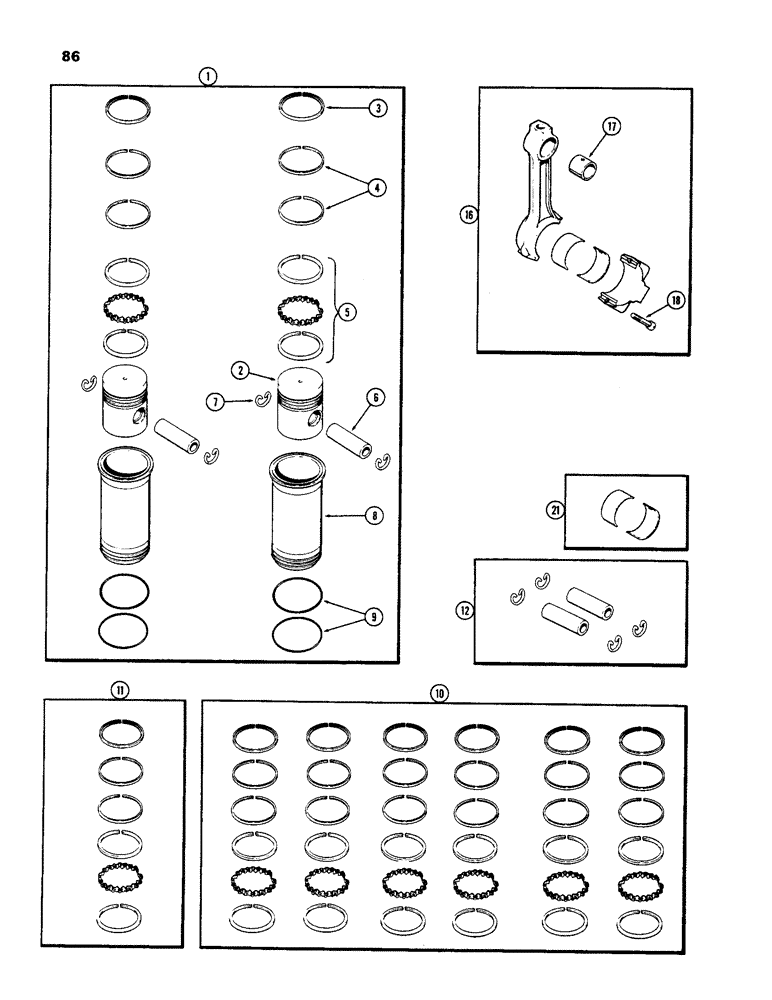

Запчасти Case IH 970 (086) - PISTON ASSEMBLY, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A41831

PISTON

AND SLEEVE KIT - (set of 2), Include: Ref. 2 - 9

3шт.

2

A33536

PISTON

- cylinder, 4" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - oil compression (2nd and 4th groove) (Order Ref.11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (4th groove) (Order Ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

A27844

RING

- snap, piston pin retaining

4шт.

8

A23657

SLEEVE

- piston (cylinder liner)

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

- sleeve packing

4шт.

10

A41847

SET OF RINGS

RING KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A41838

KIT

RING KIT - re-ring (Set of 1)

6шт.

12

A21723

PIN

KIT - w/retaining rings (Set of 2)

3шт.

16

A58788

EXCHANGE CONROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 & 18

6шт.

17

A27846

BUSHING,33.95mm ID x 37.72mm OD x 34.8mm L

- piston pin, connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - 1/2 x 2-3/16" NF spec.(Replaces A27848), connecting rods

2шт.

21

A43173

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (Std.) (Replaces A42493)

6шт.

21

A43174

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (-.022") (Replaces 42478)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing (-.010") (Replaces A42479)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing (-.020") (Replaces A42480)

6шт.

21

A43177

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (-.030") (Replaces A42481)

6шт.
