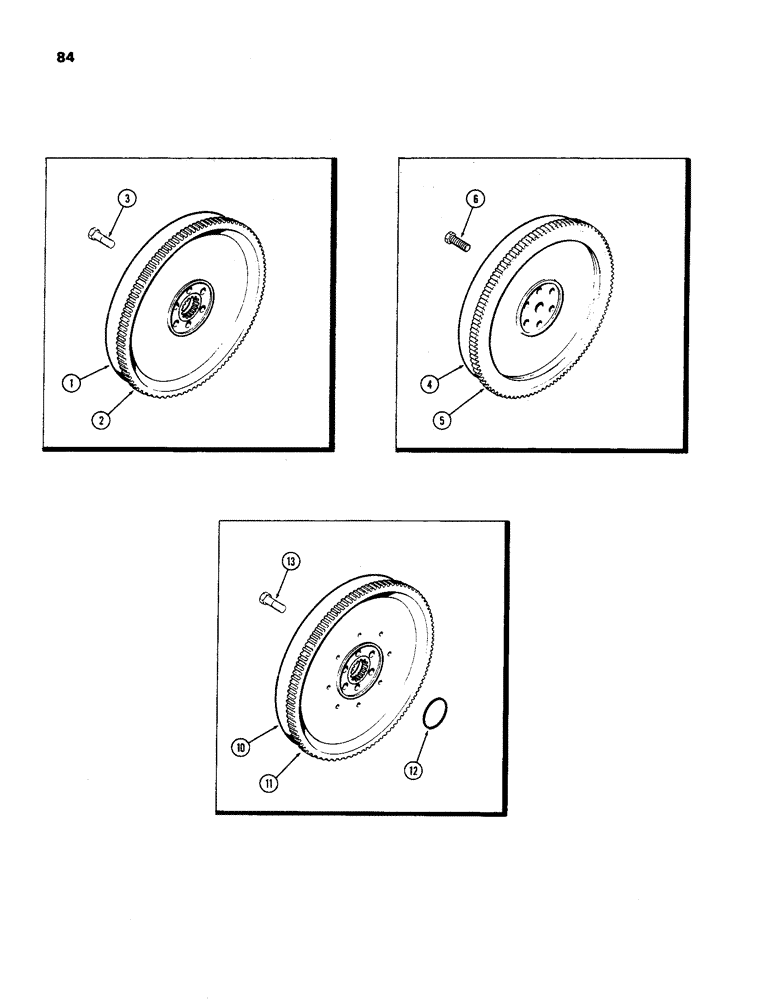

Запчасти Case IH 970 (084) - FLYWHEELS, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A66614

FLYWHEEL ASSEMBLY - (w/ 31 spline teeth) (power shift), See Figure 442, Includes: Ref. 2

1шт.

1

A65410

FLYWHEEL ASSEMBLY - (w/ 29 spline teeth) (power shift), See Figure 442, Includes: Ref. 2

1шт.

2

A20875

GEAR, RING

GEAR - ring, 174 teeth

1шт.

3

114-621

BOLT

- 5/8 x 1-3/8" NF hex

3шт.

4

A59040

FLYWHEEL ASSEMBLY - without spline (power shift), See Figure 442, Includes: Ref. 5

1шт.

5

A20875

GEAR, RING

GEAR - ring, 174 teeth

1шт.

6

114-621

BOLT

- 5/8 x 1-3/8" NF hex

6шт.

10

A59038

FLYWHEEL ASSEMBLY - (mechanical shift), See Figure 442, Includes: Ref. 11

1шт.

11

A20875

GEAR, RING

GEAR - ring, 174 teeth

1шт.

12

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- flywheel to crankshaft 2-3/4 x 3 x 1/8"

1шт.

13

114-622

X

BOLT - 5/8 x 2" NF hex

6шт.
