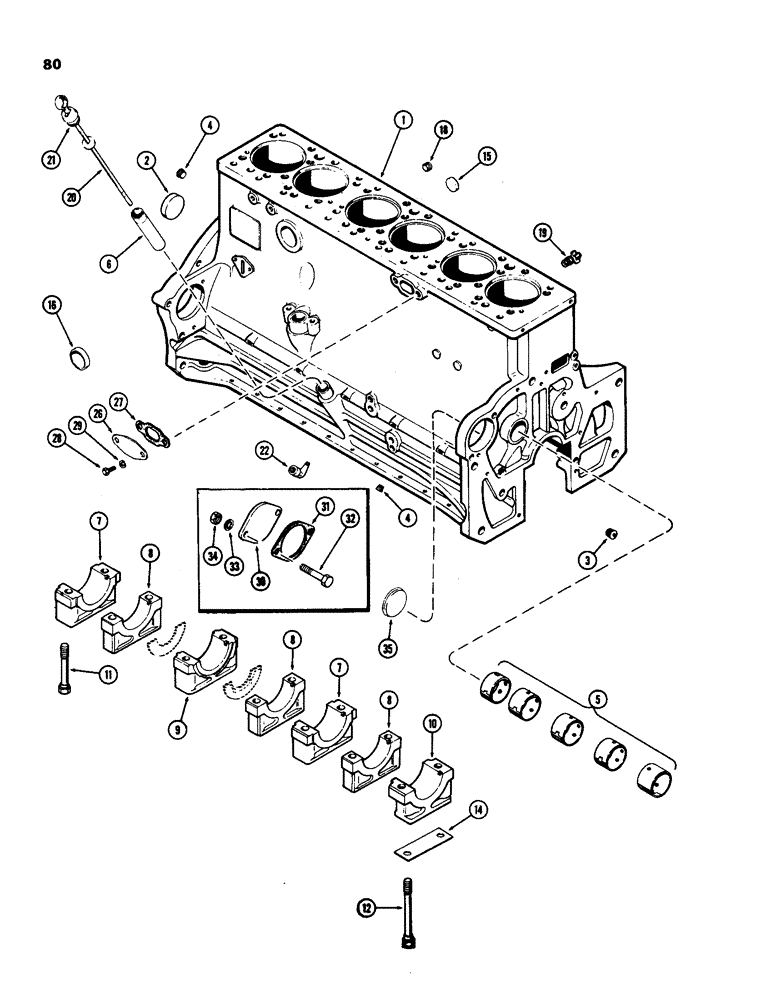

Запчасти Case IH 970 (080) - CYLINDER BLOCK ASSEMBLY, (377B) SPARK IGNITION ENGINE (02) - ENGINE

A41844

BLOCK ASSEMBLY - short, Includes: Ref. 1 - 16 and stripped block, pistons, conn. rods and brgs., crankshaft and bushings, timing gears, oil pump and push rod lifters (Casting A58510)

1шт.

1

A150880

SKELETON ENGINE

BLOCK ASSEMBLY - stripped (Casting #A58510) (Replaces A41845)

1шт.

2

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

3

221-41

PLUG

- 1/8" PT sltd. hdless

6шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT. hex sckt. hd

3шт.

5

A23544

BUSHING

KIT - camshaft

1шт.

6

A34540

TUBE

SOCKET - oil filter

1шт.

7

A58783

BEARING CAP

CAP - main bearing, rear (wide)

2шт.

8

A58784

BEARING CAP

CAP - main bearing, intermediate (narrow)

3шт.

9

A58785

BEARING CAP

CAP - main bearing, center (wide) (thrust)

1шт.

10

A58782

CAP

- main bearing, front (wide)

1шт.

11

A58566

STEP BOLT

BOLT - 5/8 x 4-1/2" NC spec

12шт.

12

A58567

STEP BOLT

BOLT - 5/8 x 6-13/16" NC spec

2шт.

14

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type

3шт.

16

A58569

PLUG,Cup, 2", Stainless

- 2" cup type

1шт.

18

221-845

PLUG,Hex Soc, 3/4"-14

- 3/8" hex sckt. hd. (heater hole)

1шт.

19

A23656

COCK, DRAIN

VALVE - drain water

1шт.

20

A138330

DIPSTICK

- oil level (Replaces A34541), Includes: Ref. 21

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8"

2шт.

22

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8 x 1/8, 90 degree

1шт.

26

A58851

PLATE

COVER - water opening, oil cooler

1шт.

27

A58670

GASKET

- oil cooler water opening cover

1шт.

28

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

A58750

PLUG,Cup, 3 1/4", Stainless

COVER - pump mounting (Replaces A58732)

1шт.

31

A58617

GASKET

- pump mounting cover

1шт.

32

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex

2шт.

33

92-6

LOCK WASHER,3/8"

11шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

35

A58750

PLUG,Cup, 3 1/4", Stainless

- cup (3-1/4" dia.) (Replaces Ref. 30 - 34)

1шт.
