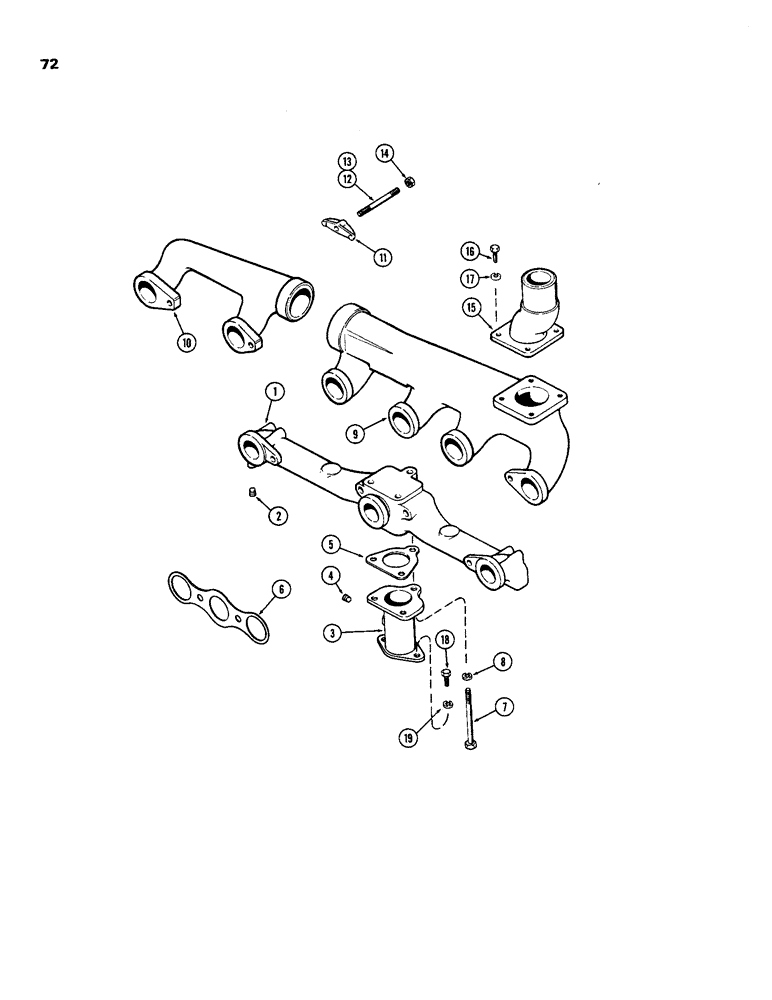

Запчасти Case IH 970 (072) - MANIFOLD, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A61009

MANIFOLD - intake

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" hex sckt. hd. pipe

1шт.

3

A61160

RISER

- intake manifold

1шт.

4

221-841

PLUG

- 1/4" hex sckt. hd. pipe

1шт.

5

A58833

GASKET

- riser to intake manifold

1шт.

6

A58804

GASKET

- intake and exhaust manifolds

3шт.

7

13-676

CAPSCREW,Hex, 3/8" - 16 x 4 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 4 3/4", G5

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A58840

MANIFOLD - exhaust, front

1шт.

10

A24715

MANIFOLD

- exhaust, rear

1шт.

11

A24368

CLAMP

- intake and exhaust manifolds

6шт.

12

A27911

STUD

- 7/16" NF x 6"

4шт.

13

A61052

STUD - 7/16" NF x 6-3/4"

2шт.

14

25-117

NUT,7/16"-20, G5

- 7/16" NF hex

6шт.

15

A58835

STACK - exhaust

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.
