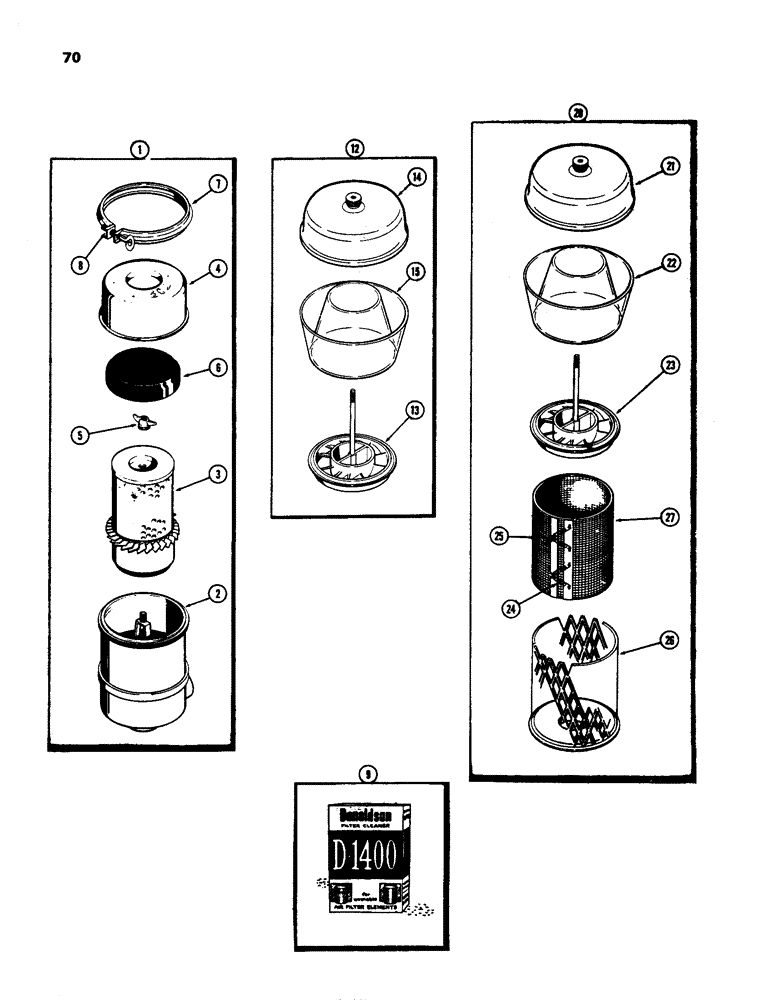

Запчасти Case IH 970 (070) - AIR CLEANER, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A59999

CLEANER

ASSEMBLY - air, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cleaner

1шт.

3

A40866

AIR FILTER

ELEMENT ASSEMBLY - cleaner, 12.68" overall length, 6.09" diameter

1шт.

4

A40951

CUP

- dust

1шт.

5

F91761

WING NUT

AND WASHER ASSY

1шт.

6

D37979

BAFFLE

- rubber

1шт.

7

R15731

CLAMP

ASSEMBLY - cleaner

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" NC hex

1шт.

9

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

12

A64591

CLEANER

PRE-CLEANER ASSEMBLY - (1st used trac. ser. no. 8693001), Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - (Order A64591), pre-cleaner

1шт.

14

A42465

COVER

- pre-cleaner

1шт.

15

A42467

HOUSING

BODY - pre-cleaner

1шт.

20

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSEMBLY - pre-screener (Used prior to trac. ser. no. 8693001), Includes: Ref. 21 -27

1шт.

A42466

CLEANER

COLLECTOR ASSEMBLY - pre-cleaner, Includes: Ref. 21 - 23

1шт.

21

A65

V-BELT

COVER - pre-cleaner

1шт.

22

A42467

HOUSING

BODY - pre-cleaner

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - (Order A42466), pre-cleaner

1шт.

A42284

SCREEN

PRE-SCREENER ASSEMBLY, pre-cleaner, Includes: Ref. 24 - 27

1шт.

24

A22780

SPRING

- screen retaining, pre-cleaner

4шт.

25

A22781

CLIP

- retaining spring, pre-cleaner

2шт.

26

NSS

NOT SOLD SEPARAT

BODY - pre-screener (Order A42284), pre-cleaner

1шт.

27

A42286

SCREEN

- pre-screener, pre-cleaner

1шт.
