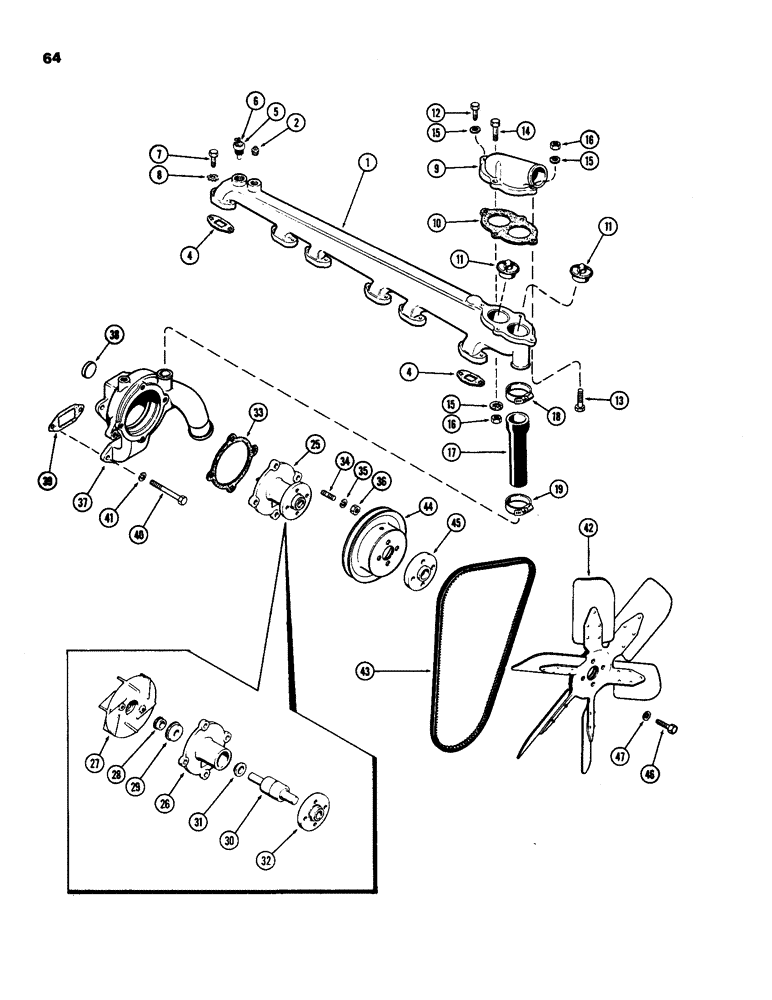

Запчасти Case IH 970 (064) - WATER MANIFOLD AND THERMOSTAT, (377B) SPARK IGNITION ENGINE (02) - ENGINE

1

A60072

SPARE PART MANIFOLD - water, Includes: Ref. 2

1шт.

2

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" PT sq. hd

1шт.

4

A27905

GASKET

GASKET - water manifold

6шт.

5

A61787

TRANSMITTER

UNIT - temperature sending (used with and without air cond.)

1шт.

6

129-1000

NUT - #10 NF hex. (Brass)

1шт.

7

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

12шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

12шт.

9

A32611

SPARE PART HOUSING - thermostat

1шт.

10

A32612

GASKET

GASKET - thermostat housing

1шт.

11

A57641

THERMOSTAT

THERMOSTAT - (180 degree)

2шт.

12

13618

BOLT - 3/8 x 1-1/8" NC hex

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

13624

SWITCH

BOLT - 3/8 x 1-1/2" NC hex

2шт.

15

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex

3шт.

17

A58829

HOSE

HOSE - water pump by-pass

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP - hose, 1-5/16 to 2-3/4"

1шт.

25

A62972

PUMP

PUMP ASSEMBLY - water (with plastic impeller) (Order A152179), Includes: Ref. 26 - 32

1шт.

25

A152179

PUMP

PUMP ASSEMBLY - water (Cast iron impeller), Includes: Ref. 26 - 32

1шт.

25

1998700C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

25

A48331

CORE-WATER PUMP

Return Number, Water Pump

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - pump, water

1шт.

27

NSS

NOT SOLD SEPARAT

IMPELLER - water (Plastic) (Order A152124), pump

1шт.

27

A152124

IMPELLER

IMPELLER - cast iron, water pump

1шт.

28

A34000

SEAL

SEAL - impeller, water pump

1шт.

29

142499

SEAL - shaft, water pump

1шт.

30

A59056

BEARING ASSY

SHAFT ASSEMBLY - with bearing, water pump, Includes: Ref. 31

1шт.

31

A29440

SLINGER

- water, pump

1шт.

32

A58742

HUB

HUB - fan and pulley, water pump

1шт.

33

A58646

GASKET

GASKET - pump to body, pump

1шт.

34

A62234

STUD

STUD - 3/8" NC x 1-3/8", water pump

4шт.

35

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

36

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" NC hex, water pump

4шт.

37

A58779

HOUSING

BODY ASSEMBLY - water pump

1шт.

38

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup type, water pump

1шт.

39

A58649

GASKET

GASKET - body to block, water pump

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, , Water pump Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

41

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.

42

A15606

FAN

FAN -, water pump

1шт.

43

A65143

V-BELT,0.69" W x 58.25" L

Fan, Replaces A59763, Water Pump

1шт.

44

A58837

PULLEY

PULLEY - fan driven, water pump

1шт.

45

A61268

BUSHING

SPACER - fan blade (1"), water pump

1шт.

46

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Water pump Hex, 3/8"-16 x 2", G5

4шт.

47

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.
