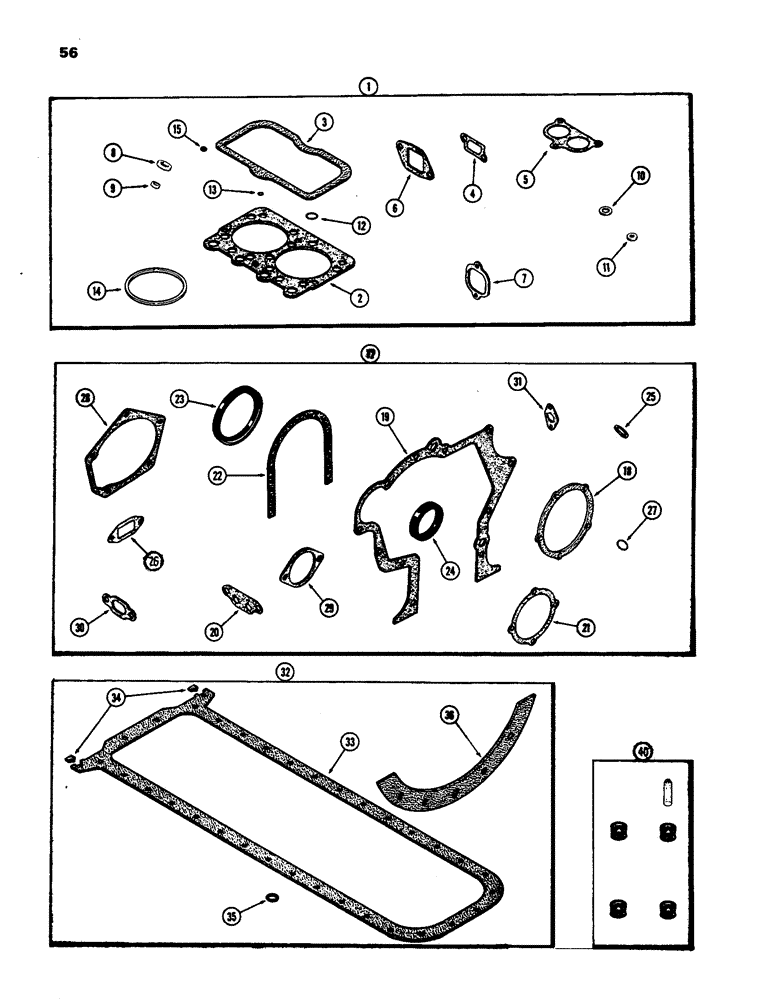

Запчасти Case IH 970 (056) - ENGINE GASKET KITS, (401B) DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A42890

VALVE

GRIND GASKET KIT, Includes: Ref. 2 - 15

1шт.

For complete engine overhaul, order 1-A42890, 1A44075 and 1-A43006.

1шт.

2

A62215

GASKET

- cylinder head

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928

3шт.

4

A58637

MANIFOLD GASKET

- water manifold

3шт.

5

A58639

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58895

GASKET

- exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

11

A23684

GASKET

GASKET - cover studs

6шт.

12

A34133

GASKET

- breather screw

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

14

A34686

RING

- cylinder head fire, std

6шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- exhaust and intake valve (See Ref. 40)

12шт.

17

A44075

GASKET KIT

CYLINDER BLOCK GASKET KIT - (Replaces A42096), Includes: Ref. 18 - 31

1шт.

For complete engine overhaul, order 1-A42890, 1A44075 and 1-A43006.

1шт.

18

A76656

GASKET

- water pump body (Not applicable), cylinder block kit

1шт.

19

58612

GASKET - timing gear cover, cylinder block kit

1шт.

20

A58756

OIL PAN GASKET SET

- oil filter base (Not applicable), cylinder block kit

2шт.

21

A58646

GASKET

- water pump body, cylinder block kit

1шт.

22

A32830

GASKET

- rear seal retainer, cylinder block kit

1шт.

23

A62050

OIL SEAL

- crankshaft rear oil, cylinder block kit

1шт.

24

A62049

OIL SEAL

- crankshaft front oil, cylinder block kit

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

26

A58649

GASKET

- water pump body to block, cylinder kit

1шт.

27

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base, cylinder block kit

3шт.

28

A58615

GASKET

- fuel pump gear cover, cylinder block kit

1шт.

29

A58617

GASKET

- pump mounting cover, cylinder block kit

1шт.

30

A58670

GASKET

- oil cooler water opening cover, cylinder block kit

1шт.

31

A58680

OIL PAN GASKET SET

- oil cooler tube (w/ turbo only), cylinder block kit

1шт.

32

A53006

GASKET

OIL PAN GASKET KIT, Includes: Ref. 33 - 36

1шт.

Ref #32 - A53006 is invalid - see note though - note references A43006 which is a valid part number and is a gasket set. (7/95 Stuckert).

1шт.

For complete engine overhaul, order 1-A42890, 1A44075 and 1-A43006.

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order 32)

1шт.

34

A62402

GASKET

- oil pan corners

2шт.

35

A27968

RING

- oil pan drain plug

1шт.

36

A57966

GASKET

- torque converter, oil pan

1шт.

40

M20614

SEAL KIT

VALVE SEAL SET, Includes: 4 seals and installation tool, oil pan

3шт.
