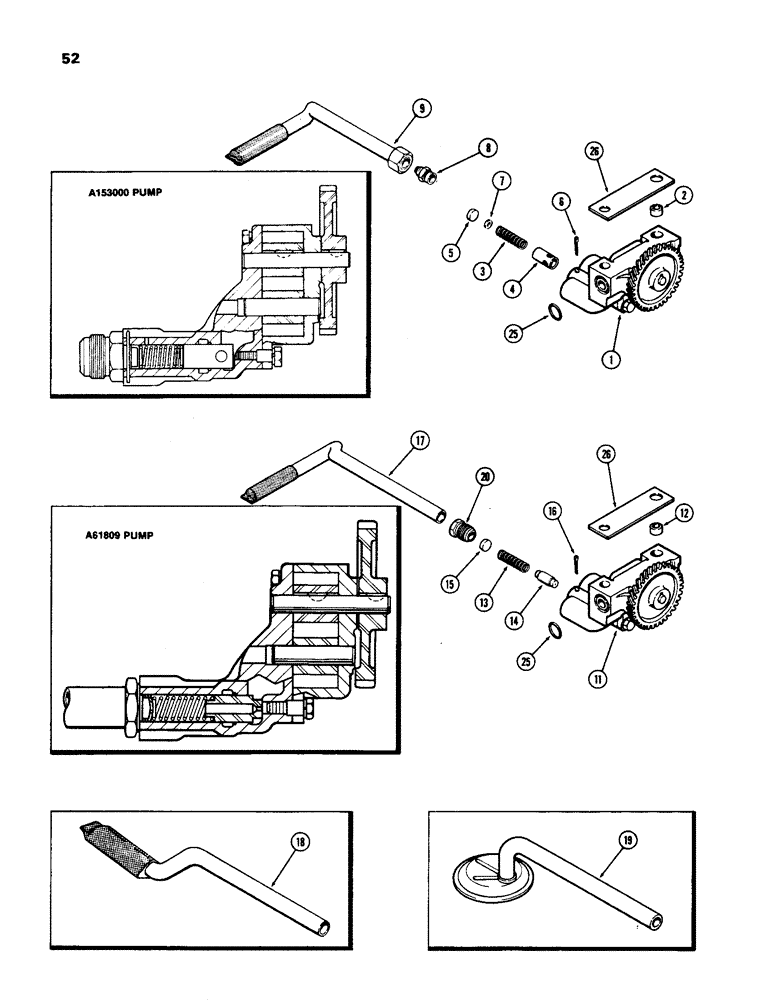

Запчасти Case IH 970 (052) - OIL PUMP, (401B) DIESEL ENGINE (02) - ENGINE

1

A153000

PUMP

ASSEMBLY - oil (Replaces A61809, A65080 and A144773), Includes: Ref. 2 - 7

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A151960

SPRING

- relief valve (Replaces A59111)

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- 45/64" cup

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A57470

WASHER

- 13/32 x 11/16 x 16 gauge

1шт.

8

A142004

CONNECTOR, ELEC

CONNECTOR - oil pump screen tube

1шт.

9

A142449

TUBE

ASSEMBLY - oil suction, w/ screen

1шт.

11

A61809

PUMP

ASSEMBLY - oil (Order A151665), Includes: Ref. 12 - 16

1шт.

12

A58915

SLEEVE

- pump body

1шт.

13

A151960

SPRING

- relief valve (Replaces A59111)

1шт.

14

A34992

PISTON

VALVE - relief

1шт.

15

41-1011

PLUG,Cup, 11/16"

- 45/64" cup

1шт.

16

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

17

A66174

TUBE

ASSEMBLY - oil suction, w/ screen (Replaces A62911 and A58847) (Order A142449 and A142004)

1шт.

18

A62911

SCREEN

TUBE ASSEMBLY - oil suction, w/ screen (Order A142449 and 142004)

1шт.

19

A58847

SCREEN

TUBE ASSEMBLY - oil suction, w/ screen (Order A142449 and 142004)

1шт.

20

A142004

CONNECTOR, ELEC

CONNECTOR - oil pump screen tube

1шт.

25

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block (Replaces A58602)

1шт.

26

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.
