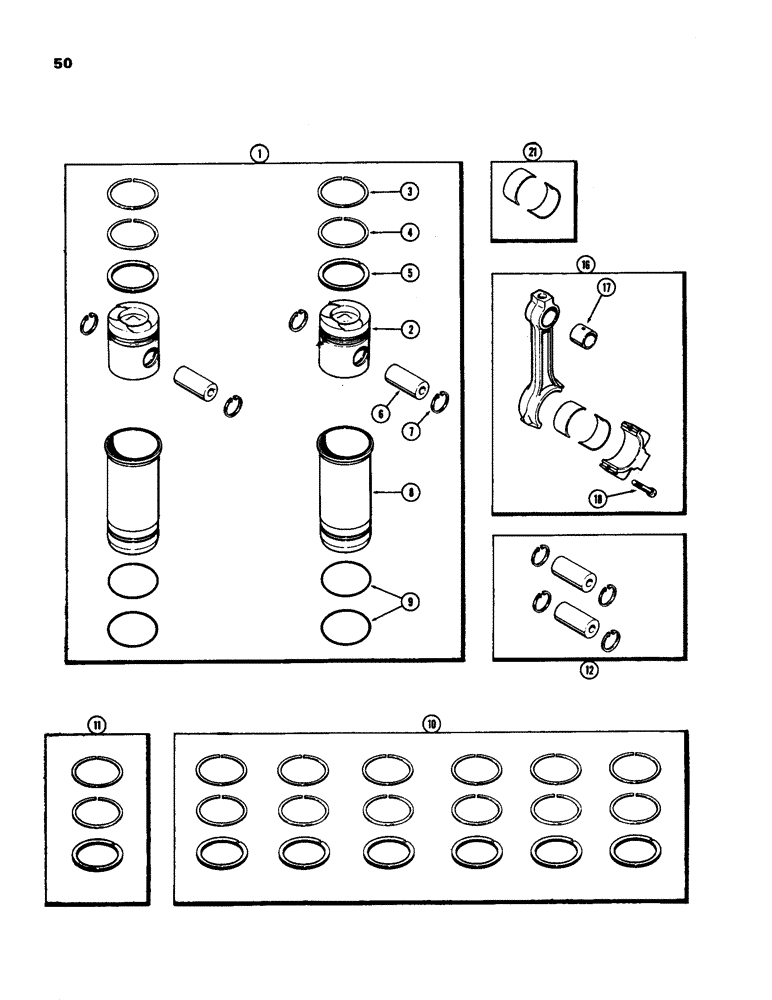

Запчасти Case IH 970 (050) - PISTON ASSEMBLY, (401B) DIESEL ENGINE (02) - ENGINE

1

A44069

PISTON

ASSEMBLY - (set of 2) (Replaces A43106, A41964 and A43116), Includes: Ref. 2 - 9

3шт.

2

A65127

PISTON

- cyl. (4-1/8") (Replaces A64874 and A58882)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom Groove) (Order Ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

8

A136009

SLEEVE

- piston (cylinder liner) (Replaces A58883)

2шт.

If looking for sleeve shim, see 1370 book, lower block sleeve.

1шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

- sleeve packing

4шт.

10

A41969

RING

KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A41967

RING, PISTON

RING KIT - re-ring (Set of 1)

6шт.

12

A24517

PIN

KIT - w/ retaining rings (Set of 2)

3шт.

16

A62952

ROD

ASSEMBLY - connecting (1st used engine serial no. 2331513), Includes: Ref. 17 & 18

6шт.

16

A58862

ROD

ASSEMBLY - connecting (used prior to engine serial no. 2331513), Includes: Ref. 17 & 18

6шт.

17

A21069

BUSHING,37.63mm ID x 43mm OD x 34.8mm L

- piston pin, connecting rod

1шт.

If oversized bushings are required, must be ordered direct from Porta Tool. No case numbers have been assigned.

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - 1/2 x 2-3/16" NF 12 pt. hd. (Replaces A62184, connecting rod)

2шт.

21

A43173

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (Std.) (Replaces A42943)

1шт.

21

A43174

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (-.002") (Replaces A42478)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing (-.010") (Replaces A42479)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing (-.020") (Replaces A42480)

6шт.

21

A43177

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (-.30) (Replacing A42481)

6шт.
