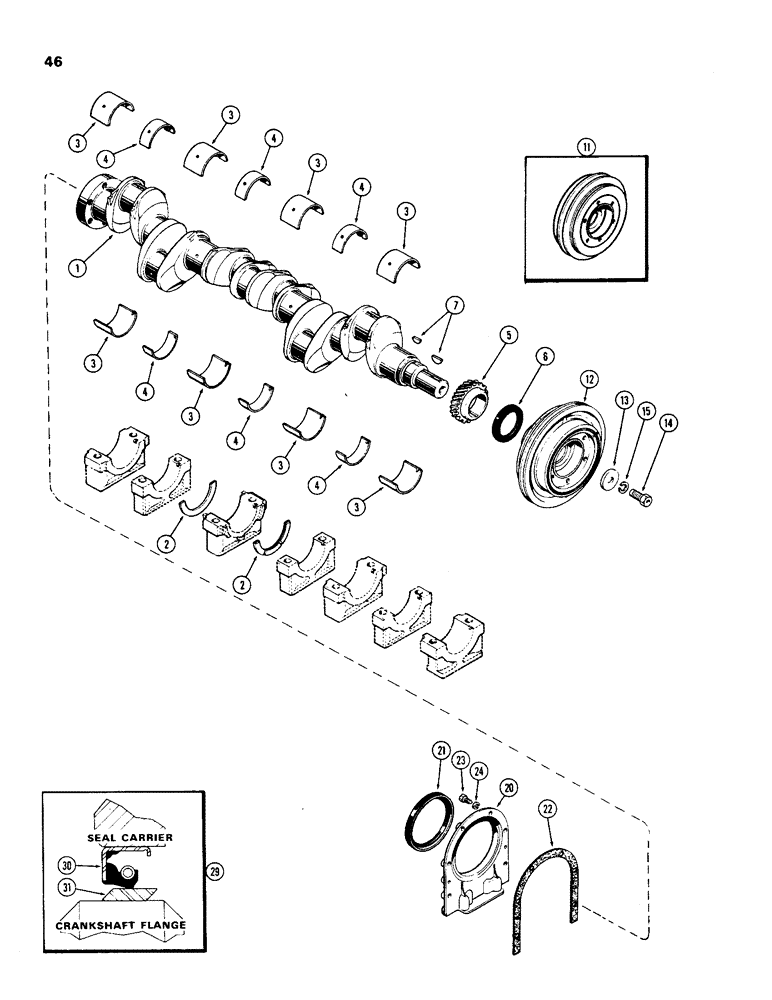

Запчасти Case IH 970 (046) - CRANKSHAFT, (401B) DIESEL ENGINE (02) - ENGINE

1

A58860

CRANKSHAFT

- engine

1шт.

2

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust (0.185" thick) Replaces A58786

1шт.

2

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.191" thick)

2шт.

3

A43163

BEARING LINER

LINER - main bearing, wide (Std.) (Replaces A42490

4шт.

3

A43164

BEARING LINER

LINER - main bearing, wide (-.002") (Replaces A42486)

4шт.

3

A43165

BEARING LINER

LINER - main bearing, wide (-.010") (Replaces A42487)

4шт.

3

A43166

BEARING LINER

LINER - main bearing, wide (-.020") (Replaces A42488)

4шт.

3

A42489

BEARING

LINER - main bearing, wide (-.030") (Replaces A42488)

4шт.

4

A43158

BEARING LINER

LINER - main bearing, narrow (Std.) (Replaces A42492)

3шт.

4

A42482

LINING

LINER - main bearing, narrow (-.002")

3шт.

4

A43160

BEARING LINER

LINER - main bearing, narrow (-.010") (Replaces A42483)

3шт.

4

A43161

BEARING SET

LINER - main bearing, narrow (-.020") (Replaces A42484)

3шт.

4

A43162

BEARING LINER

LINER - main bearing, narrow (-.030") (Replaces A42485)

3шт.

5

A66404

GEAR

- crankshaft front (Replaces A58573)

1шт.

6

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 1/2"

1шт.

7

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

11

A58871

FAN

PULLEY - fan drive (used prior to trac. ser. no. 8693001)

1шт.

12

A66446

PULLEY

- fan drive (1st used trac. ser. no. 8693001)

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear, 4-3/4 x 5-3/4 x 1/2" (See Ref. 29)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

29

A43194

KIT

- crankshaft wear seal, Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, wear kit

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear kit

1шт.
