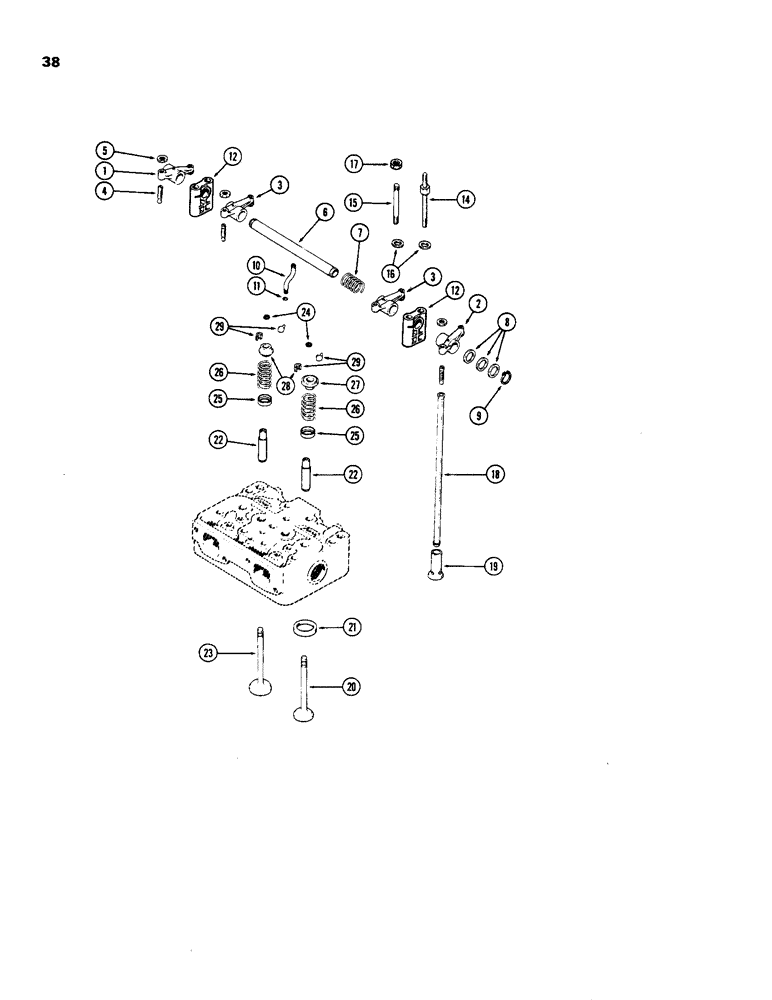

Запчасти Case IH 970 (038) - VALVE MECHANISM, (401B) DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve (1st, 3rd and 5th cylinders) (Replaces A58655), Includes: Ref. 4 & 5

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve (2nd, 4th and 6th cylinders) (Replaces A58656), Includes: Ref. 4 & 5

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve (Replaces A58654)

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

1шт.

6

A57532

SHAFT

ASSEMBLY - rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker arm shaft oil tube

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

14

A67121

STUD

- rocker arm support, 7/16" N.C. x 5-7/8 (Replaces A60885)

6шт.

15

A58659

STUD

- rocker arm support, 7/16" N.C. x 4-5/16"

6шт.

16

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

12шт.

17

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

6шт.

18

A141841

ROD

ASSEMBLY - push (Replaces A58596)

12шт.

19

A20865

TAPPET

LIFTER - push rod (std.)

12шт.

19

A21857

TAPPET

LIFTER - push rod (0.010 oversize)

12шт.

20

A41965

VALVE

- exhaust (Set of 2)

3шт.

21

A58877

INSERT

- exhaust valve

6шт.

22

A41783

GUIDE

- intake and exhaust valve

12шт.

23

A41966

VALVE

- intake (Set of 2)

3шт.

24

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

6шт.

25

A66328

SEAT

- intake and exhaust valve spring (Replaces A58623)

12шт.

26

A66444

SPRING

- intake and exhaust valve

12шт.

27

A66336

ROTATOR

ROTO COIL - exhaust valve

6шт.

28

A44645

KIT

RETAINER - intake valve (Set of 2 retainers and 2 locks)

2шт.

29

A27872

LOCK

- valve spring

24шт.
