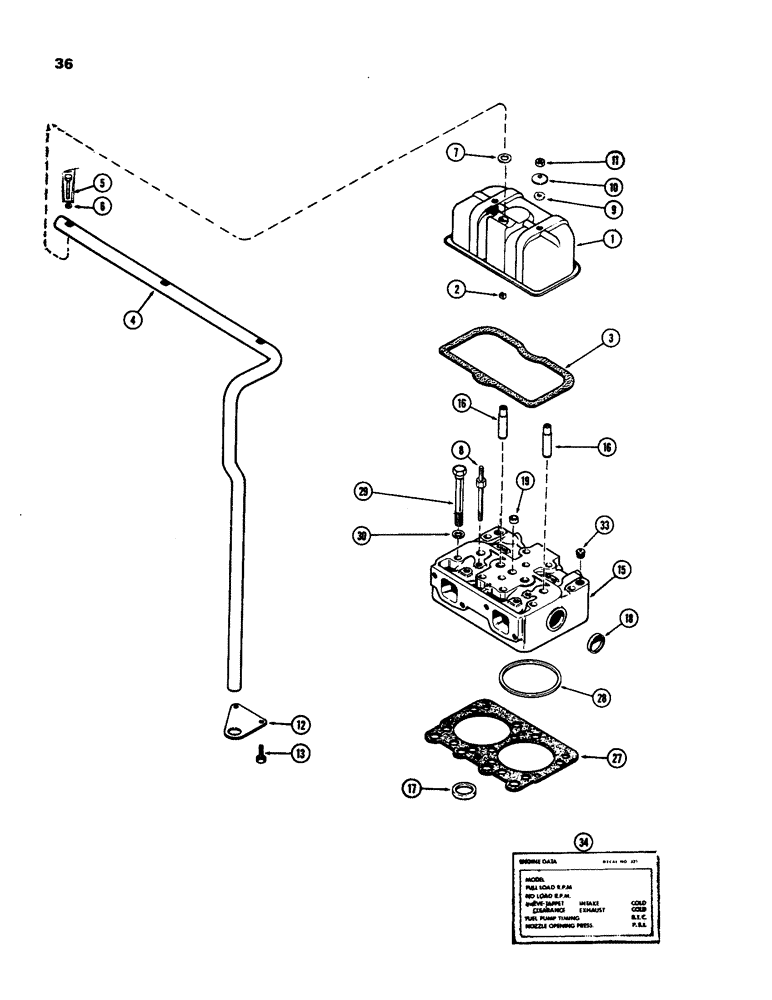

Запчасти Case IH 970 (036) - CYLINDER HEAD AND COVER, (401B) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

3шт.

4

A59053

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

3шт.

6

A34133

GASKET

- breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

3шт.

8

A67121

STUD

- rocker arm brkt. and cyl. head cover (Replaces A60885)

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

- cover stud, beveled

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" NC hex.

6шт.

12

A59054

BRACKET

- breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" NC sems

2шт.

15

A58885

CYLINDER

HEAD ASSEMBLY - cylinder, Includes: Ref. 16 - 19

3шт.

16

A41783

GUIDE

S - intake and exhaust valves

6шт.

17

A58877

INSERT

- exhaust valve

6шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup type

2шт.

19

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup type

1шт.

27

A62215

GASKET

- cylinder head

3шт.

28

A34686

RING

- fire, std

6шт.

28

A34688

RING

- fire, thick (coded w/ blue stripe)

1шт.

29

A76638

BOLT

- 5/8 x 6-1/4" NC hex (1st used eng. ser. no. 2556833)

30шт.

29

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" NC hex (Used prior to eng. ser. no. 2556833)

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

33

221-1843

PLUG

- 3/8" PT hex. sckt. hd.

5шт.

34

321-1802

DECAL

- engine data

1шт.
