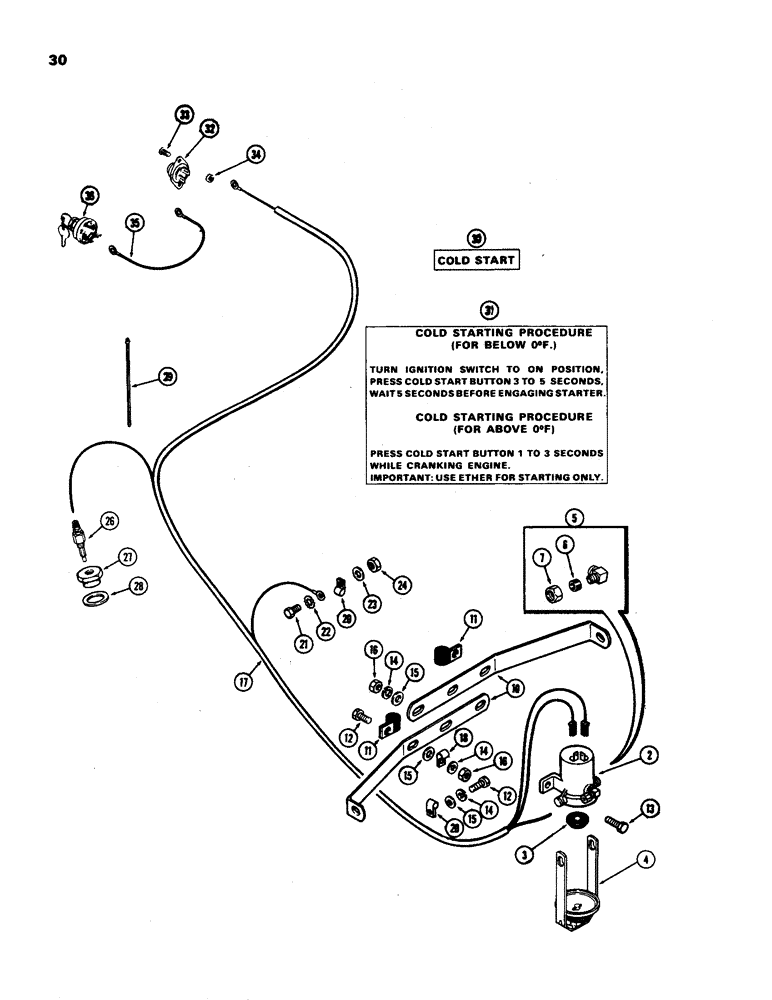

Запчасти Case IH 970 (030) - ETHER STARTING KIT, (401B) DIESEL ENGINE, FIELD INSTALLED (02) - ENGINE

A145615

KIT

- ether, starting (Replaces A62772), Includes: Ref. 2 - 35

1шт.

2

A143381

SOLENOID

- ether injector, w/ fitting (Replaces A62441), Includes: Ref. 3 - 7

1шт.

3

R30786

GASKET

- can (Replaces R30768)

1шт.

Ref #3 - Should be R30786 Subs to 395686R1 02/06/96

1шт.

4

R30785

BAIL

ASSEMBLY - solenoid

1шт.

5

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Check - Solenoid, Incl. Ref. 6 & 7 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

6

222-650

SLEEVE,1/8" Tube, Comp

2шт.

7

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

10

A62442

BRACKET - solenoid mounting

2шт.

11

49885

CLAMP

CLIP - steering, Serial Range: tube-bracket

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

6шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

A143894

HARNESS

- wire, solenoid to switch (Replaces A62773)

1шт.

18

A7922

CLIP

- harness

1шт.

20

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - harness

2шт.

21

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

22

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext.

1шт.

23

195-19

WASHER

- 5/16 x 3/4 x 1/16"

1шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

26

A145069

NOZZLE INJECTION

INJECTOR- nozzle, w/1/8" tube fitting

1шт.

27

L10283

PLUG

ADAPTER - nozzle to intake manifold

1шт.

28

A20916

MANIFOLD GASKET

WASHER -, Serial Range: adapter-manifold

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube and harness

7шт.

30

321-1752

DECAL

- "Cold Start"

1шт.

31

321-2946

DECAL

- "Cold Start" - Instructions (Replaces 321-1841)

1шт.

32

A36948

SWITCH

- ether solenoid

1шт.

33

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" NC Phillips hd., mach.

2шт.

34

193-104

NUT - #10 NC hex., Brass

2шт.

35

A62713

ELECTRICAL WIRE

WIRE - solenoid switch to start switch

1шт.

36

A59693

SWITCH

- starting (not included in kit)

1шт.
