Запчасти Case IH 970 (026) - AIR CLEANER, (401B) DIESEL ENGINE (02) - ENGINE

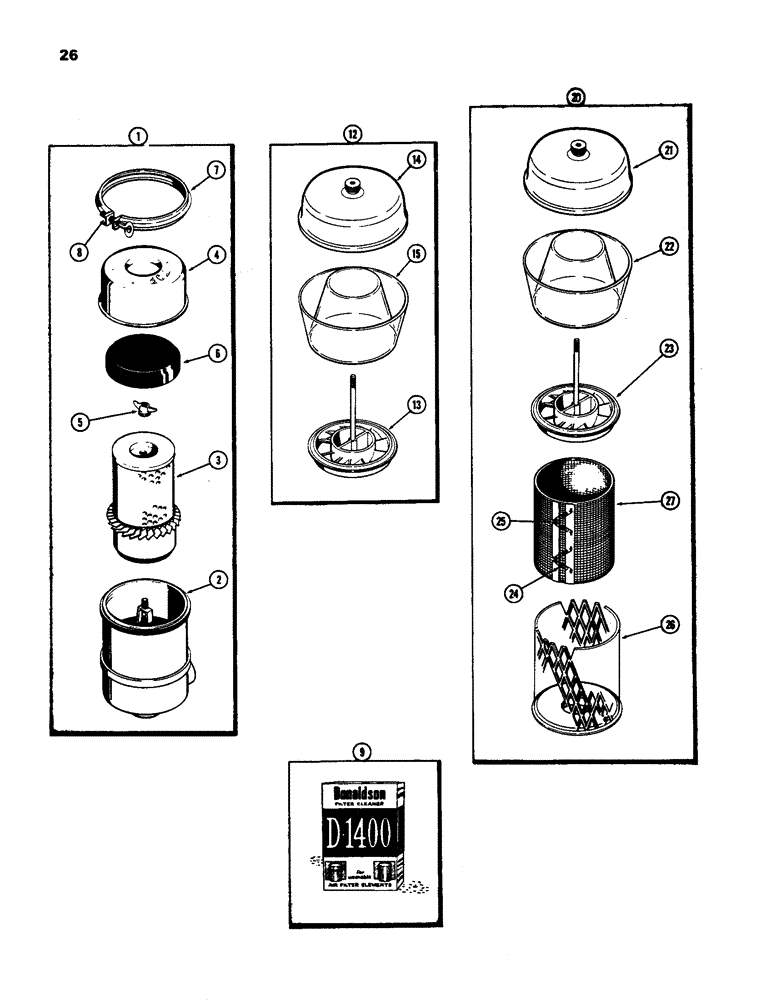

Схема запчастей Case IH 970 - (026) - AIR CLEANER, (401B) DIESEL ENGINE (02) - ENGINE
7
21
2
27
1
12
6
25
3
15
4
20
23
14
13
26
22
8
24
9
5

Артикул

Название

Примечание

Количество

1

A59999

CLEANER

ASSEMBLY - air, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cleaner

1шт.

3

A40866

AIR FILTER

ELEMENT ASSEMBLY - cleaner, 12.68" overall length, 6.09" diameter

1шт.

4

A40951

CUP

- dust

1шт.

5

F91761

WING NUT

AND WASHER ASSEMBLY

1шт.

6

D37979

BAFFLE

- rubber

1шт.

7

R15731

CLAMP

ASSEMBLY - cleaner

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex.

1шт.

9

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

12

A145674

CLEANER

PRE-CLEANER ASSEMBLY - (1st used trac. ser. no. 8693001) (Replaces A64591 and A143392), Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - (Order A145674), pre-cleaner

1шт.

14

A42465

COVER

- pre-cleaner

1шт.

15

A42467

HOUSING

BODY - pre-cleaner

1шт.

20

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSEMBLY - (used prior to trac. ser. no. 8693001), Includes: Ref. 21 - 27

1шт.

A145674

CLEANER

COLLECTOR ASSEMBLY - pre-cleaner (Replaces A42466), Includes: Ref. 21 - 23

1шт.

21

A42465

COVER

- pre-cleaner

1шт.

22

A42467

HOUSING

BODY - pre-cleaner

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - collector, pre-cleaner

1шт.

A42284

SCREEN

PRE-SCREENER ASSEMBLY, pre-cleaner, Includes: Ref. 24 - 27

1шт.

24

A22780

SPRING

- screen retaining, pre-cleaner

4шт.

25

A22781

CLIP

- retaining spring, pre-cleaner

2шт.

26

NSS

NOT SOLD SEPARAT

BODY - pre-screener, pre-cleaner

1шт.

27

A42286

SCREEN

- pre-screener, pre-cleaner

1шт.

Выбрано товаров: 23
