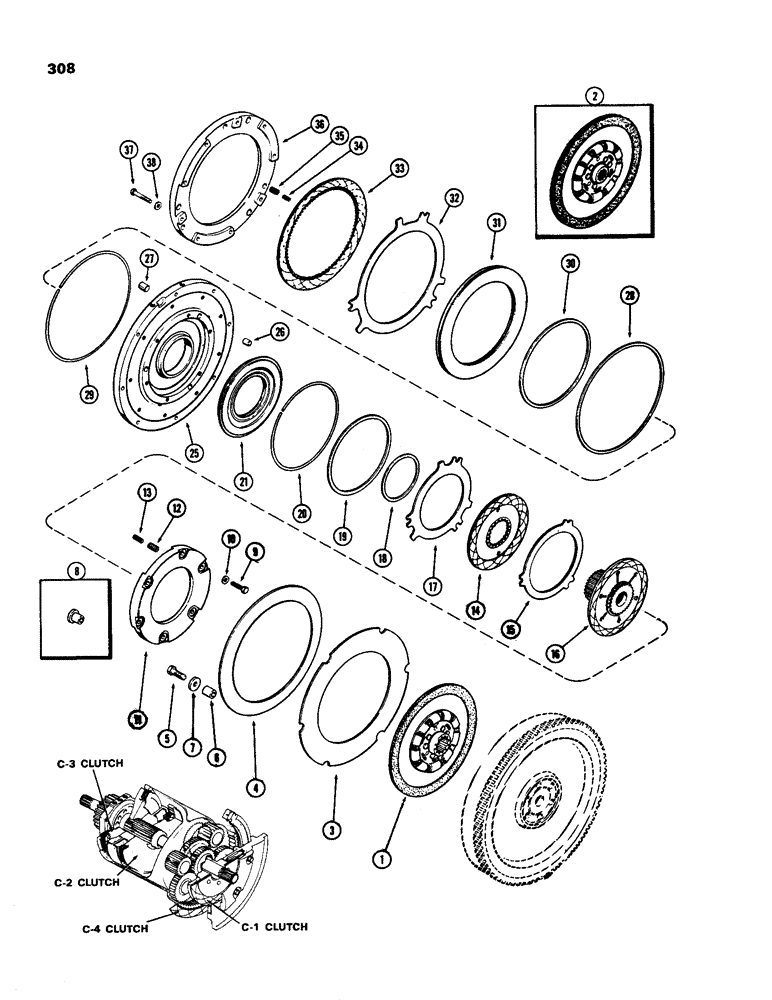

Запчасти Case IH 970 (308) - C-1 AND C-4, POWER SHIFT, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10063614 (06) - POWER TRAIN

1

A65422

SWITCH

PLATE ASSEMBLY - 12" driven member, torque limiter w/ 1-7/8" I.D. spline (1st used trac. ser. no. 8725656)

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

2

A58388

PLATE

ASSEMBLY - 12" driven member, torque limiter w/ 1-1/8" I.D. spline (used prior to trac. ser. no. 8725656)

1шт.

3

A138704

PLATE

- pressure, torque limiter (.094 to .099" thick) (Replaces A58036)

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

4

A61000

SPRING

- Belleville, torque limiter

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

5

113-401

BOLT

- 1/2 x 1-3/4" NC hex

6шт.

6

A140214

SPACER

RETAINER - clutch spring, torque limiter (with A67185 replaces A59133)

6шт.

7

A67195

WASHER

- spring retainer, 1/2 x 1-1/32 x 1/4"

6шт.

8

A59133

RETAINER

- clutch spring, torque limiter

6шт.

9

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- 3/8 x 1-5/8" NC hex

6шт.

10

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A59025)

6шт.

11

A150128

PLATE

- reaction (C-1 clutch) (Replaces A62605)

1шт.

12

A62606

SPRING

- return, 9/16" dia., 1-3/32" free length (C-1 clutch)

3шт.

13

A62607

SPRING

- return, 23/64" dia., 1-3/32" free length (C-1 clutch)

3шт.

14

A142536

PLATE

- clutch, sintered (Replaces A62613, A75971 and A77131)

1шт.

15

A65525

PLATE

- (C-1 clutch) w/ 3 ears (Replaces A62610)

1шт.

16

A150136

GEAR

ASSEMBLY - sun, Includes: plate and snap rings (Replaces A62858, A65419 and A144154)

1шт.

Ref #16 - 3.460" Length of Hub 02/06/96

1шт.

Ref #16 Ref AG 53-76

1шт.

17

A65524

PLATE

- (C-1 clutch) w/ 6 ears (Replaces A58392)

2шт.

18

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (C-1 clutch)

1шт.

Part of clutch seal kit P/N A42886 on Figure 324.

1шт.

19

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (C-1 clutch)

1шт.

Part of clutch seal kit P/N A42886 on Figure 324.

1шт.

20

A62642

ELECTRICAL WIRE

WIRE - piston seal

1шт.

Part of clutch seal kit P/N A42886 on Figure 324.

1шт.

21

A66392

PISTON

- (C-1 clutch) (Replaces A58380) (Order 1-A146670, 1-A150754, 1-A150753, 1-A146682 and 1-A146683), See Figure 238

1шт.

25

A62608

CARRIER

ASSEMBLY - piston (C-1 and C-4 clutch), Includes: Ref. 26 & 27

1шт.

26

A62609

PIN,12.45mm OD x 27.43mm L

- roll, reaction plate (31/64 x 1-5/64") (C-1 clutch)

3шт.

27

A58059

PIN

- roll, reaction plate (31/64 x 3/4") (C-4 clutch)

3шт.

28

A58396

SEAL,318.39mm ID x 3.23mm Thk

- external (C-4 clutch)

1шт.

Part of clutch seal kit P/N A42886 on Figure 324.

1шт.

29

A62643

ELECTRICAL WIRE

WIRE - piston seal

1шт.

Part of clutch seal kit P/N A42886 on Figure 324.

1шт.

30

A58397

SEAL,227.13mm ID x 3.23mm Thk

- internal (C-4 clutch)

1шт.

Part of clutch seal kit P/N A42886 on Figure 324.

1шт.

31

A58395

PISTON

- (C-4 clutch) (Order 1-A1416671, 1-A150752, 1-A150751, 1-A146681 and 1-A146680), See Figure 306

1шт.

32

A58056

PLATE

- steel (C-4 clutch)

1шт.

33

A67128

PLATE

- sintered (C-4 clutch) (Replaces A62563)

1шт.

34

A60596

SPRING

- return, 23/64" dia., 3/4" free length (C-4 clutch)

3шт.

35

A58391

SPRING

- return, 9/16" dia., 3/4" free length (C-4 clutch)

3шт.

36

A58394

PLATE

- reaction (C-4 clutch)

1шт.

37

113-244

X

BOLT - 3/8 x 2-1/2" NC hex

9шт.

38

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A59025)

9шт.
