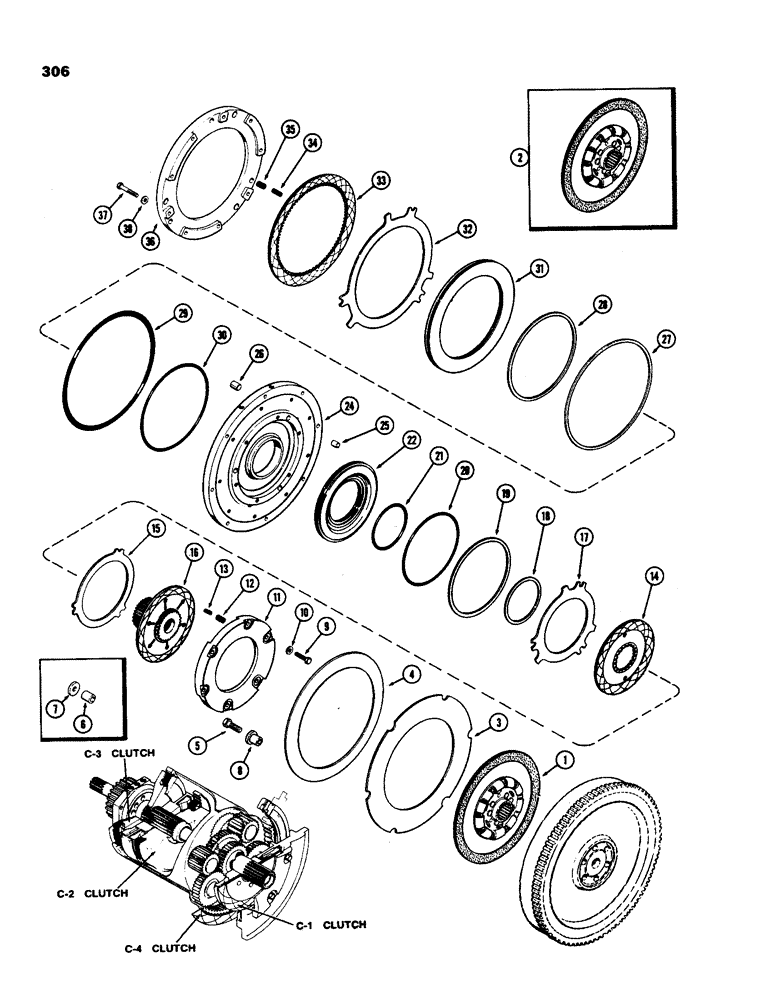

Запчасти Case IH 970 (306) - C-1 AND C-4, POWER SHIFT, FIRST USED TRANSMISSION SERIAL NUMBER 10063614 (06) - POWER TRAIN

1

A153079

SWITCH

PLATE ASSEMBLY - 12" driven member, torque limiter w/ 1-7/8" I.D. spline (1st used trac. ser. no. 8725656) (Replaces A65422)

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

2

A58388

PLATE

ASSEMBLY - 12" driven member, torque limiter w/ 1-1/8" I.D. spline (used prior to trac. ser. no. 8725656)

1шт.

3

A138704

PLATE

- pressure, torque limiter

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

4

A61000

SPRING

- Belleville, torque limiter

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

5

113-401

BOLT

- 1/2 x 3/4" NC hex

6шт.

6

A67195

WASHER

- spring retainer, 1/2 x 1-1/32 x 1/4" (Used with A140214) (Order A153848)

6шт.

7

A140214

SPACER

RETAINER - clutch spring, (Used with A67195) (Order A153848)

6шт.

8

A153848

RETAINER

- clutch spring, torque limiter (Replaces A151076)

6шт.

9

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- 3/8 x 1-5/8" NC hex

6шт.

10

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A59025)

6шт.

11

A150128

PLATE

- reaction (C-1 Clutch) (Replaces A62605)

1шт.

12

A62606

SPRING

- return, 9/16" dia., 1-3.32" free length (C-1 clutch)

3шт.

13

A62607

SPRING

- return, 23/64" dia., 1-3/32" free length (C-1 clutch)

3шт.

14

A142536

PLATE

- clutch, sintered (Replaces A62613, A75971 and A77131)

1шт.

15

A65525

PLATE

- (C-1 clutch) w/ 3 ears (Replaces A62610)

1шт.

16

A150136

GEAR

ASSEMBLY - sun, Includes: plate and snap rings (Replaces A62858, A65419, and A144154)

1шт.

17

A65524

PLATE

- (C-1 clutch) w/ 6 ears (Replaces A58392)

2шт.

18

A146683

RING

SEAL - internal (C-1 clutch)

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

19

A146682

RING

SEAL - external (C-1 clutch)

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

20

A150753

O-RING,7.84" ID x 0.107"

- piston O.D. (C-1 clutch) 7-3/4 x 7-1/4 x 3/32"

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

21

A150754

O-RING,4.718" ID x 0.107"

- piston I.D. (C-1 clutch) 4-11/16 x 4-1/4 x 3/32"

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

22

A146670

PISTON

- (C-1 clutch) (Replaces A58380)

1шт.

24

A62608

CARRIER

ASSEMBLY - piston (C-1 and C-4 clutch), Includes: Ref. 25 & 26

1шт.

25

A62609

PIN,12.45mm OD x 27.43mm L

- roll, reaction plate (31/64 x 1-5/64') (C-1 clutch)

3шт.

26

A58059

PIN

- roll, reaction plate (31/64 x 3/4") (C-4 clutch)

3шт.

27

A146680

RING

SEAL - external (C-4 clutch)

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

28

A146681

SEAL

SEAL - internal (C-4 clutch)

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

29

A150751

O-RING,12.09" ID x 0.107"

- piston O.D. (C-4) 12-3/32 x 12-1/4 x 3/32"

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

30

A150752

O-RING,9.206" ID x 0.107" OD

- piston I.D. (C-4) 9-3/32 x 9-1/4 x 3/32"

1шт.

Part of clutch seal kit P/N A46286 on Figure 322.

1шт.

31

A146671

PISTON

- (C-4 clutch)

1шт.

32

A58056

PLATE

- steel (C-4 clutch)

1шт.

33

A67128

PLATE

- sintered (C-4 clutch) (Replaces A62563)

1шт.

34

A60596

SPRING

- return, 23/64" dia., 3/4" free length (C-4 clutch)

3шт.

35

A58391

SPRING

- return, 9/16" dia., 3/4" free length (C-4 clutch)

3шт.

36

A58394

PLATE

- reaction (C-4 clutch)

1шт.

37

113-244

X

BOLT - 3/8 x 2-1/2" NC hex

9шт.

38

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A59025)

9шт.
