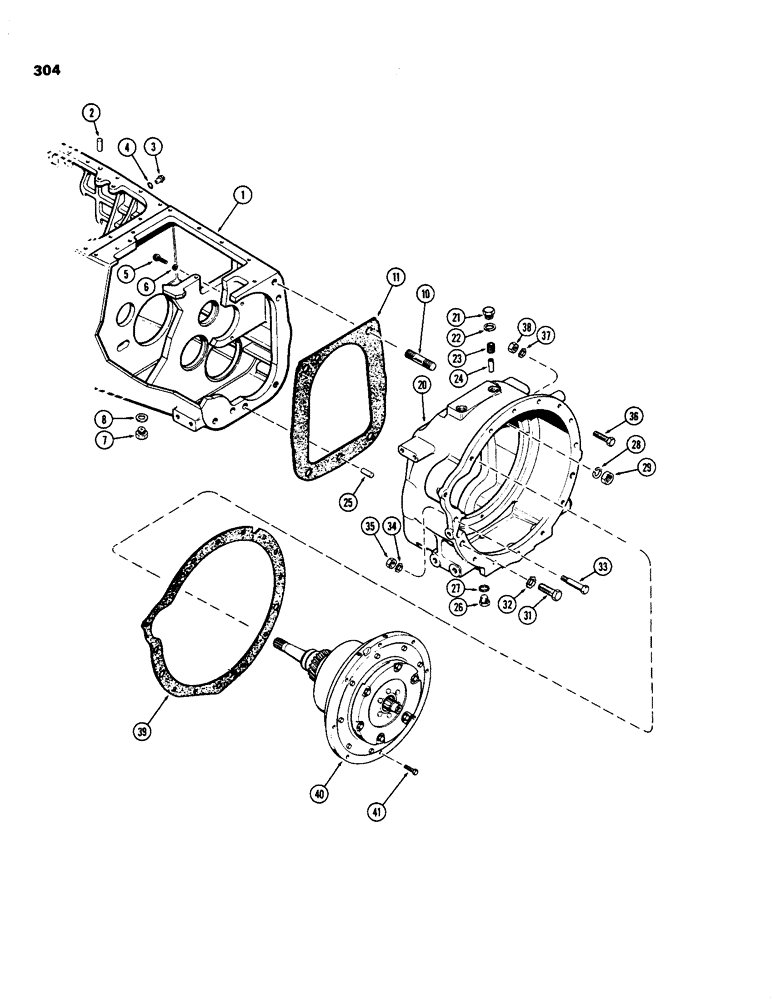

Запчасти Case IH 970 (304) - TRANSMISSION AND CLUTCH HOUSINGS, POWER SHIFT (06) - POWER TRAIN

1

A61180

HOUSING

- transmission

1шт.

2

A7077

DOWEL

PIN - dowel, 1/2 x 1-3/8" (trans. hsg. to top cover)

2шт.

3

A58420

GAUGE

ASSEMBLY - oil sight (Glass), Includes: Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 3/32 x 5/8 x 13/16"

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

A140222

PLUG

- drain, 3/4" (Replaces A14280)

3шт.

8

A58608

GASKET

- plug, 3/4 x 1 x 5/64"

3шт.

10

A151866

STUD

- 7/8" NF x 4"

4шт.

11

A58138

GASKET

- trans. hsg. to clutch hsg.

1шт.

20

A58137

HOUSING - clutch

1шт.

21

214389

PLUG,3/4" - 16 ORB

Includes Ref. 22 Hex Hd, 3/4"-16 ORB

2шт.

22

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 x 11/16 x 3/32"

1шт.

23

A58050

PLUG

- piston oil tube

2шт.

24

A58049

TUBE

- oil, piston

2шт.

25

A28269

PIN

- dowel, housing locating

2шт.

26

A140222

PLUG

- drain, 3/4" (Replaces A14280)

2шт.

27

A58608

GASKET

- plug, 3/4 x 1 x 5/64")

2шт.

28

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

29

25-1114

NUT,7/8"-14, G5

- 7/8" Nf hex

4шт.

31

113-753

BOLT - 3/4 x 2-1/4" NC hex (Eng. to clutch hsg.)

2шт.

32

A34651

LOCK WASHER

- Shakeproof, 3/4" ext.

2шт.

33

A61040

STEP BOLT

BOLT - 1/2 x 3" NC hex, dowel (Eng. to clutch hsg.)

1шт.

33

A61041

STEP BOLT

BOLT - 1/2 x 2-3/16" NC hex, dowell (Eng. to clutch hsg.)

1шт.

34

A34650

LOCK WASHER

- Shakeproof, 1/2" ext.

2шт.

35

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" NC hex

2шт.

36

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Eng. to clutch housing Hex, 1/2"-13 x 1 5/8", G5

5шт.

36

113-465

BOLT

- 1/2 x 2" NC hex (Eng. to clutch hsg.)

2шт.

36

113-2417

BOLT

- 1/2 x 2-1/2" NC hex special

1шт.

36

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

BOLT - 1/2 x 2" NC Ferry cap (Eng. to clutch hsg.)

3шт.

37

A34650

LOCK WASHER

- Shakeproof, 1/2" ext.

11шт.

38

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" NC hex

1шт.

39

A58139

GASKET

- clutch, Serial Range: hsg.-eng.

1шт.

40

REF

INSTRUCTION

CLUTCH ASSEMBLY - power shift and planetary

1шт.

Not available as an assembled unit. Order components. See Figures 306 - 322.

1шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

8шт.
