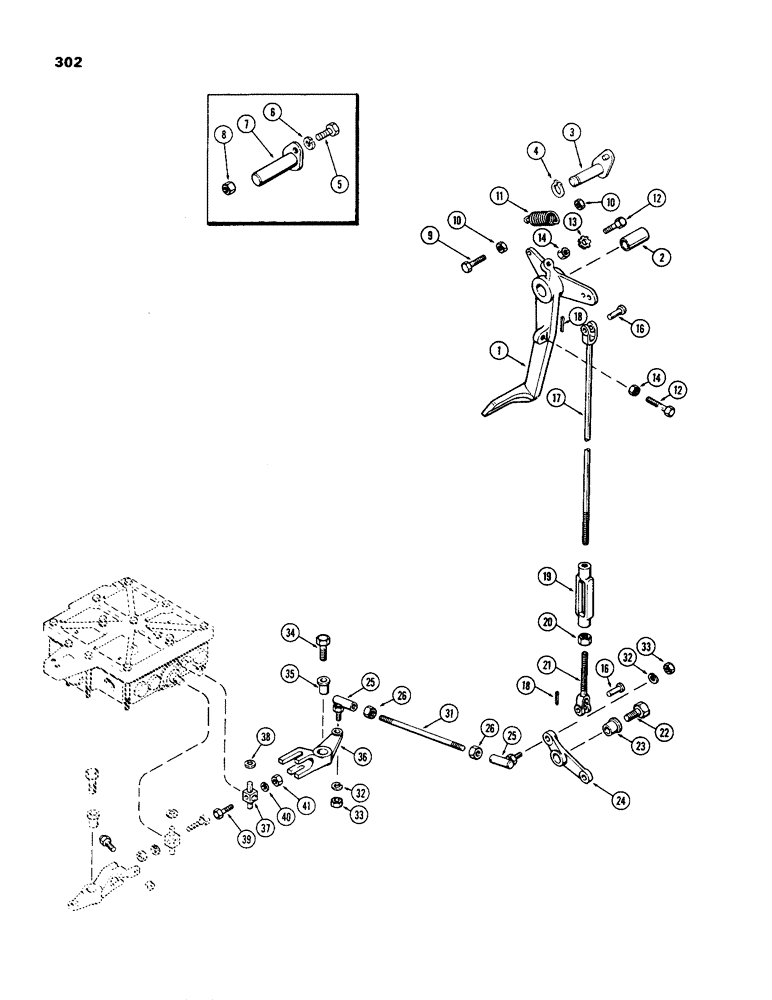

Запчасти Case IH 970 (302) - CLUTCH CONTROLS, POWER SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A60300
PEDAL
ASSEMBLY - foot clutch, Includes: Ref. 2
1шт.
2
A59475
BUSHING
- clutch pedal
1шт.
3
A143472
SHAFT
- pivot, clutch pedal
1шт.
4
A33531
SNAP RING,#75, Ext
Ring, Snap, , pivot shaft #75, Ext
1шт.
5
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
6
92-5
LOCK WASHER,5/16"
1шт.
7
A60305
SHAFT
- pivot, foot clutch pedal (Order 1-A143472 and 1-A33531)
1шт.
8
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex
1шт.
9
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
10
25-146
JAM NUT,Jam, 3/8"-16, G5
- 3/8" N. hex., jam
2шт.
11
A137396
SPRING
- tension, clutch return (Replaces A63361)
1шт.
12
A59472
BOLT
- stop, clutch pedal
2шт.
13
193-9
LOCK WASHER,Ext Tooth, 5/16"
WASHER, LOCK, Ext Tooth, 5/16"
1шт.
14
25-145
JAM NUT,Jam, 5/16"-18, G5
- 5/16" N.C. hex., jam
2шт.
16
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"
2шт.
17
A60310
LINK
- upper, clutch adjusting
1шт.
18
132-30
COTTER PIN,3/32" x 1 1/4"
Pin, Split (Cotter), 3/32" x 1 1/4"
2шт.
19
A60303
TURNBUCKLE
- clutch adjusting links, 3/8"
1шт.
20
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
1шт.
21
A60313
LINK
- lower, clutch adjusting
1шт.
22
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
23
A59772
BUSHING
- clutch operating lever
1шт.
24
A59177
LEVER
- clutch operating
1шт.
25
A60307
JOINT
BALL JOINT - clutch rod connecting
2шт.
26
25-156
JAM NUT,Jam, 3/8"-24, G5
- 3/8" N.C. hex., jam
2шт.
31
A60304
ROD
- clutch, Serial Range: lever-spool
1шт.
32
92-6
LOCK WASHER,3/8"
2шт.
33
25-156
JAM NUT,Jam, 3/8"-24, G5
- 3/8" N.C. hex
2шт.
34
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
35
A59772
BUSHING
- spool lever
1шт.
36
A60308
LEVER
- clutch spool
1шт.
37
A59150
LINK
- clutch spool
1шт.
38
A59773
RING
- retaining, spool link
1шт.
39
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
40
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
41
25-104
NUT,1/4"-20, G5
1шт.
Выбрано товаров: 36
