Запчасти Case IH 970 (300) - SIDE RAIL ATTACHMENT (05) - STEERING

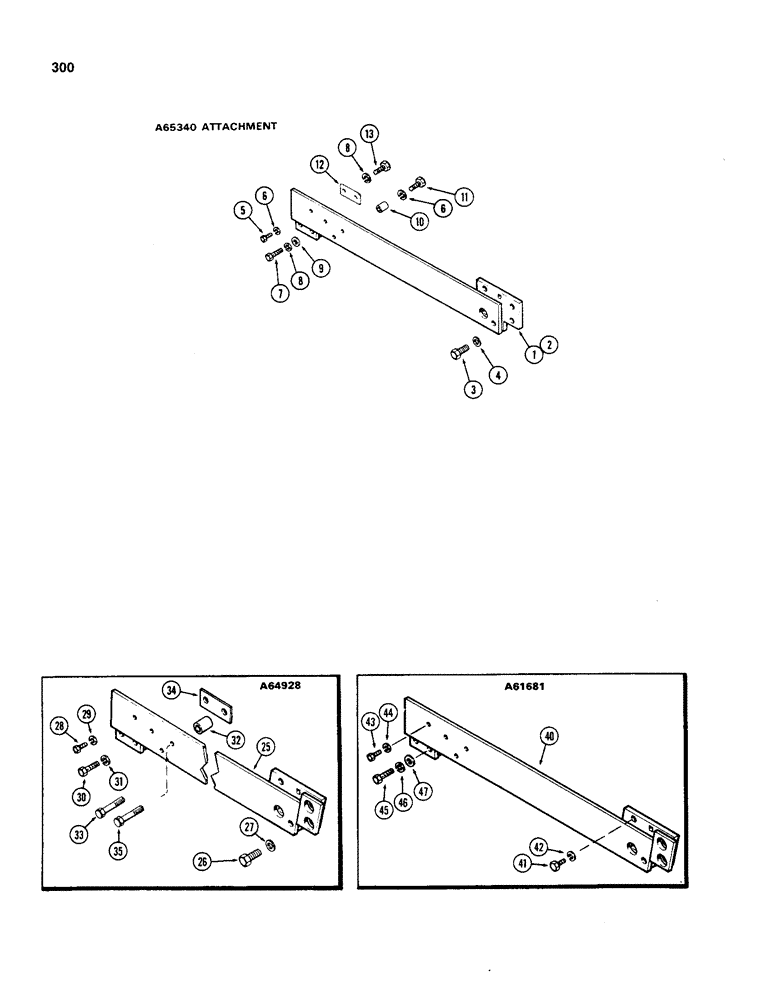

Схема запчастей Case IH 970 - (300) - SIDE RAIL ATTACHMENT (05) - STEERING
6
4
34
8
27
6
32
9
10
13
42
29
41
47
1
43
12
44
31
5
3
33
46
8
2
35
11
25
28
30
7
40
26
45

Артикул

Название

Примечание

Количество

A65340

SIDE RAIL ATTACHMENT - (1/2" thick rails) (Mach. Item) (Replaces A64928), Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

RAIL - side, RH (1/2" thick)

1шт.

2

NSS

NOT SOLD SEPARAT

RAIL - side, LH (1/2" thick)

1шт.

3

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

A64699

SPACER - strap, step adapter

2шт.

10

A64735

SPACER - upper, step adapter (11/16 x 1-1/8 x 1-1/2")

2шт.

11

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- 1/2 x 3-1/4" NC hex (LH side w/ step)

2шт.

12

A64699

SPACER - strap, step adapter

1шт.

13

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(LH side w step) Hex, 5/8"-11 x 3 1/4", G5

4шт.

A64928

SIDE RAIL ATTACHMENT - (Mach. Item) (3/4" thick rails) (1st used trac. ser. no. 8693001) (Order A65340), Includes: Ref. 25 - 35

1шт.

25

A61346

RAIL - RH side (3/4" thick)

1шт.

25

A61347

RAIL - LH side (3/4" thick)

1шт.

26

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

27

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

30

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

31

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

A64735

SPACER - upper, step adapter

2шт.

33

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- 1/2 x 3-1/4" NC hex

2шт.

34

A64699

SPACER - lower, step adapter

2шт.

35

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

A61681

SIDE RAIL ATTACHMENT - (Mach. Item) (used prior to trac. ser. no. 8693001) (3/4" thick rails), Includes: Ref. 40 - 47

1шт.

40

A61346

RAIL - RH side (3/4" thick)

1шт.

40

A61347

RAIL - LH side (3/4" thick)

1шт.

41

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

42

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

43

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

44

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

45

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

46

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

47

195-2097

WASHER,15/16" x 1 3/4" x .083"

- 15/16 x 1-3/4 x 14 ga.

4шт.

Выбрано товаров: 37
