(296) - FRONT END WEIGHTS

Запчасти Case IH 970 (296) - FRONT END WEIGHTS (05) - STEERING

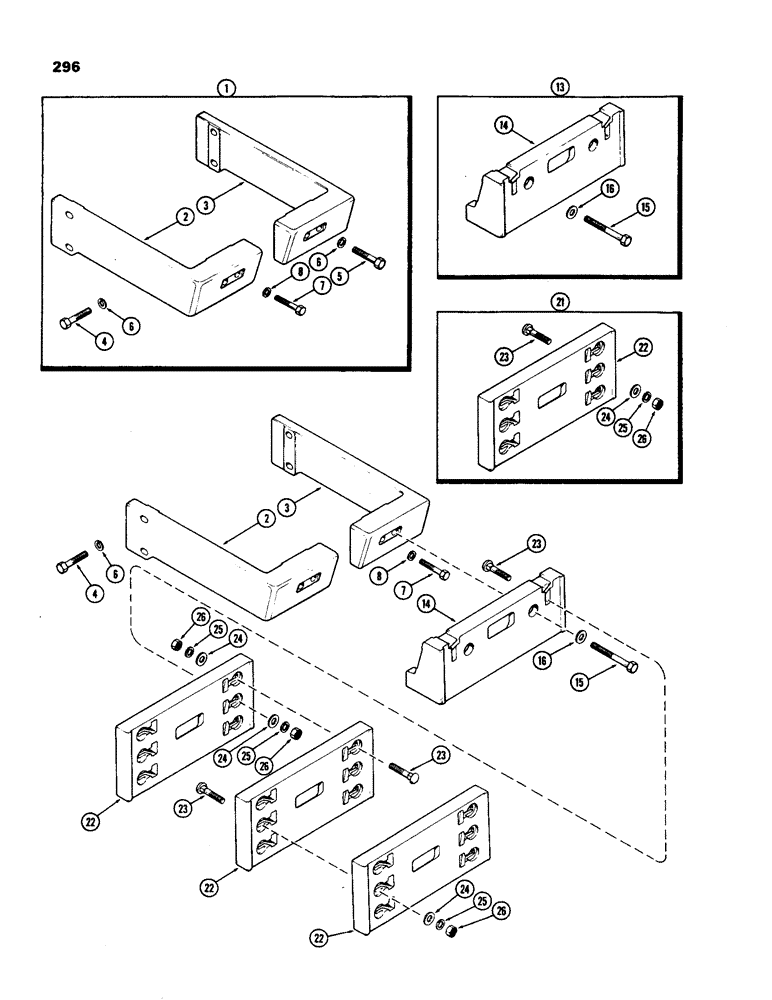

Схема запчастей Case IH 970 - (296) - FRONT END WEIGHTS (05) - STEERING
25
21
6
16
25
23
6
25
8
24
25
2
2
1
7
24
24
3
15
22
23
4
14
6
15
13
4
26
26
5
3
14
8
23
22
24
22
16
23
7
22
26
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60536

WEIGHT

KIT - front end wrapper (Mach Item), Includes: Ref. 2 - 8

1шт.

2

A59352

WEIGHT

- wrapper, R.H. (Mach. Item)

1шт.

3

A59353

WEIGHT

- wrapper, LH (Mach. Item)

1шт.

4

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex

4шт.

5

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A60537

WEIGHT

KIT - adapter, front end wrapper (Mach. Item) (Used w/ A60536 weight kit) (1 adapter only per tractor), Includes: Ref. 14 - 16

1шт.

14

A59354

ADAPTER

- wrapper weight (Mach. Item)

1шт.

15

A59351

BOLT

- 3/4" x 7" NC hex

2шт.

16

195-46

WASHER,3/4" x 1 3/4" x .148"

- 13/16 x 1-3/4 x 5/32"

2шт.

21

A60538

WEIGHT

KIT - additional, front end wrapper (used w/ A60537 weight kit) (Mach. Item), Includes: Ref. 22 - 26

1шт.

22

A59355

WEIGHT

- additional front end (Mach. Item)

1шт.

23

111-708

CARRIAGE BOLT,Short NK, 3/4"-10 x 4", G2

BOLT - 3/4 x 4" NC carr.

2шт.

24

195-46

WASHER,3/4" x 1 3/4" x .148"

- 13/16 x 1-3/4 x 5/32"

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.
