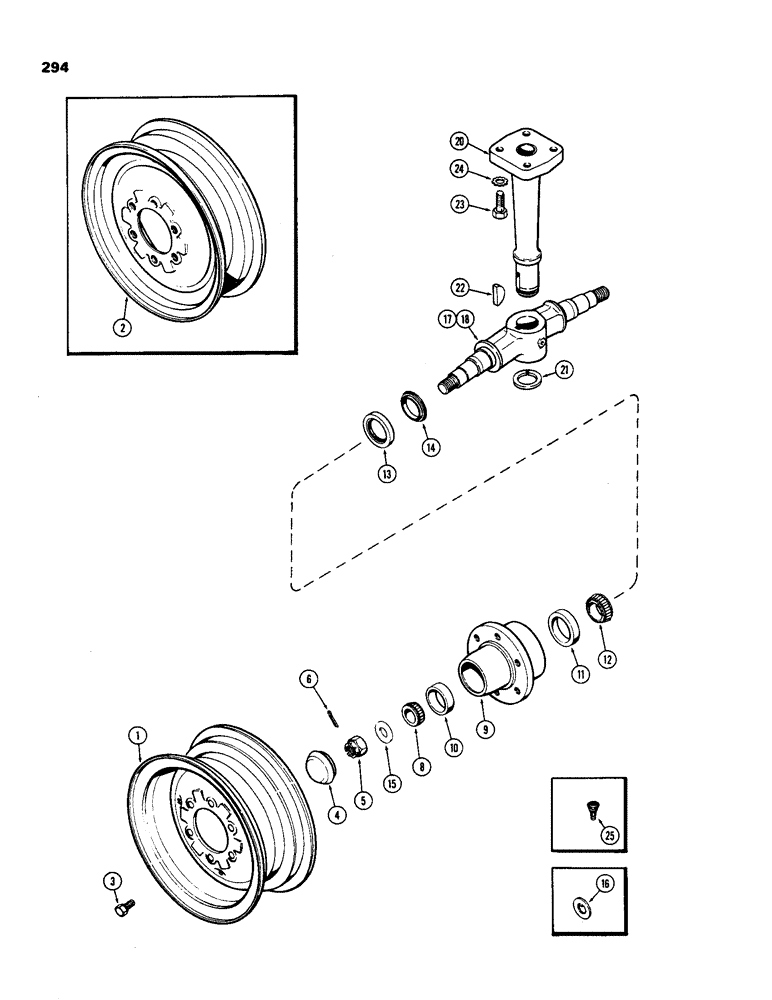

Запчасти Case IH 970 (294) - DUAL FRONT WHEELS (05) - STEERING

1

G57007

WHEEL

- front, 1-1/8" offset (takes 7.50 x 15 tire)

2шт.

2

A29050

WHEEL

- front, 2-1/4" offset (takes 6.00 x 16 tire)

2шт.

3

B18264

WHEEL BOLT

BOLT - 9/16" - 18 x 1-3/32" special

12шт.

4

A29425

CAP

- hub

2шт.

5

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" NF hex, slotted

2шт.

6

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

8

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing (1-3/8" ID)

2шт.

9

A57338

HUB ASSEMBLY - dual front wheel, Includes: Ref. 10 & 11

2шт.

10

A27361

HOSE

CUP - outer bearing (2-7/8" OD)

1шт.

11

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing (3-17/64" OD)

1шт.

12

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing (1-3/4" ID)

2шт.

A57250

OIL SEAL

KIT - oil seal, Includes: Ref. 13 & 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - oil, outer (Order A57250)

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, inner (Order A57250)

1шт.

15

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle (plain) (1st used trac. ser. no. 8693001)

2шт.

16

A26789

BEARING WASHER

WASHER - spindle (w/ tongue) (For spindle w/ slot) (Used prior to trac. ser. no. 869.3001)

2шт.

17

A62917

STEERING KNUCKLE

SPINDLE - dual wheel (w/o groove) (1st used trac. ser. no. 8693001)

1шт.

18

A57258

SPINDLE

- dual wheel (w/ groove) (Used prior to trac. ser. no. 8693001) (Order 1-A62917 and 2-A62918)

1шт.

20

A32184

PEDESTAL - dual wheel

1шт.

21

A28217

RING - snap, spindle retaining

1шт.

22

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - Woodruff, 3/8 x 2-1/8"

1шт.

23

114-622

X

BOLT - 5/8 x 2" NF hex

4шт.

24

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

25

A38261

VALVE

- rim, tubeless tire

1шт.
