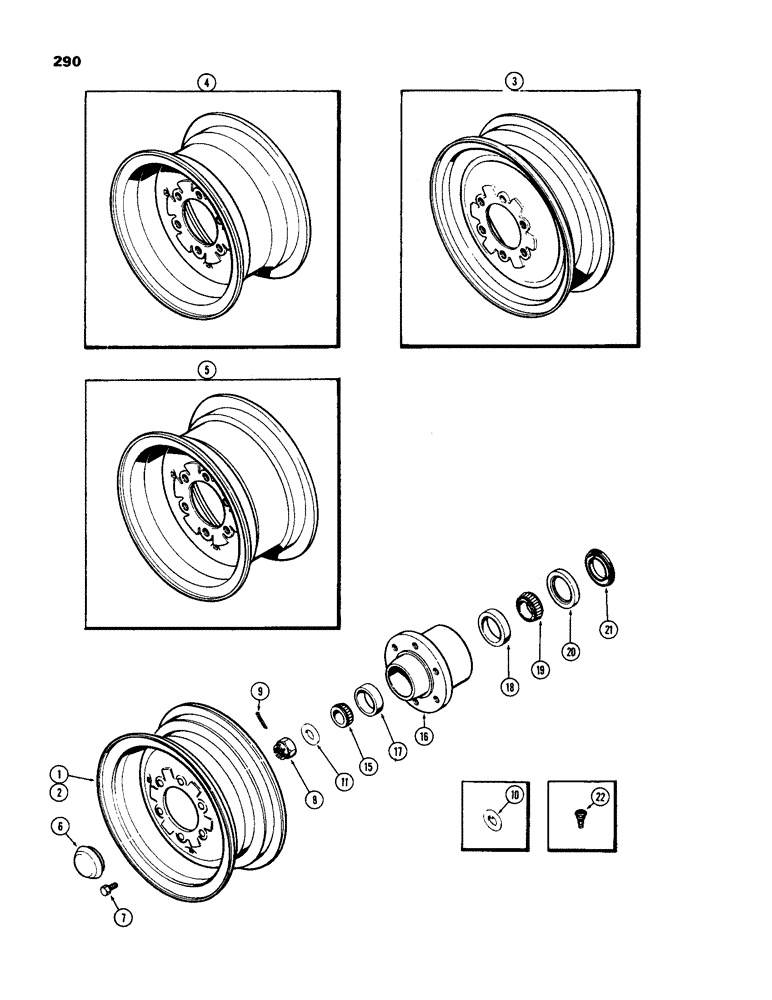

Запчасти Case IH 970 (290) - FRONT WHEELS, WITH 6 BOLT HUB (05) - STEERING

1

G57007

WHEEL

- front, 1-1/8" offset (takes 7.50 x 15 tire)

2шт.

2

G57046

WHEEL ASSY.

WHEEL - front, 1-1/8" offset (takes 7.50 x 16 tire)

2шт.

3

A29050

WHEEL

- front, 2-1/4" offset (takes 6.00 x 16 tire)

2шт.

4

A60405

WHEEL

- front, 1-1/8" offset (takes 10.00 x 16 tire)

2шт.

Ref #4 - Can also be for 11.00 X 16 Tires 02/06/96

1шт.

5

A57879

RIM

WHEEL - front, 1-1/8" offset (takes 11.00 x 15 tire)

2шт.

6

A29425

CAP

- hub

2шт.

7

B18264

WHEEL BOLT

BOLT - 9/16"-18 x 1-3/32" spec.

12шт.

8

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" NF hex, slotted

2шт.

9

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

10

A26789

BEARING WASHER

WASHER - spindle (w/ tongue) (for spindle w/ slot)

2шт.

11

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- plain

2шт.

15

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing (1-3/8" ID)

2шт.

16

A57336

HUB

ASSEMBLY - front wheel, Includes: Ref. 17 & 18

2шт.

17

A27631

CUP

- outer bearing (2-7/8" OD)

1шт.

18

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing (3-17/64" OD)

1шт.

19

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing (1-34" ID)

2шт.

A57250

OIL SEAL

KIT - oil seal, Includes: Ref. 20 & 21

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL - oil, outer (Order A57250)

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, inner (Order A57250)

1шт.

22

A38261

VALVE

- rim, tubeless tire

1шт.
