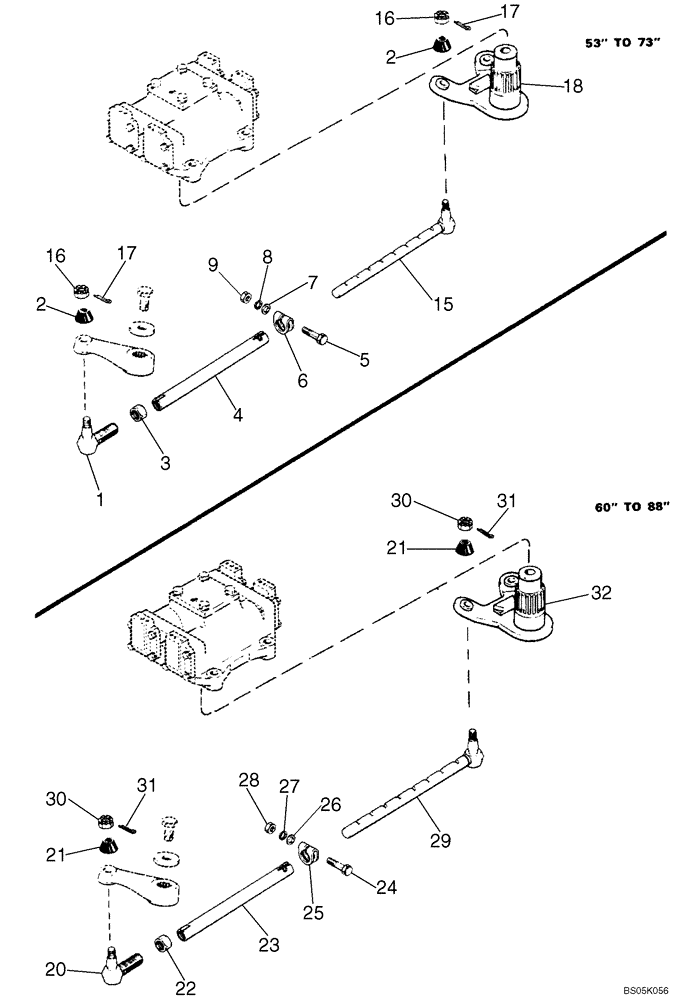

Запчасти Case IH 970 (286) - FRONT AXLE TIE RODS, 53" TO 73" TREAD, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

1

A44762

ROD

END - tie rod (Replaces A41512)

2шт.

2

A45102

BOOT

SEAL - end, tie rod (Replaces A41515)

4шт.

3

A41511

NUT

- 1" - 16 R.H. thread, jam

2шт.

4

A59657

TUBE

- tie rod (14-11/16" long) (53" to 73" tread)

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex

2шт.

6

A41561

CLAMP

- tie rod

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

15

A59656

ROD

- tie (6 notches) (53" to 73" tread)

2шт.

16

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex., sltd

4шт.

17

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

18

REF

INSTRUCTION

ARM - center steering (Part of actuator, Figures 270 and 272)

1шт.

20

A44762

ROD

END - tie rod (Replaces A41512), 60" to 88" tread

2шт.

21

A45102

BOOT

SEAL - end, tie rod (Replaces A41515), 60" to 88" tread

4шт.

22

A41511

NUT

- 1"-16 R.H. thread, jam, 60" to 88" tread

2шт.

23

A59659

TUBE

- tie rod (18-3/8" long) (60" to 88" tread)

2шт.

24

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex, 60" to 88" tread

2шт.

25

A41561

CLAMP

- tie rod, 60" to 88" tread

2шт.

26

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64"), 60" to 88" tread 1/2"

2шт.

27

92-8

LOCK WASHER,1/2"

60" to 88" tread 1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- 1/2" NC hex, 60" to 88" tread

2шт.

29

A143028

ROD

- tie (8 notches) (60" to 88" tread) (Replaces A59658 and A45380)

2шт.

30

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex. sltd, 60" to 88" tread

4шт.

31

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), (60" to 88" tread) 1/8" x 1 1/8"

4шт.

32

REF

INSTRUCTION

ARM - center stering (Part of actuator, Figures 270 and 272), 60" to 88" tread

1шт.
