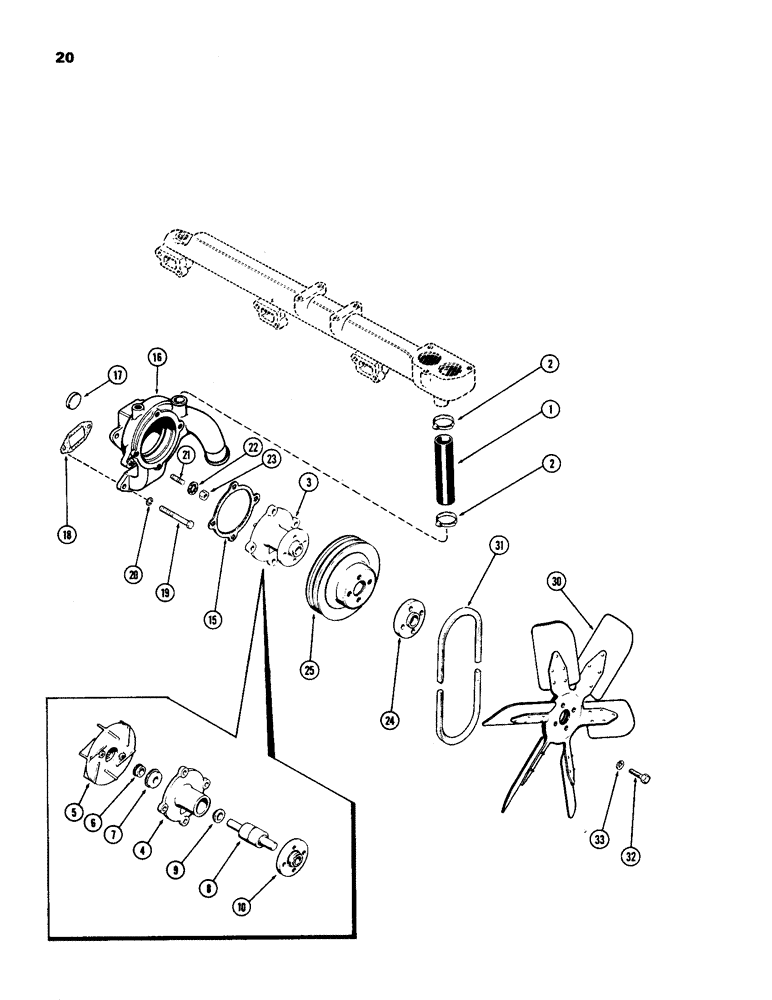

Запчасти Case IH 970 (020) - WATER PUMP, (401B) DIESEL ENGINE (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water pump by-pass, 1-1/4 ID x 5-5/16"

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose, 1-3/16 to 1-3/4"

2шт.

3

A62972

PUMP

PUMP ASSEMBLY - water (with plastic impeller) (Order A152179), Includes: Ref. 4 - 10

1шт.

3

A152179

PUMP

PUMP ASSEMBLY - water (Cast iron impeller), Includes: Ref. 4 - 10

1шт.

3

1998700C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

3

A48331

CORE-WATER PUMP

Return Number, Water Pump

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

5

NSS

NOT SOLD SEPARAT

IMPELLER - water (Plastic) (Order A152124)

1шт.

5

A152124

IMPELLER

IMPELLER - water (Cast iron)

1шт.

6

A34000

SEAL

SEAL - impeller

1шт.

7

A142499

SEAL

SEAL - shaft

1шт.

8

A59056

BEARING ASSY

SHAFT ASSEMBLY - with bearing, Includes: Ref. 9

1шт.

9

Q829325

BUSHING

- water

1шт.

10

A58742

HUB

HUB - fan and pulley

1шт.

15

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

16

A58779

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 17

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup type

1шт.

18

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

A62234

STUD

STUD - 3/8" NC x .1-3/8"

4шт.

22

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

23

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" NC hex

4шт.

24

A61268

BUSHING

SPACER - fan blade (1")

1шт.

25

A58837

PULLEY

PULLEY - fan driven

1шт.

30

A15606

FAN

FAN

1шт.

31

A65143

V-BELT,0.69" W x 58.25" L

Fan, Replaces A59763

1шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

4шт.

33

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.
