Запчасти Case IH 970 (284) - ADJUSTABLE FRONT AXLE, 60" TO 88" TREAD, USED PRIOR TO TRACTOR SERIAL NUMBER 8727601 (05) - STEERING

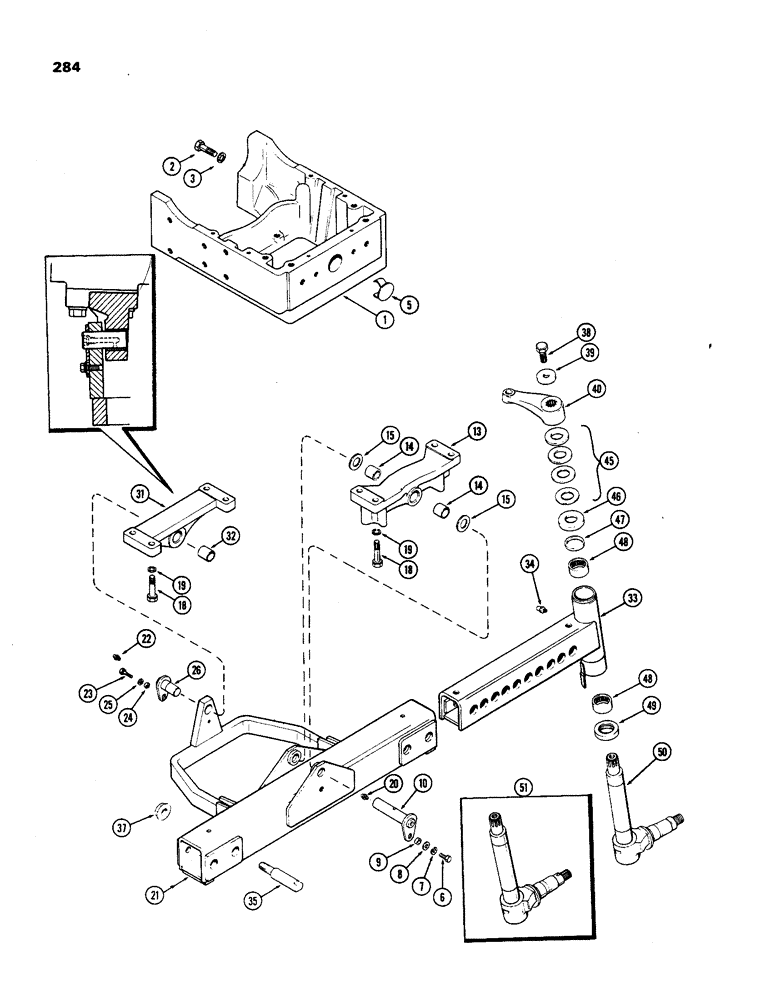

Схема запчастей Case IH 970 - (284) - ADJUSTABLE FRONT AXLE, 60" TO 88" TREAD, USED PRIOR TO TRACTOR SERIAL NUMBER 8727601 (05) - STEERING
19
47
1
32
18
38
39
15
21
45
20
7
18
23
49
14
31
14
35
25
50
5
22
34
46
15
8
24
51
19
26
10
3
6
40
48
48
33
13
37
2
9

Артикул

Название

Примечание

Количество

1

A59158

SUPPORT

- front axle

1шт.

2

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

3

A34651

LOCK WASHER

- Shakeproof, 3/4" ext.

4шт.

5

A35216

COVER

PLUG - 2-1/4" dia.

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

A37627

WASHER

- 13/32 x 1-1/2 x 3/16"

1шт.

9

A59660

SPACER

- pivot pin

1шт.

10

A60568

PIN,31.67mm OD x 158.5mm L

- pivot

1шт.

13

A66039

SUPPORT

ASSEMBLY - axle pivot, front (Replaces A62028), Includes: Ref. 14

1шт.

14

A59613

BUSHING,31.7mm ID x 38.18mm OD x 32mm L

- 1-1/4 x 1-1/2 x 1-1/4"

2шт.

15

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- thrust, pivot pin

2шт.

18

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

8шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT, str.

1шт.

21

A60592

AXLE ASSEMBLY - center section, Includes: Ref. 22 - 26

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT, str.

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

24

A59660

SPACER

- pivot pin, 13/32 x 9/16 x 9/32"

1шт.

25

195-25

WASHER,3/8"

- 13/32 x 13/16 x 5/64"

1шт.

26

A59628

PIN

- pivot, rear support

1шт.

31

A59614

SUPPORT

ASSEMBLY - axle pivot, rear, Includes: Ref. 32

1шт.

32

A59615

BUSHING,31.81mm ID x 38.2mm OD x 38.3mm L

- 1-1/4 x 1-1/2 x 1-1/2"

1шт.

33

A62312

SHAFT

AXLE - end section, R.H.

1шт.

33

A62313

SHAFT

AXLE - end section, LH

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT, str.

2шт.

35

A64756

STEP BOLT

BOLT - shoulder, end section mtg. (Replaces A59172)

4шт.

37

A65435

LOCK NUT

- 7/8" NC hex, flanged (Replaces A59649)

4шт.

38

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

39

A65598

WASHER

- spindle (1st used trac. ser. no. 8746251)

2шт.

39

A59653

WASHER

- spindle (used prior to trac. ser. no. 8716251)

2шт.

40

A57323

ARM

- steering, R.H.

1шт.

A57323 should read LH arm

1шт.

40

A57322

ARM

- steering, LH

1шт.

A57322 should read RH arm

1шт.

45

A24639

SHIM,.1345" Thk

Spindle (#10 gauge) .1345" Thk

1шт.

45

A24642

SHIM,.0598" Thk

Spindle (#16 gauge) .0598" Thk

1шт.

45

A24643

SHIM,.0359" Thk

Spindle (#20 gauge) .0359" Thk

1шт.

45

A24645

SHIM,.0149" Thk

Spindle (#28 gauge) .0149" Thk

1шт.

46

A7849

GUARD

SHIELD - dust, spindle upper

2шт.

47

A57273

OIL SEAL

- oil, spindle upper

2шт.

48

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, upper and lower spindle

4шт.

49

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle lower

2шт.

50

A62915

SPINDLE

- wheel (w/o slot) (1st used trac. ser. no. 8693001)

2шт.

51

A62316

SPINDLE

- wheel (w/o slot) (Used prior to trac. ser. no. 8693001)

2шт.

Выбрано товаров: 45
