Запчасти Case IH 970 (276) - A60207 STEERING VALVE (05) - STEERING

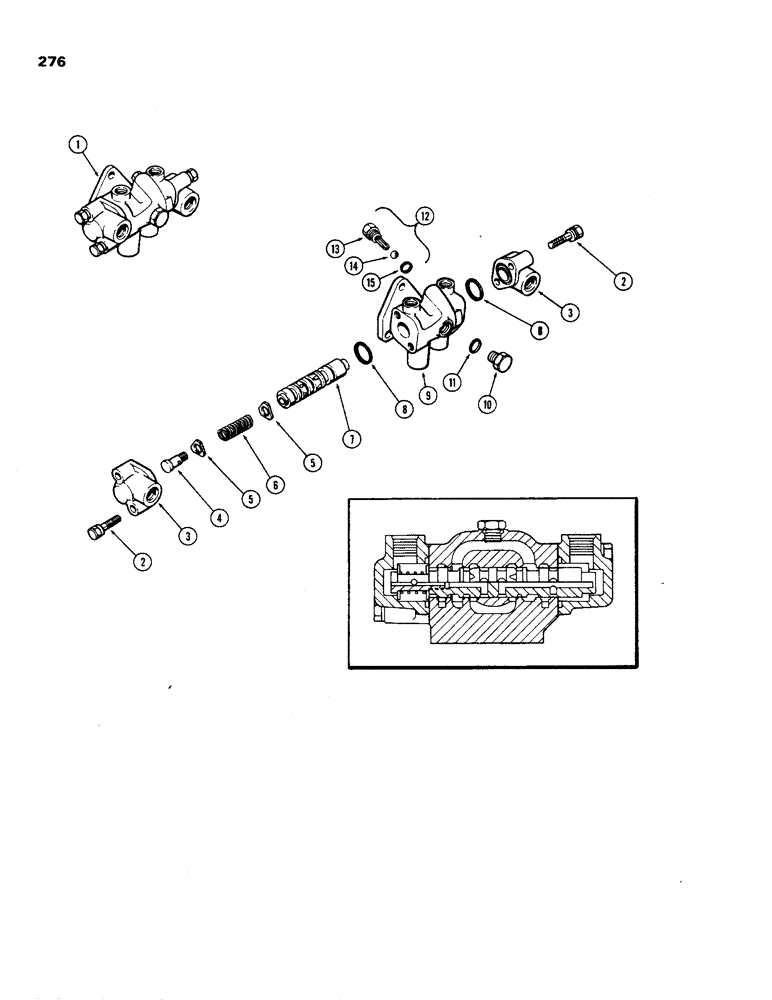

Схема запчастей Case IH 970 - (276) - A60207 STEERING VALVE (05) - STEERING
5
13
15
5
1
4
12
10
11
8
7
6
2
6
3
3
14
9
2

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSEMBLY - steering, Includes: Ref. 2 - 15

1шт.

2

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - 3/8" NC hex spec., w/ washer

4шт.

3

F19624

CAP

- end

2шт.

4

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

5

F19619

WASHER

- centering

2шт.

6

A42201

SPRING

- centering

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

8

F21003

O-RING,1.237" ID x 1.443" OD

- 1-1/4 x 1-29/64 x 1/8"

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

10

129998

PLUG,1/2" - 20 ORB

Assy. bleed, Incl. Ref. 11 Hex Hd, 1/2"-20 ORB

1шт.

12

F82943

VALVE

KIT - plug, Includes: Ref. 13 - 15

1шт.

13

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

14

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

15

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

Выбрано товаров: 15
