Запчасти Case IH 970 (274) - A64505 STEERING ACTUATOR, WITH ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NUMBER 8693001 TO 8726609 (05) - STEERING

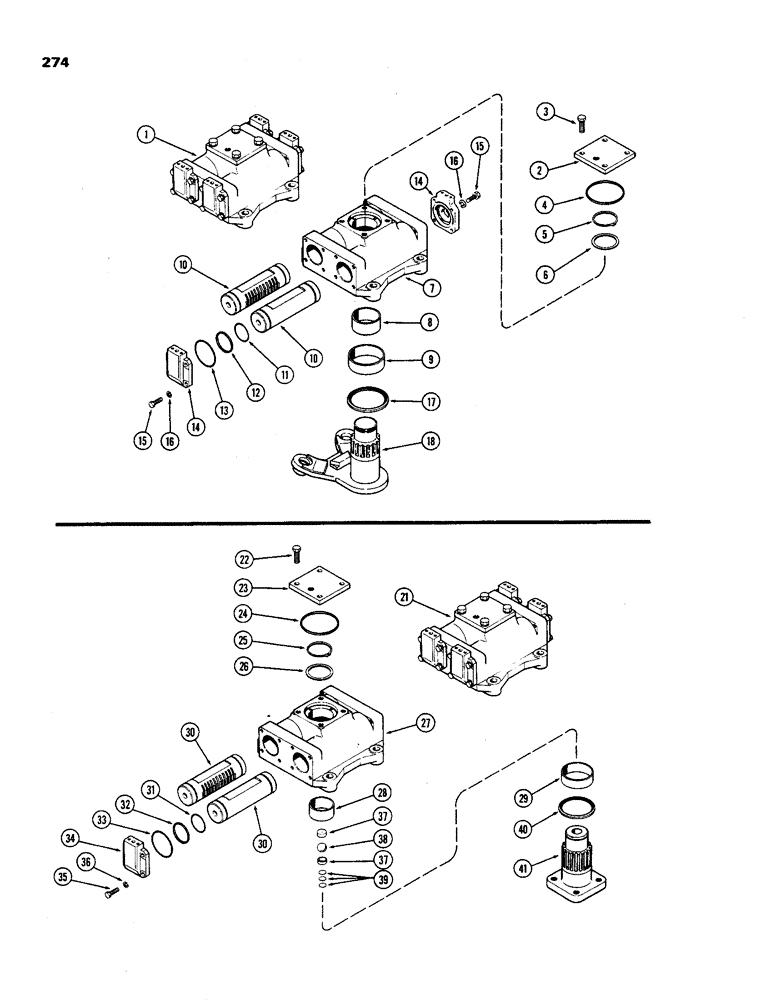

Схема запчастей Case IH 970 - (274) - A64505 STEERING ACTUATOR, WITH ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NUMBER 8693001 TO 8726609 (05) - STEERING
3
37
2
16
15
5
14
26
10
21
31
39
23
10
18
24
4
25
35
16
22
14
13
17
11
30
27
40
15
7
29
41
33
6
30
9
1
34
37
36
8
32
38
28
12

Артикул

Название

Примечание

Количество

1

A64505

ACTUATOR

ASSEMBLY - complete, Includes: Ref. 2 - 18

1шт.

2

A60218

COVER

- top, housing

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

A60219

SEALING RING

O-RING - cover seal (4 x 4-17/64 x 9/64")

1шт.

Part of seal kit P/N A42399.

1шт.

5

A60216

SNAP RING,#250, Ext

Ring, Snap, , spindle #250, Ext

1шт.

6

A60215

WASHER

- thrust, spindle

1шт.

7

A60209

HOUSING

ASSEMBLY - actuator, Includes: Ref. 8 & 9

1шт.

8

A60210

BUSHING

- top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

9

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

10

A64908

PISTON

- actuator (Replaces A59285)

2шт.

11

A60212

O-RING

- piston (1-5/16 x 2-1/8 x 3/32")

4шт.

Part of seal kit P/N A42399.

1шт.

12

A60213

RING

- seal, piston

4шт.

Part of seal kit P/N A42399.

1шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- cover seal (2-7/8 x 3-1/8 x 1/8")

4шт.

Part of seal kit P/N A42399.

1шт.

14

A59533

COVER

- end

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" NC hex

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

17

A57658

OIL SEAL

- oil, spindle (3-1/4 x 4-1/4 x 3/8")

1шт.

Part of seal kit P/N A42399.

1шт.

18

A64507

STEERING ARM

SPINDLE - actuator

1шт.

A42399

SEAL

KIT - Includes: Ref. 4, 11 - 13 and 17

1шт.

21

A60208

ACTUATOR

ASSEMBLY - steering, A60208 actuator used prior tractor s/n 8693001, Includes: Ref. 22 - 41

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

A60208 steering actuator used prior tractor S/N 8693001 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

23

A60218

COVER

- top, A60208 steering actuator used prior tractor s/n 8693001

1шт.

24

A60219

SEALING RING

O-RING - 4 x 4-17/64 x 9/64", A60208 steering actuator used prior tractor s/n 8693001

1шт.

Part of seal kit P/N A42399.

1шт.

25

A60216

SNAP RING,#250, Ext

Ring, Snap, , washer, A60208 steering actuator used prior tractor s/n 8693001 #250, Ext

1шт.

26

A60215

WASHER

- thrust, A60208 steering actuator used prior tractor s/n 8693001

1шт.

27

A60209

HOUSING

ASSEMBLY - A60208 steering actuator used prior tractor s/n 8693001, Includes: Ref. 28 & 29

1шт.

28

A60210

BUSHING

- top, 2-1/2 x 2 - 11/16 x 1-23/64", A60208 steering actuator used prior tractor s/n 8693001

1шт.

29

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32", A60208 steering actuator used prior tractor s/n 8693001

1шт.

30

A64908

PISTON

- (Replaces A59285), A60208 steering actuator used prior tractor s/n 8693001

2шт.

31

A60212

O-RING

- 1-15/16 x 2-1/8 x 3/32", A60208 steering actuator used prior tractor s/n 8693001

4шт.

Part of seal kit P/N A42399.

1шт.

32

A60213

RING

- piston seal, A60208 steering actuator used prior tractor s/n 8693001

4шт.

Part of seal kit P/N A42399.

1шт.

33

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- 2-7/8 x 3-1/8 x 1/8", A60208 steering actuator used prior tractor s/n 8693001

4шт.

Part of seal kit P/N A42399.

1шт.

34

A59533

COVER

- end, A60208 steering actuator used prior tractor s/n 8693001

4шт.

35

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" NC hex, A60208 steering actuator used prior tractor s/n 8693001

16шт.

36

92-6

LOCK WASHER,3/8"

A60208 steering actuator used prior tractor s/n 8693001 3/8"

16шт.

37

A60217

SEAT

SEAL - ball, A60208 steering actuator used prior tractor s/n 8693001

2шт.

38

211-21

BALL

- 1" dia. steel, A60208 steering actuator used prior tractor s/n 8693001

1шт.

39

A34849

SHIM,.0105" Thk

A60208 steering actuator used prior tractor S/N 8693001 .0105" Thk

1шт.

39

A34390

SHIM,.0329" Thk

A60208 steering actuator used prior tractor S/N 8693001 .0329" Thk

1шт.

39

A34817

SHIM,.0149" Thk

(Replaces A34391), A60208 steering actuator used prior tractor S/N 8693001 .0149" Thk

1шт.

40

A57658

OIL SEAL

- oil, 3-1/4 x 4-1/4 x 3/8", A60208 steering actuator used prior tractor s/n 8693001

1шт.

Part of seal kit P/N A42399.

1шт.

41

A60214

SPINDLE - upper, A60208 steering actuator used prior tractor s/n 8693001

1шт.

On tractors with adjustable axles only, A64507 spindle can replace A60214 spindle and A59692 center steering arm, See Figure 286.

1шт.

A42399

SEAL

KIT - seal, Includes: Ref. 24, 31 - 33 and 40, A60208 steering actuator used prior tractor s/n 8693001

1шт.
