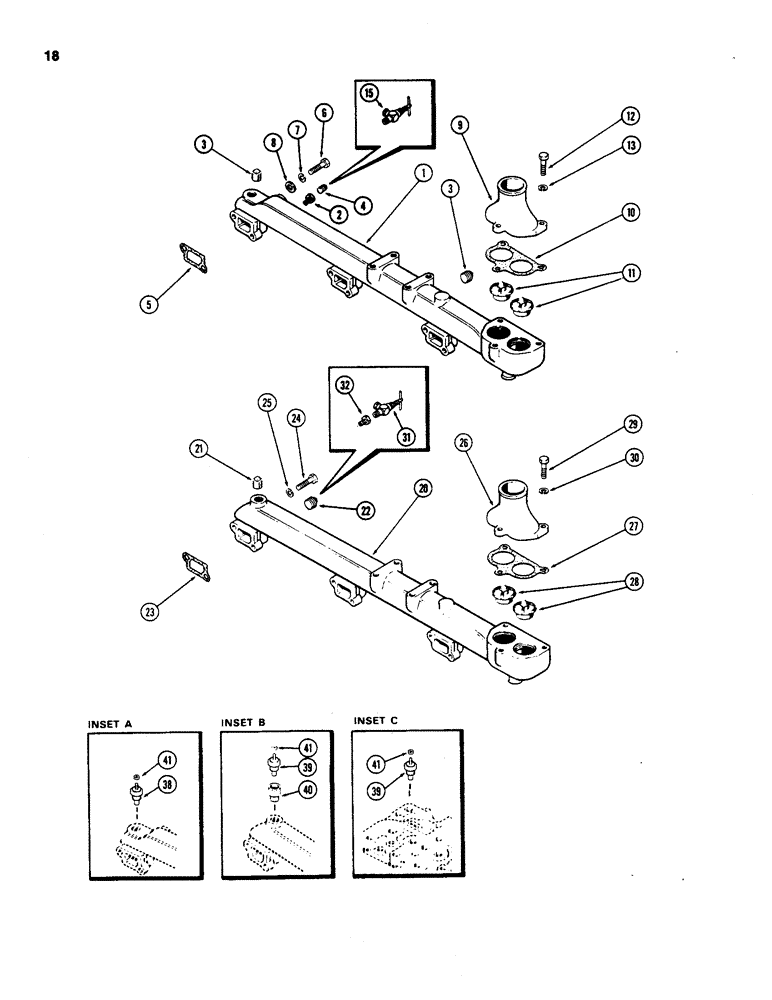

Запчасти Case IH 970 (018) - WATER MANIFOLD AND THERMOSTAT, (401B) DIESEL ENGINE, WITH ALUMINUM MANIFOLD (02) - ENGINE

A153152

MANIFOLD

ASSEMBLY - water (Replaces A44088), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water

1шт.

2

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing 1/2" to 3/8" pipe

1шт.

3

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2" hex.sckt.hd.

2шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" square head

1шт.

5

A58637

MANIFOLD GASKET

- water manifold

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

6шт.

9

A58638

HOUSING

- thermostat

1шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A57641

THERMOSTAT

- (180 deg.)

2шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

15

A16764

VALVE

- water manifold shutoff

1шт.

20

A60528

TUBE

MANIFOLD - water (Order A153152), cast iron

1шт.

21

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd., cast iron manifold

1шт.

22

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" hex. sckt. hd., cast iron manifold

3шт.

23

A58637

MANIFOLD GASKET

- water manifold, cast iron

3шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex., cast iron manifold

3шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Cast iron manifold Hex, 3/8"-16 x 2", G5

3шт.

25

92-6

LOCK WASHER,3/8"

cast iron manifold 3/8"

6шт.

26

A58638

HOUSING

- thermostat, cast iron manifold

1шт.

27

A58639

GASKET

- thermostat housing, cast iron manifold

1шт.

28

A57641

THERMOSTAT

- (180deg.), cast iron manifold

2шт.

29

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cast iron manifold Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

30

92-6

LOCK WASHER,3/8"

cast iron manifold 3/8"

3шт.

31

A16764

VALVE

- heater shut off, cast iron manifold

1шт.

32

221-1059

BUSHING - reducer, 3/4 to 3/8", cast iron manifold

1шт.

38

A66733

TRANSMITTER

UNIT - sending, engine temp. (1/2" N.P.T.F.) (in aluminum water manifold) (See Inset A)

1шт.

39

A61787

TRANSMITTER

UNIT - sending, engine temp. (3/8" N.P.T.F.) (in cyl. head and cast iron water manifold) (See Insets B and C)

1шт.

40

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8" (used w/cast iron water manifold) (See Inset B), temperature sending units

1шт.

41

193-1000

NUT,Keps, w/LW,#10-32

- sending unit, #10 N.F. hex. brass, temperature

1шт.
