Запчасти Case IH 970 (264) - STEERING PUMP UPPER COVER AND SEALS, FIRST USED TRACTOR SERIAL NUMBER 8780941 USED W/ A141904 PUMP (05) - STEERING

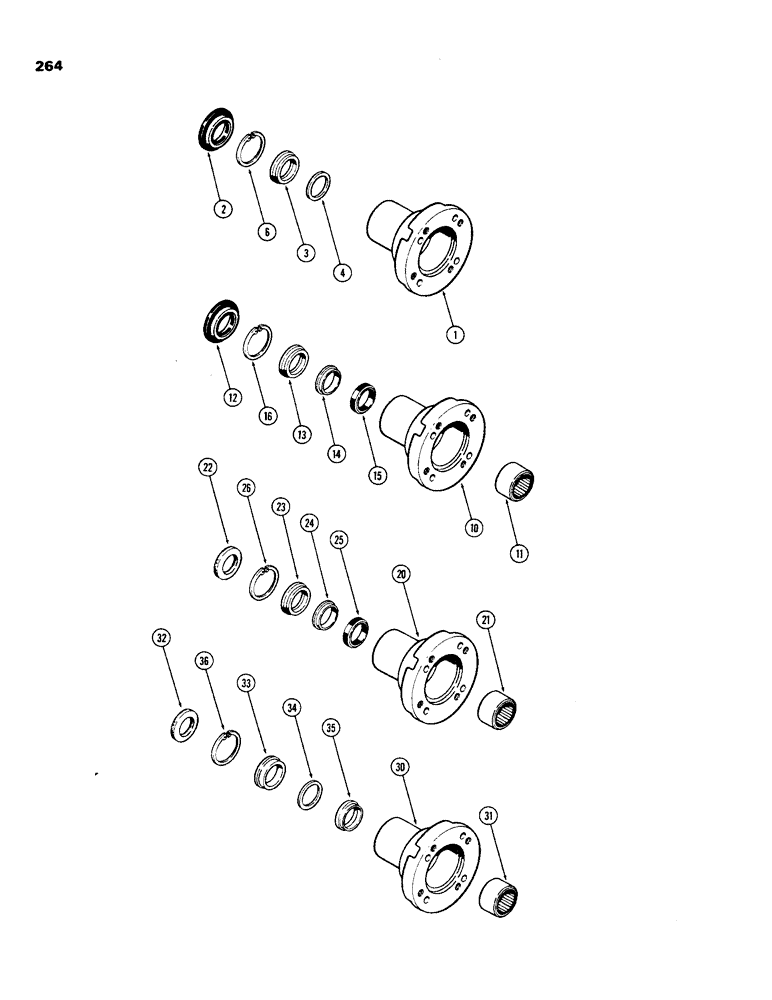

Схема запчастей Case IH 970 - (264) - STEERING PUMP UPPER COVER AND SEALS, FIRST USED TRACTOR SERIAL NUMBER 8780941 USED W/ A141904 PUMP (05) - STEERING
6
16
15
30
1
3
32
25
36
20
24
34
21
13
4
11
14
35
2
23
12
26
33
10
31
22

Артикул

Название

Примечание

Количество

1

D65139

COVER

ASSEMBLY - upper (Replaces A43562)

1шт.

A47038

SEAL KIT,Pump Shaft

KIT - seal, shaft (Replaces A45272 and A45535), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - dirt (plastic)

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - pump shaft

1шт.

6

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer

1шт.

10

A43562

ASSEMBLY - upper (Order D65139), used tractor s/n 8727973 to 8786013, used with A66389 pump, Includes: Ref. 11

1шт.

11

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, used tractor s/n 8727973 to 8786013, used with A66389 pump

1шт.

A45272

KIT

- seal, shaft (Replaces A44582) (Order A45535), used tractor s/n 8727973 to 8786013, used with A66389 pump, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - dirt (plastic), used tractor s/n 8727973 to 8786013, used with A66389 pump

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - seal, used tractor s/n 8727973 to 8786013, used with A66389 pump

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, used tractor s/n 8727973 to 8786013, used with A66389 pump

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, used tractor s/n 8727973 to 8786013, used with A66389 pump

1шт.

16

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, used tractor s/n 8727973 to 8786013, used with A66389 pump

1шт.

20

A43562

ASSEMBLY - upper (Order D65139), used tractor s/n 8693001 to 8727973, used w/ A64500 pump, Includes: Ref. 21

1шт.

21

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, used tractor s/n 8693001 to 8727973, used w/ A64500 pump

1шт.

A44582

REPAIR KIT

KIT - seal, shaft (Order A45535), used tractor s/n 8693001 to 8727973, used w/ A64500 pump, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - felt, used tractor s/n 8693001 to 8727973, used w/ A64500 pump

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - seal, used tractor s/n 8693001 to 8727973, used w/ A64500 pump

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - shaft, used tractor s/n 8693001 to 8727973, used w/ A64500 pump

1шт.

25

NSS

NOT SOLD SEPARAT

RING - shaft seal, used tractor s/n 8693001 to 8727973, used w/ A64500 pump

1шт.

26

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, used tractor s/n 8693001 to 8727973, used with A64500 pump

1шт.

30

A43562

ASSEMBLY - upper (Order D65139), used prior to tractor s/n 8693001, used w/ A60202 pump, Includes: Ref. 31

1шт.

31

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, used prior to tractor s/n 8693001, used w/ A60202 pump

1шт.

A40624

SEAL

KIT - seal, drive shaft, used prior to tractor s/n 8693001, used w/ A60202 pump, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - felt, used prior to tractor s/n 8693001, used w/ A60202 pump

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - spacer, used prior to tractor s/n 8693001, used w/ A60202 pump

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - back-up, used prior to tractor s/n 8693001, used w/ A60202 pump

1шт.

35

NSS

NOT SOLD SEPARAT

PACKING - shaft, used prior to tractor s/n 8693001, used w/ A60202 pump

1шт.

36

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, used prior to tractor s/n 8693001, used with A60202 pump

1шт.

Выбрано товаров: 30
