Запчасти Case IH 970 (260) - A64500 STEERING PUMP, USED TRACTOR SERIAL NUMBER 8693001 TO 8727973 (05) - STEERING

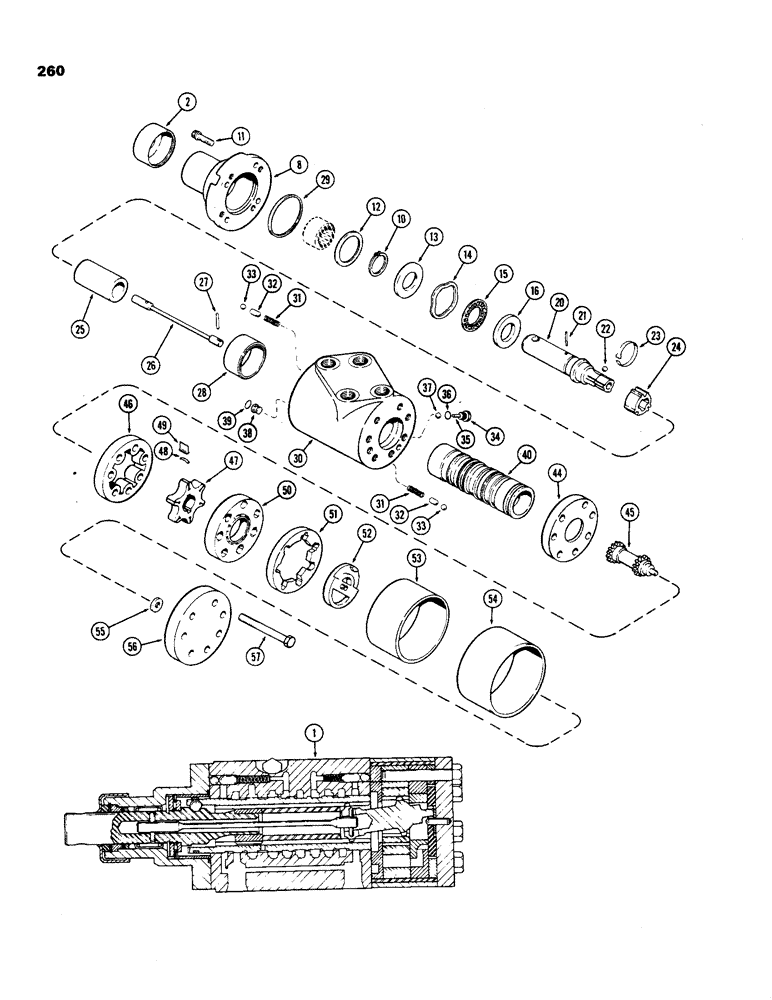

Схема запчастей Case IH 970 - (260) - A64500 STEERING PUMP, USED TRACTOR SERIAL NUMBER 8693001 TO 8727973 (05) - STEERING
47
55
33
52
45
21
22
32
16
10
26
51
50
44
32
28
53
1
14
24
38
11
33
8
13
31
37
31
27
54
23
35
40
30
49
29
39
36
25
56
15
48
46
12
34
20
57
2

Артикул

Название

Примечание

Количество

1

A64500

PUMP

ASSEMBLY - hydrostatic steering (Order A141904), Includes: Ref. 2 - 57

1шт.

2

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

SHIELD - shaft seal

1шт.

8

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY AND SEALS, See Figure 264

1шт.

10

A43720

RING

- snap, bearing retainer

1шт.

11

A43567

BOLT

- upper cover

4шт.

12

A44435

SHIM

KIT - shim, bearing (Replaces A43557)

1шт.

13

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

14

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring

1шт.

15

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover bearing

1шт.

16

F19634

BEARING WASHER

WASHER - thrust bearing

1шт.

20

A43551

SHAFT

- input

1шт.

21

D53297

PIN

- torsion bar shaft

1шт.

22

211-9

BALL,5/16" Dia

- 5/16" Dia

1шт.

23

A43560

SPRING

RETAINER - ball

1шт.

24

A43554

RING

- drive

1шт.

25

A43719

SPACER

- drive link (1-27/32" long)

1шт.

26

A43718

BAR

T-BAR ASSEMBLY - torsion (red tip), Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

28

A43728

SPACER

- shaft pre-load spring

1шт.

29

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

32

NSS

NOT SOLD SEPARAT

ROLLER - check spring

2шт.

33

211-8

BALL,9/32" Dia

3шт.

F82943

VALVE

KIT - relief plug, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG - (Order F82943)

1шт.

35

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

36

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

37

211-7

BALL,1/4" Dia

1шт.

38

A43565

PLUG

- port, body

1шт.

39

A43729

O-RING

- plug

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

44

A43569

BUSHING

PLATE - spacer

1шт.

45

A43568

LINK

- drive

1шт.

46

NSS

NOT SOLD SEPARAT

STATOR - (Order A43722)

1шт.

47

NSS

NOT SOLD SEPARAT

ROTOR - (Order A43722)

1шт.

A45188

ROTOR

SET - (Replaces A43722), Includes: Ref. 48 & 49

1шт.

48

A42219

SPRING

- vane

6шт.

49

NSS

NOT SOLD SEPARAT

VANE - pump (Order A43722)

6шт.

50

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSEMBLY, Includes: Ref. 51 & 52

1шт.

51

NSS

NOT SOLD SEPARAT

RING - commutator (Order A43574)

1шт.

52

NSS

NOT SOLD SEPARAT

COMMUTATOR - (Order A43574)

1шт.

53

A45001

SEAL

- rotor (Replaces A43725)

1шт.

54

A45278

RETAINER

- rotor seal

1шт.

55

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link

1шт.

56

A45182

COVER

- end, rotor

1шт.

57

A43727

BOLT

- end cover

7шт.

Выбрано товаров: 48
